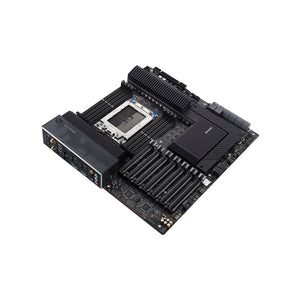

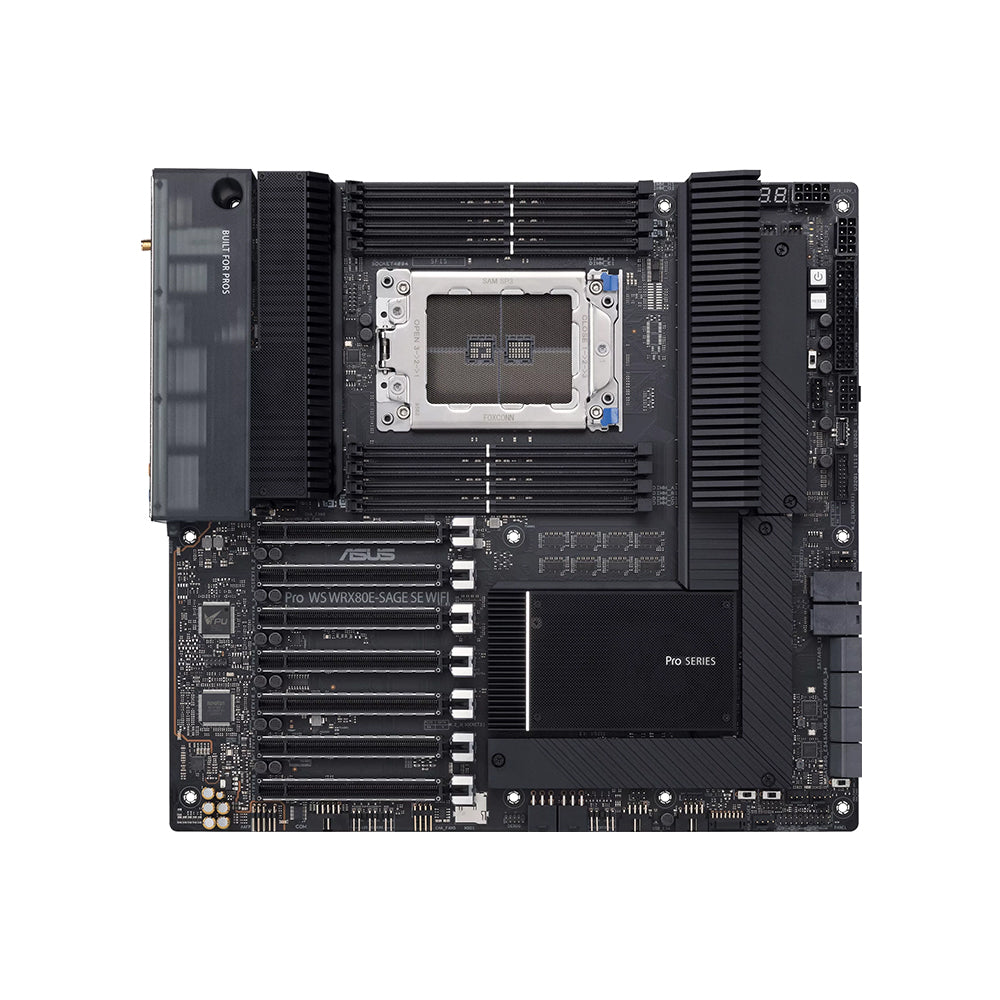

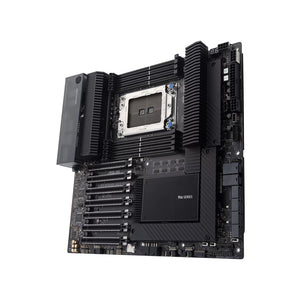

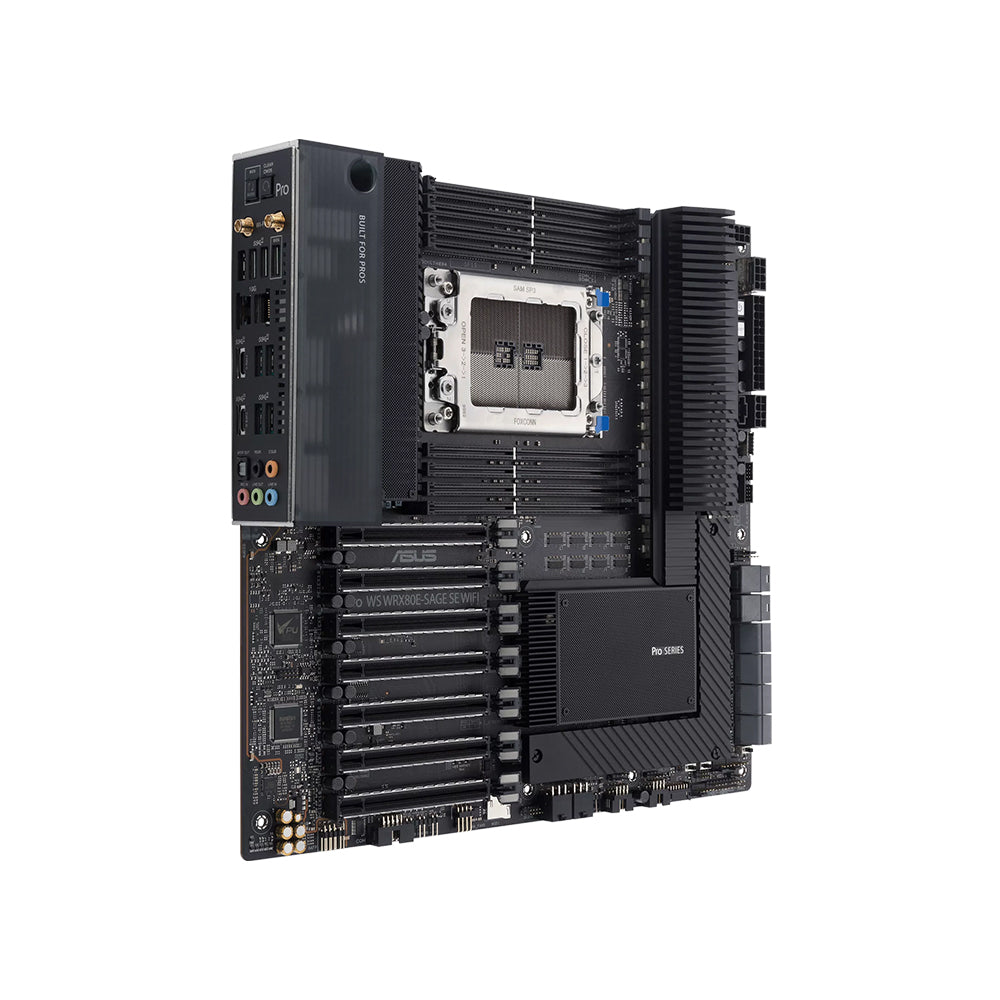

ASUS Pro WS WRX80E-SAGE SE WIFI Motherboard - sWRX8, AMD WRX80, DDR4, PCIe 4.0, Dual 10G LAN

The ASUS Pro WS WRX80E-SAGE SE WIFI motherboard is engineered to harness the incredible power of AMD Ryzen™ Threadripper™ PRO series processors, making it an ideal foundation for professional creative workloads such as video editing and 3D rendering. This extended-ATX workstation motherboard features the AMD WRX80 chipset and offers extensive connectivity options along with robust performance capabilities.

Key Features:

• Socket Type: sWRX8
• Chipset: AMD WRX80
• Form Factor: Extended ATX (E-ATX)

Memory Support:

• Slots: 8 x DIMM
• Maximum Capacity: Up to 2048GB
• Supported Memory Types: DDR4 (ECC and Non-ECC Unbuffered DIMM)
• Memory Architecture: 8-channel memory architecture for enhanced bandwidth.

Expansion Slots:

• 7 x PCIe 4.0 x16 slots with SafeSlot fortification for high-powered graphics cards and storage devices.

Storage Options:

• M.2 Slots:
  • 3 x M.2 slots (supports PCIe 4.0 x4 and SATA modes)
• SATA Ports: 8 x SATA III (6Gb/s) ports with RAID support.

Networking:

• LAN Controller: Intel® X550-AT2 dual 10G Ethernet for high-speed networking.
• Wi-Fi: Integrated Wi-Fi 6 AX200 for fast wireless connectivity.

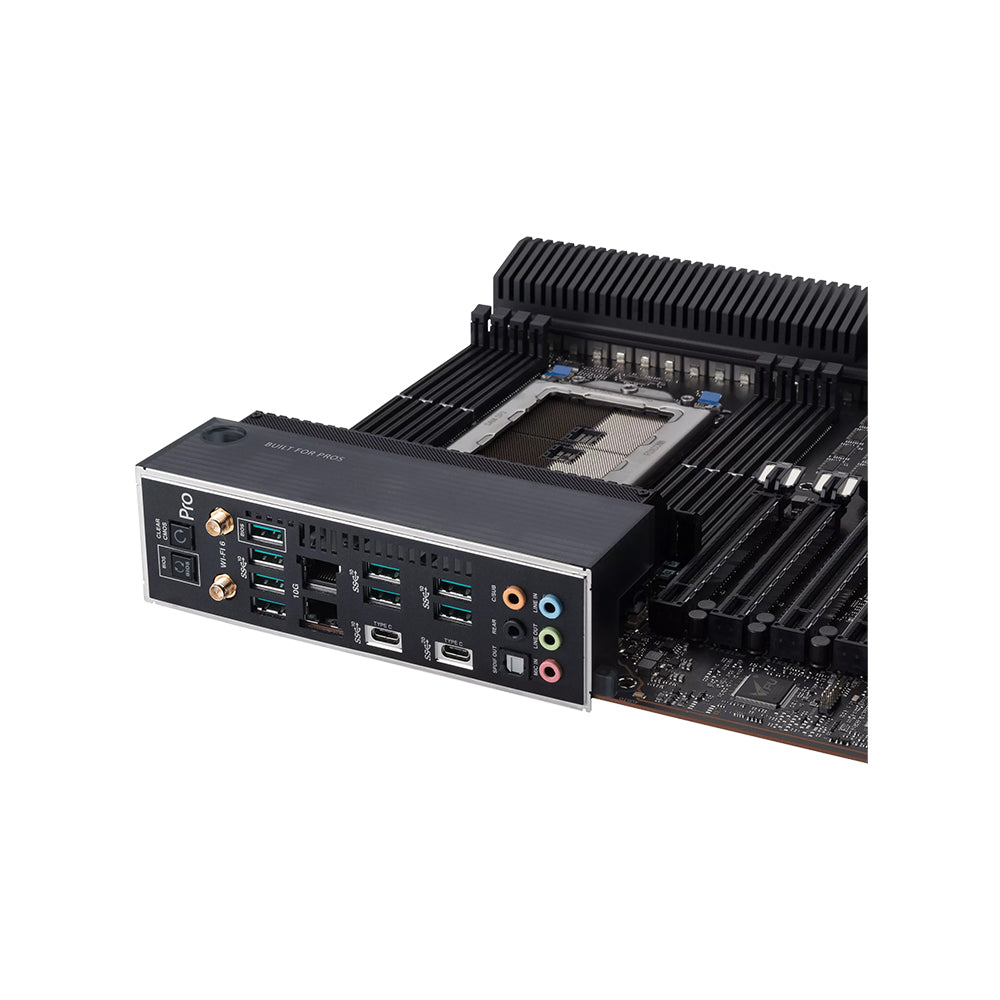

USB Connectivity:

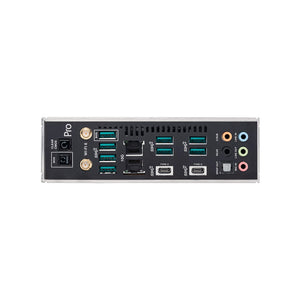

• Rear USB Ports:
  • 1 x USB 3.2 Gen 2x2 Type-C port (up to 20 Gbps)
  • 8 x USB 3.2 Gen 2 Type-A ports
• Front USB Ports:
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
  • Additional headers for extra USB ports.

Audio Features:

• Audio Codec: Realtek ALC4080 supporting up to 7.1-channel HD audio with high signal-to-noise ratios (120 dB SNR line-out, 113 dB SNR line-in).

Additional Features:

• Cooling Solutions: Dedicated heatsinks for M.2 slots to prevent thermal throttling.
• **BIOS Flashback and Clear CMOS buttons for easy system recovery and updates.
• **Crystal Sound technology with DTS:X® Ultra for an immersive audio experience.
