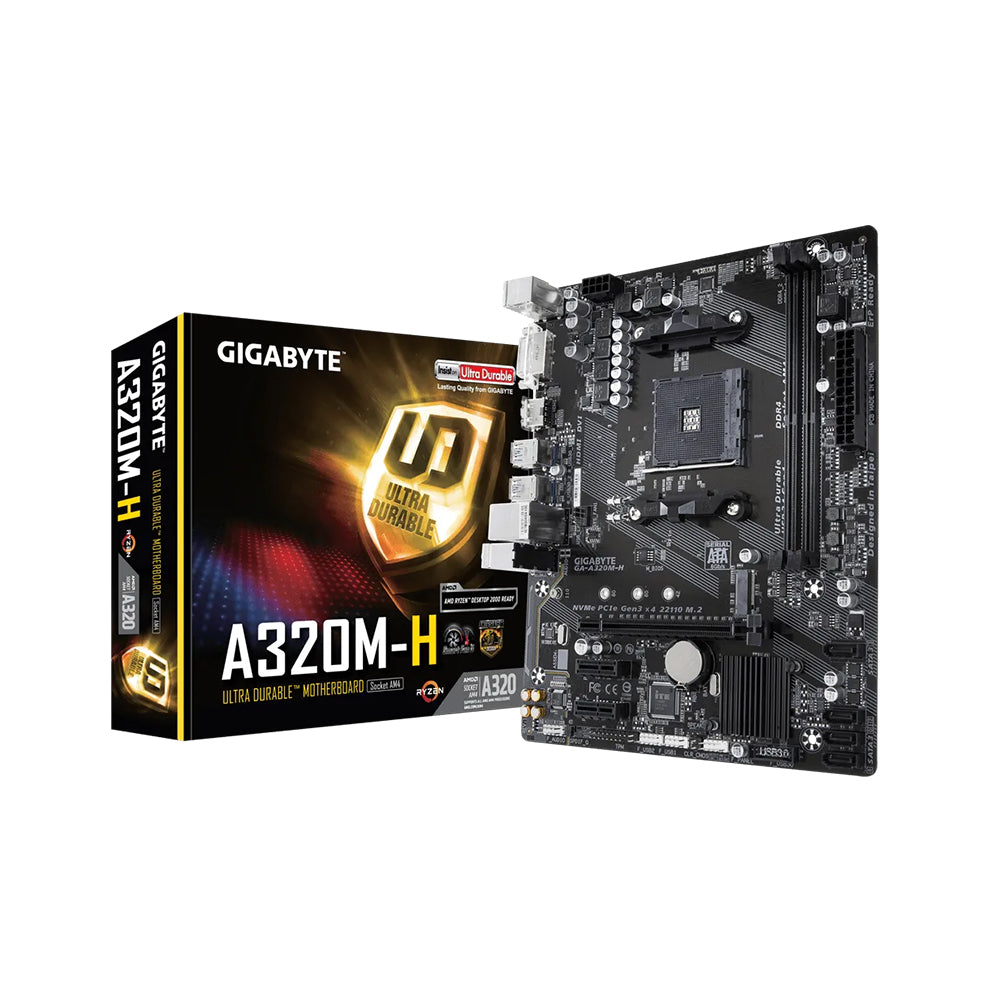

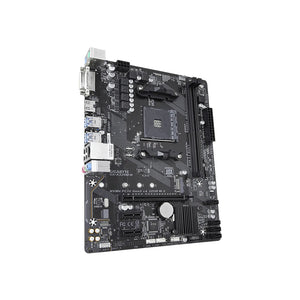

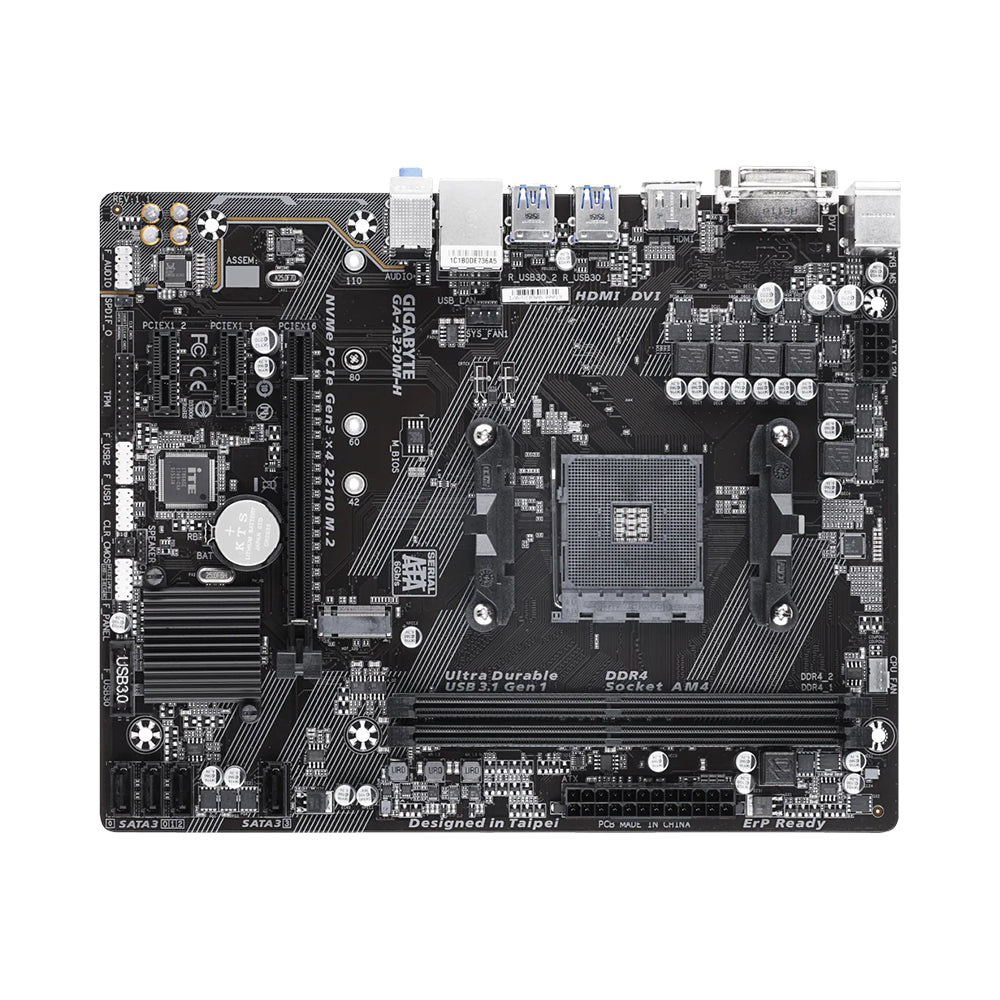

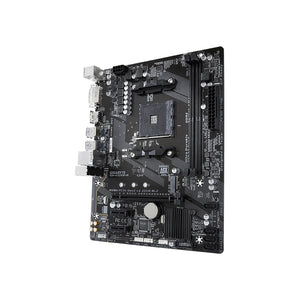

Gigabyte GA-A320M-H Motherboard - LGA AM4, AMD A320, DDR4, Micro ATX

The Gigabyte GA-A320M-H motherboard is designed for users looking to build a reliable and cost-effective system using AMD Ryzen processors. Built on the AMD A320 chipset, this Micro ATX motherboard supports a variety of AMD CPUs, making it suitable for both gaming and general-purpose computing.

Key Features:

• Socket Type: AM4
• Chipset: AMD A320
• Form Factor: Micro ATX (24.4 x 19.5 cm)

CPU Support:

• Supports AMD Ryzen™ 3000 Series, 5000 Series, 4000 G-Series, 3rd Generation Ryzen™, 2nd Generation Ryzen™, and Athlon™ processors with Radeon™ Vega Graphics.
• Backward compatible with 1st Generation Ryzen™ and 7th Generation A-series processors.

Memory Support:

• Slots: 2 x DIMM
• Maximum Capacity: Up to 64GB (32GB per DIMM)
• Supported Memory Types: DDR4 (up to 3200 MHz overclocked)
• Memory Architecture: Dual Channel Non-ECC Unbuffered.

Expansion Slots:

• 1 x PCIe 3.0 x16 slot for high-performance graphics cards.
• 1 x PCIe 2.0 x16 slot (operating at x4 mode).
• 2 x PCIe 2.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slot:
  • 1 x M.2 socket supporting PCIe NVMe and SATA modes.
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, and 10).

Networking:

• LAN Controller: Realtek® Gigabit LAN for reliable wired connectivity.

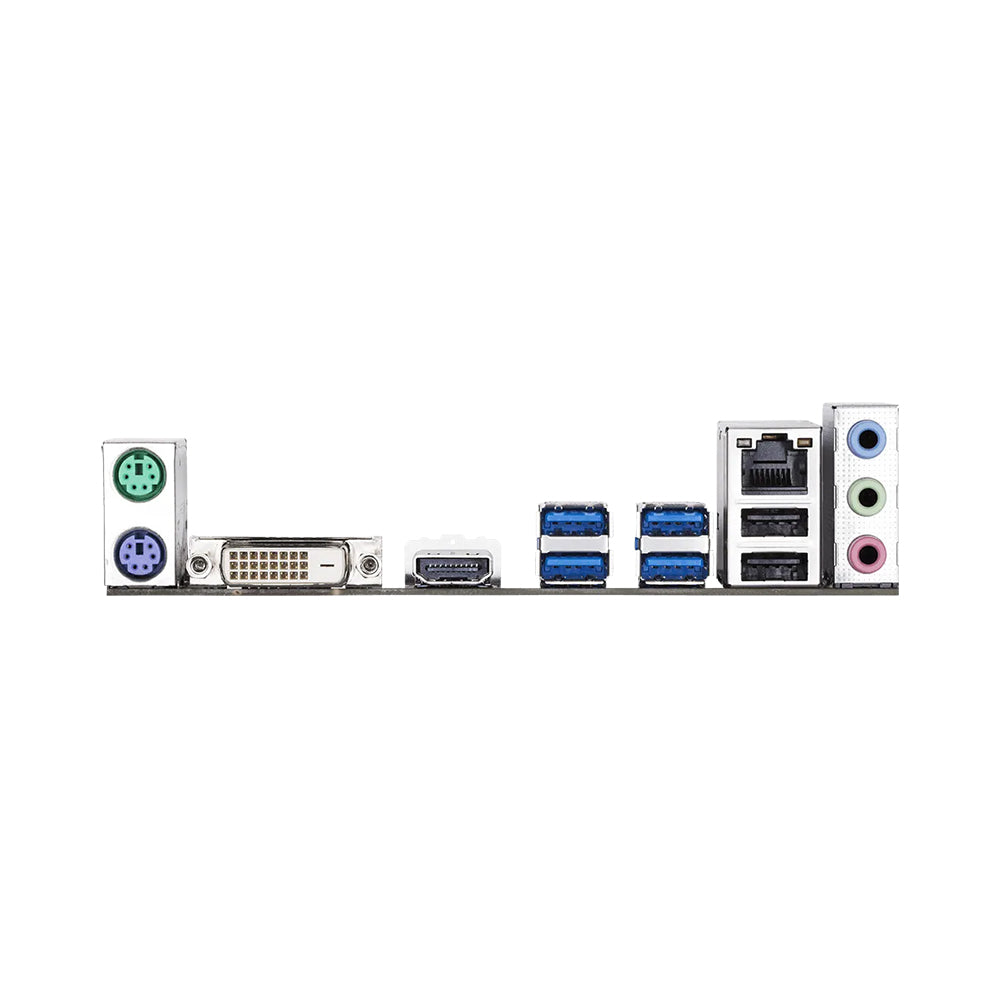

Video Outputs:

• Supports integrated graphics with:
  • 1 x DVI-D port (up to 1920×1200@60 Hz).
  • 1 x HDMI port (up to 4096×2160@24 Hz).

USB Connectivity:

• Multiple USB ports including:
  • 4 x USB 3.1 Gen 1 ports.
  • 2 x USB 2.0/1.1 ports.

Audio Features:

• Audio Codec: Realtek® ALC887 supporting up to 7.1-channel high-definition audio.

Additional Features:

• Smart Fan 5: Features multiple temperature sensors and hybrid fan headers for optimized cooling.
• GIGABYTE UEFI BIOS: User-friendly interface for easy setup and configuration.
• GIGABYTE APP Center: Provides various utilities for system management and monitoring.
