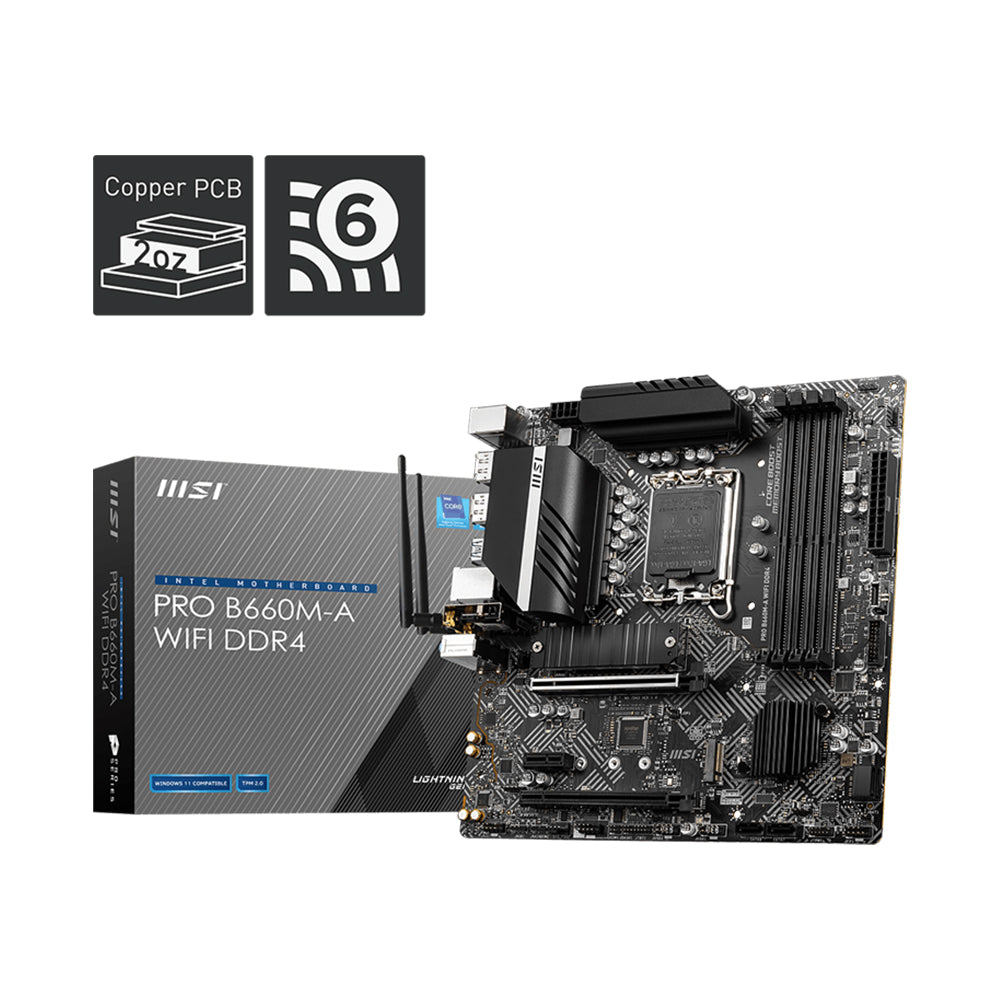

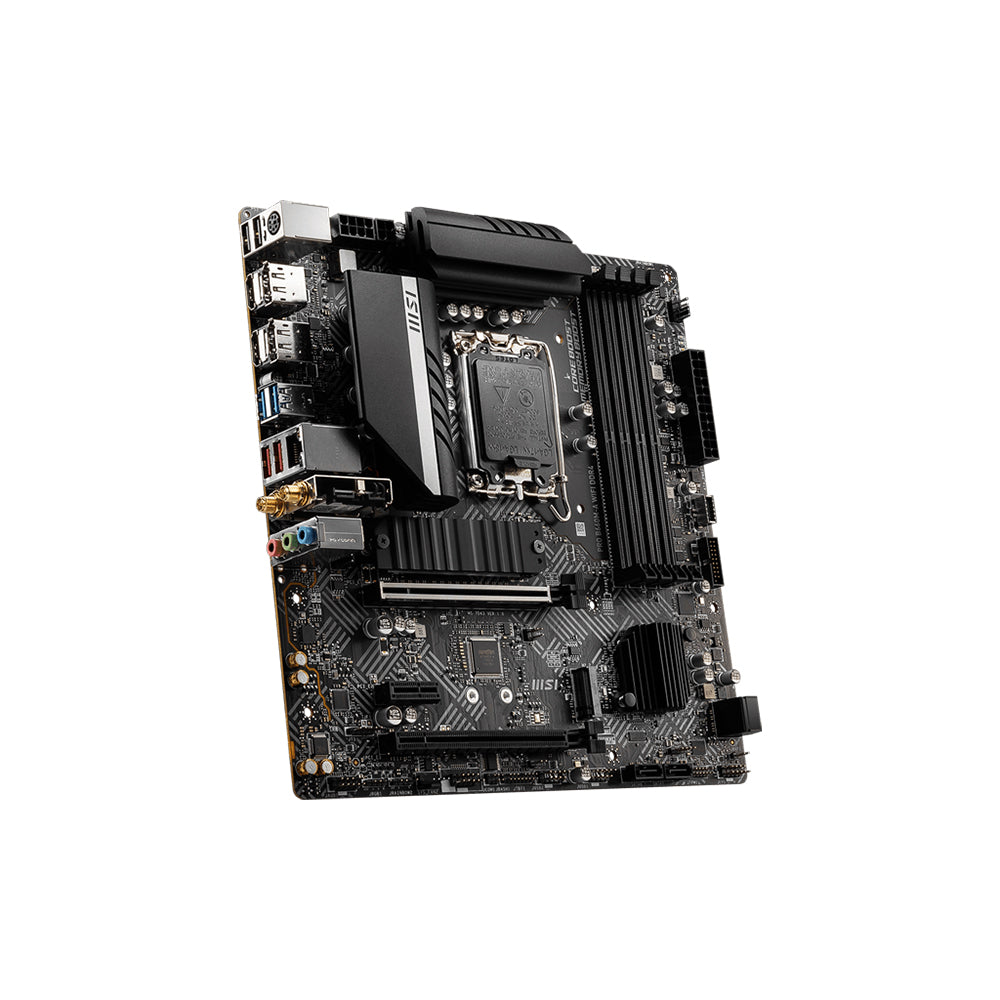

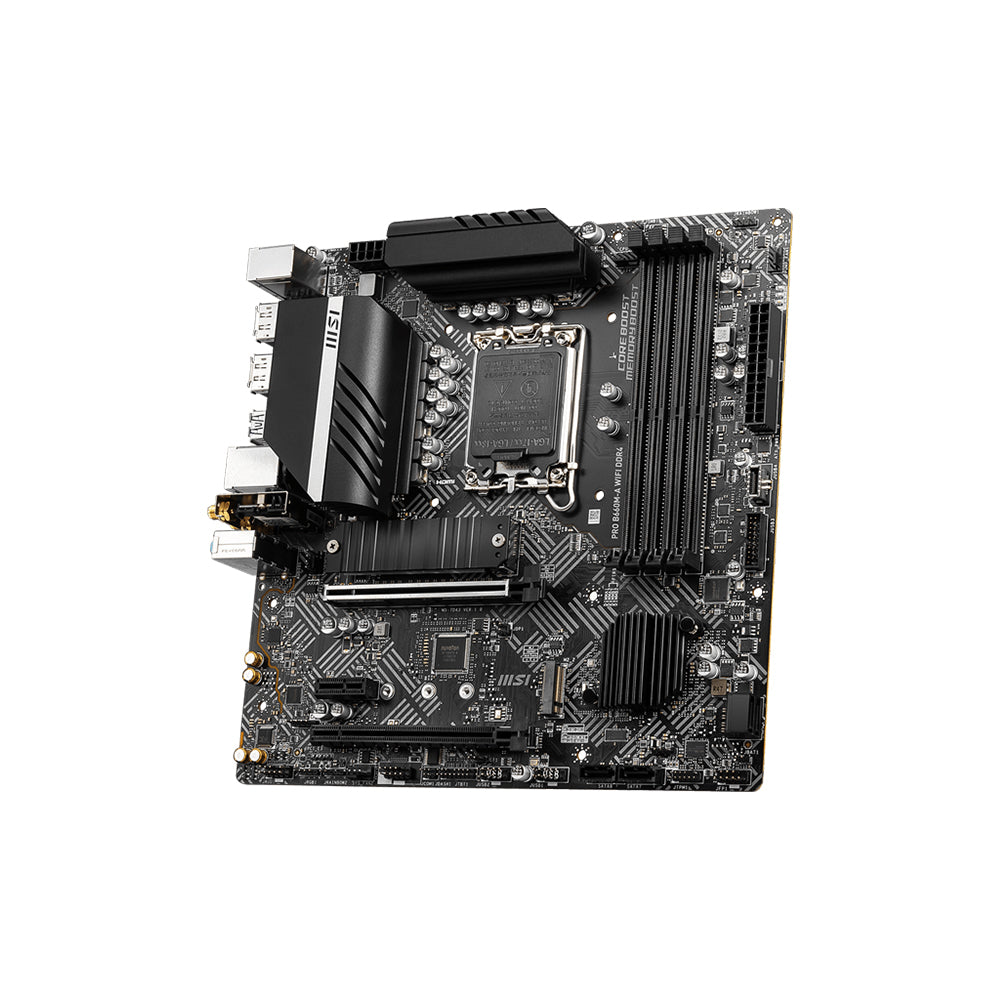

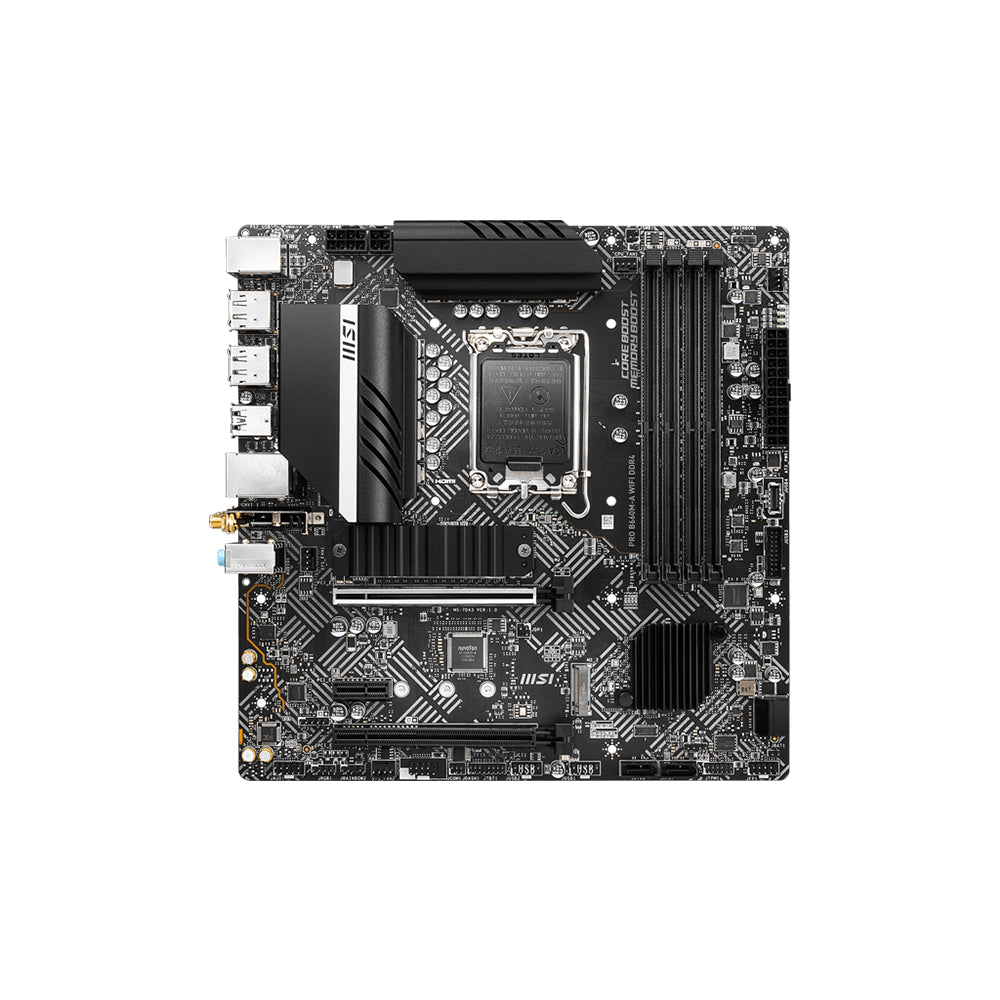

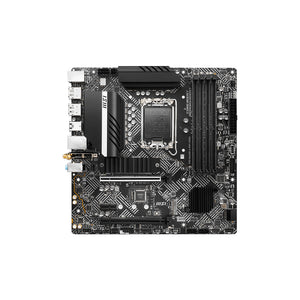

MSI PRO B660M-A WIFI DDR4 Motherboard - LGA 1700, DDR4, PCIe 4.0, Micro-ATX

The MSI PRO B660M-A WIFI DDR4 Motherboard is designed to provide a reliable and efficient platform for Intel's 12th and 13th Generation processors. This Micro-ATX motherboard features the Intel B660 chipset and is packed with features that cater to both gamers and productivity users.Key Features:

• Processor Compatibility:
  • Supports Intel® 12th and 13th Generation Core processors, Pentium Gold, and Celeron processors using the LGA 1700 socket.
• Chipset:
  • Intel B660 chipset for enhanced performance and features.
• Memory Support:
  • Slots: 4 x DDR4 DIMM slots
  • Maximum Capacity: Up to 128GB
  • Speed Support:
    • Supports DDR4 memory speeds of 2133/2666/3200 MHz (JEDEC & POR) with overclocking capabilities up to 5333+ MHz (1DPC 1R).
• Expansion Slots:
  • PCIe Slots:
    • 2 x PCIe 4.0 x16 slots (one from CPU, one from chipset)
    • 1 x PCIe 3.0 x1 slot.
• Storage Options:
  • M.2 Slots:
    • 2 x M.2 slots supporting PCIe Gen4 x4 and SATA for high-speed NVMe SSDs.
    • SATA Ports: 4 x SATA III (6Gb/s) ports for traditional storage solutions.
• Networking:
  • LAN Controller: Realtek® RTL8125BG with a 2.5Gbps LAN for reliable wired connectivity.
  • Wi-Fi & Bluetooth: Integrated Intel® Wi-Fi 6 module for fast wireless connections.
• Audio Features:
  • Realtek® ALC897 Codec providing high-definition audio quality with support for up to 7.1-channel audio.

Advanced Features

• Core Boost Technology:
  • Premium layout and digital power design that supports higher core counts for improved performance.
• M.2 Shield Frozr Technology:
  • Protects M.2 SSDs from thermal throttling, ensuring optimal performance during intensive tasks.
• RAID Support:
  • Supports RAID configurations (RAID 0, RAID 1, RAID 5, RAID 10) for SATA storage devices.

Design and Build Quality

The PRO B660M-A WIFI features a compact Micro-ATX form factor, ensuring efficient heat dissipation while providing ample space for high-performance components. Its durable construction ensures stability and longevity in demanding environments.
