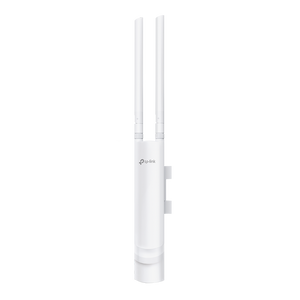

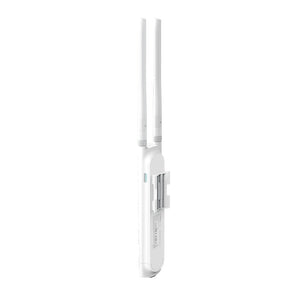

TP-Link EAP110 Outdoor 300Mbps Wireless N Access Point

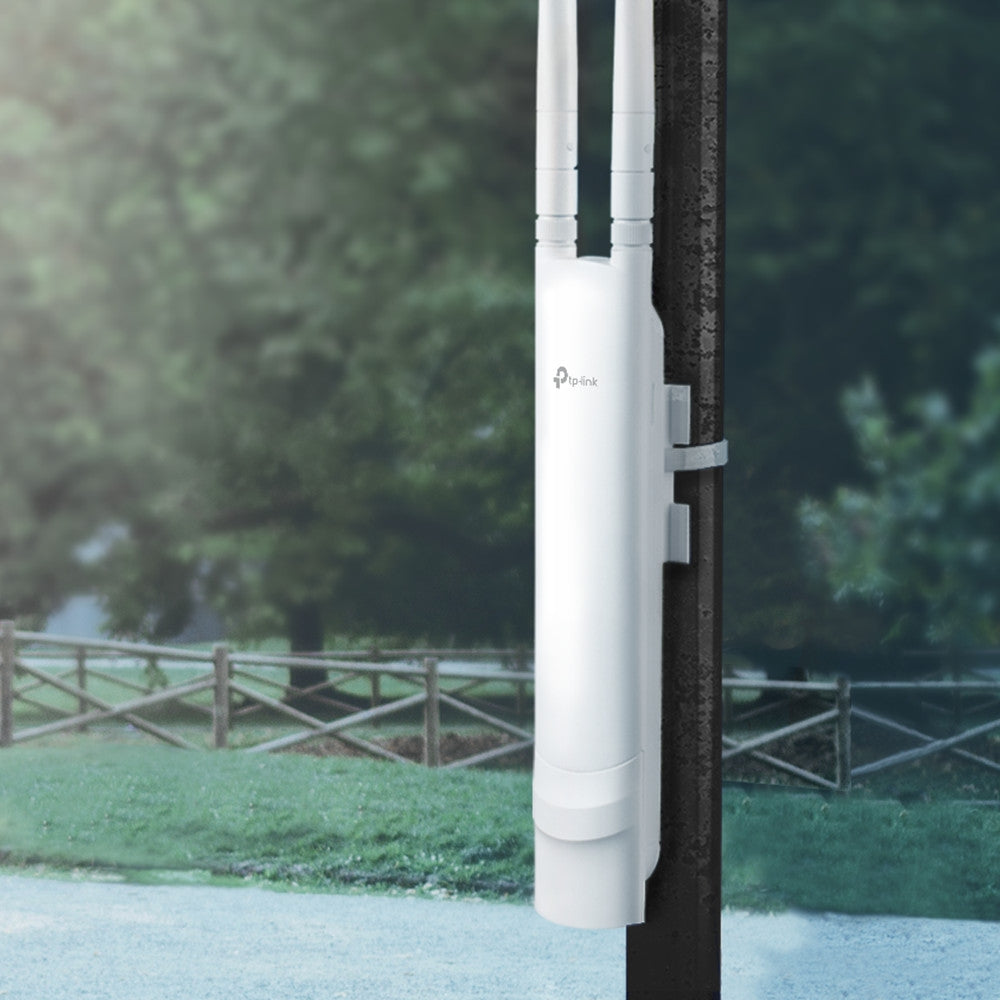

The TP-Link EAP110 is a robust 300Mbps Wireless N outdoor access point designed to extend Wi-Fi coverage in outdoor environments such as parks, campuses, and public spaces. With its durable design and advanced features, the EAP110 provides reliable connectivity for various outdoor applications.

Key Features

• High-Speed Wireless Performance:
  • Operates on the 2.4GHz band, delivering wireless speeds of up to 300Mbps using 2×2 MIMO technology, ensuring stable connections for multiple users.
• Weatherproof Design:
  • The IP65-rated enclosure protects against dust and water, making it suitable for harsh outdoor conditions while ensuring continuous service.
• Long-Range Coverage:
  • Equipped with high transmission power and two high-gain omnidirectional antennas, the EAP110 provides stable wireless coverage at distances of up to 200 meters in outdoor settings.
• Power over Ethernet (PoE) Support:
  • Supports 24V Passive PoE, allowing for flexible installation without the need for additional power sources. This feature simplifies deployment by enabling power and data to be transmitted over a single cable.
• Centralized Management:
  • Compatible with TP-Link’s Omada Controller, enabling centralized management for monitoring and configuration of multiple access points from a single interface.
• Multiple SSIDs and VLAN Support:
  • Allows the creation of up to 8 SSIDs, facilitating network segmentation for different user groups. It also supports VLAN tagging for enhanced network management.
• Advanced Security Features:
  • Includes multiple security protocols such as WPA/WPA2, MAC address filtering, and rogue AP detection to ensure secure wireless access.

Technical Specifications

• Model: TP-Link EAP110
• Wireless Standards: IEEE 802.11n/g/b
• Frequency: 2.4GHz
• Signal Rate: Up to 300Mbps
• Transmit Power:
  • CE: ≤20dBm (EIRP)
  • FCC: ≤22dBm
• Ports:

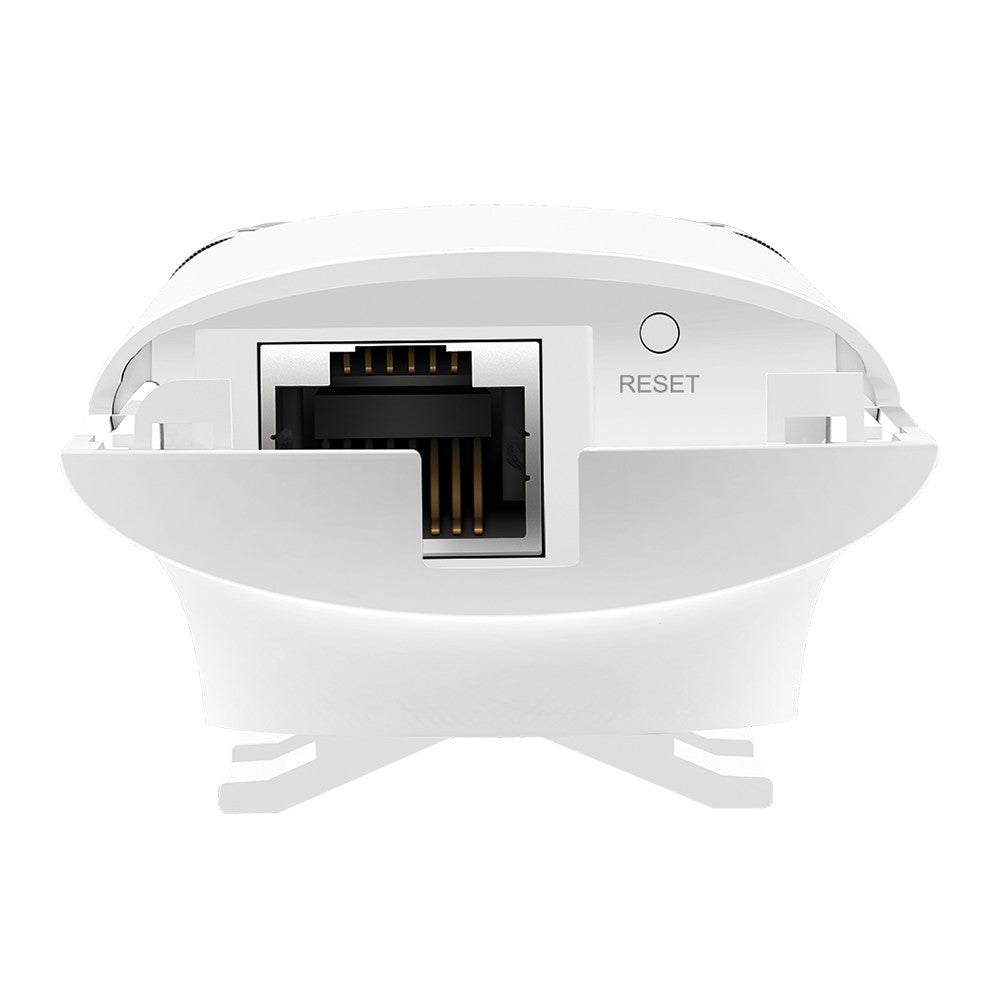

  • 1 x Fast Ethernet (RJ-45) port (supports Passive PoE)
• Power Supply:
  • Passive PoE (+4,5 pins; -7,8 pins), PoE adapter included
• Power Consumption:
  • Maximum of 3.12 Watts
• Dimensions:

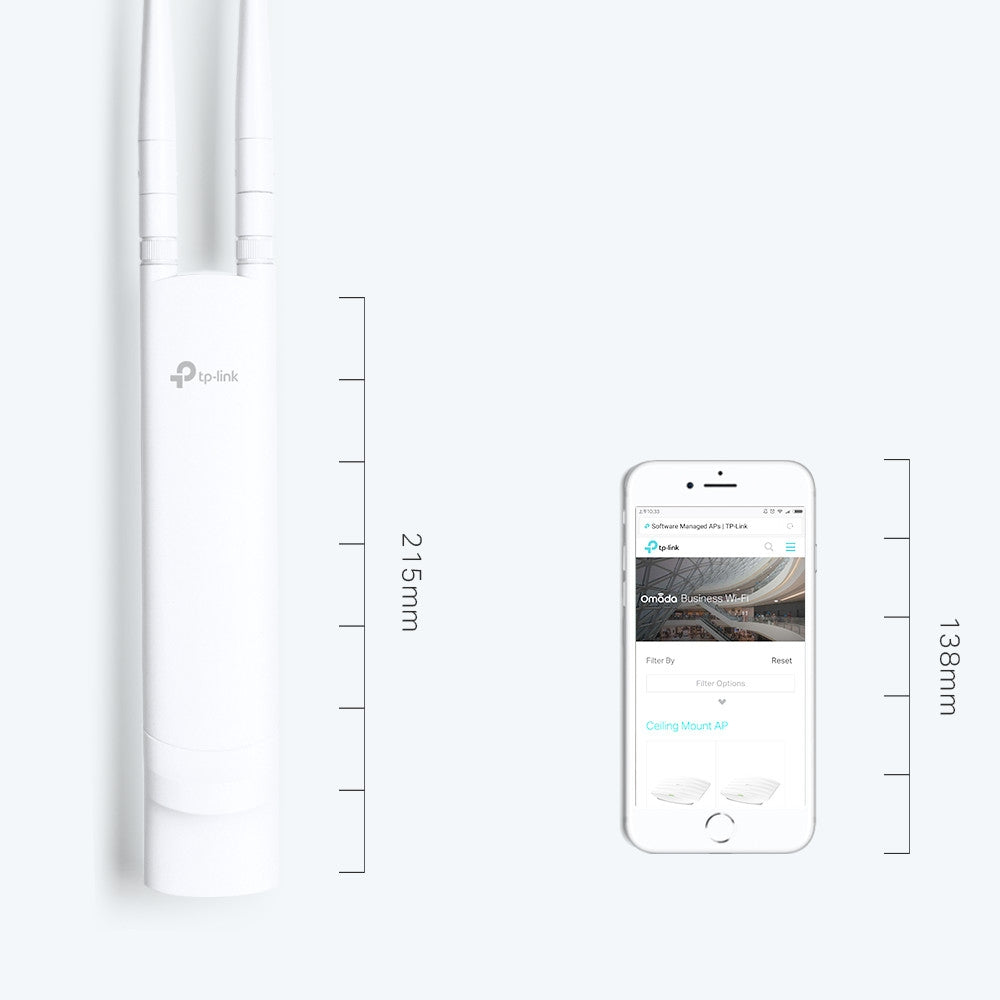

  • Approximately 215 x 46 x 27 mm (8.5 x 1.8 x 1.1 in)
