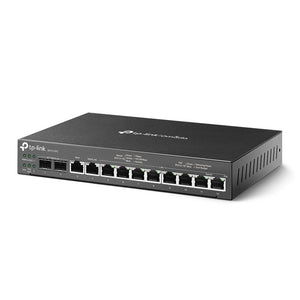

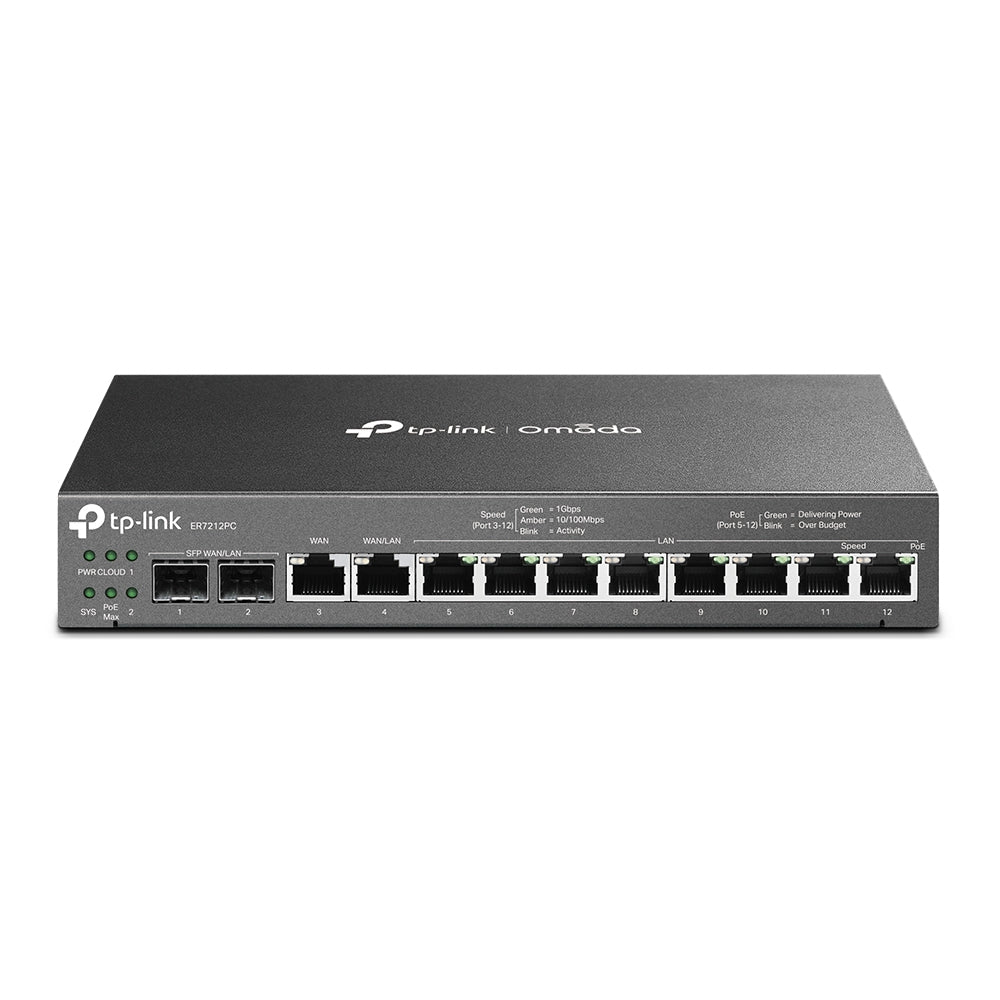

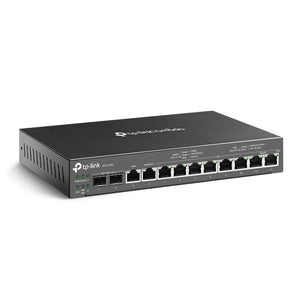

TP-Link ER7212PC Omada 3-in-1 Gigabit VPN Router

The TP-Link ER7212PC is a versatile 3-in-1 gigabit VPN router that integrates the functionalities of a router, PoE switch, and Omada controller. This device is designed for small to medium-sized businesses, offering robust performance and extensive features for managing network traffic efficiently.

Key Features

• 3-in-1 Functionality:
  • Combines a VPN router, PoE switch, and Omada controller into a single device, simplifying network management and reducing hardware requirements.
• Power over Ethernet (PoE):
  • Supports 8 PoE+ ports with a total power budget of 110W, allowing for easy deployment of PoE devices such as IP cameras and access points without needing additional power sources.
• Multiple WAN Ports:
  • Equipped with up to 4 WAN ports (2 x Gigabit SFP and 2 x Gigabit RJ45), enabling load balancing and redundancy to optimize bandwidth usage.
• High Performance:
  • Powered by a Dual-Core 1.2 GHz CPU with 1GB DDR3 RAM, capable of handling up to 25,000 concurrent sessions and delivering NAT throughput of up to 940 Mbps.
• Fanless Design:
  • The fanless chassis ensures quiet operation, making it suitable for office environments.

Technical Specifications

• Model: TP-Link ER7212PC
• Ports:
  • 2 x Gigabit SFP WAN/LAN ports
  • 1 x Gigabit RJ45 WAN port
  • 1 x Gigabit RJ45 LAN/WAN port
  • 8 x Gigabit LAN ports
• Power Supply:
  • Input: 53.5V DC / 2.43A
• Dimensions:
  • Approximately 226 x 131 x 35 mm (8.9 x 5.2 x 1.4 in).
• Operating Temperature:
  • Ranges from 0°C to +45°C (32°F to +113°F).
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F).
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing.

Performance Metrics

• NAT Throughput:
  • Up to 940 Mbps
• IPsec VPN Throughput:
  • Up to 169 Mbps
• Concurrent Sessions:
  • Supports up to 25,000 sessions
