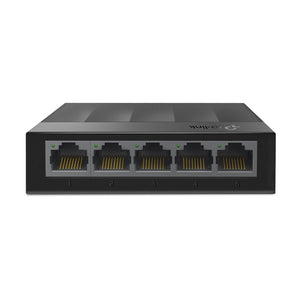

TP-Link LS1005G 5-Port Gigabit Desktop Switch

The TP-Link LS1005G is a reliable 5-port Gigabit desktop switch designed to efficiently expand your wired network. With its plug-and-play functionality and energy-efficient design, this unmanaged switch is ideal for home or small office environments.

Key Features

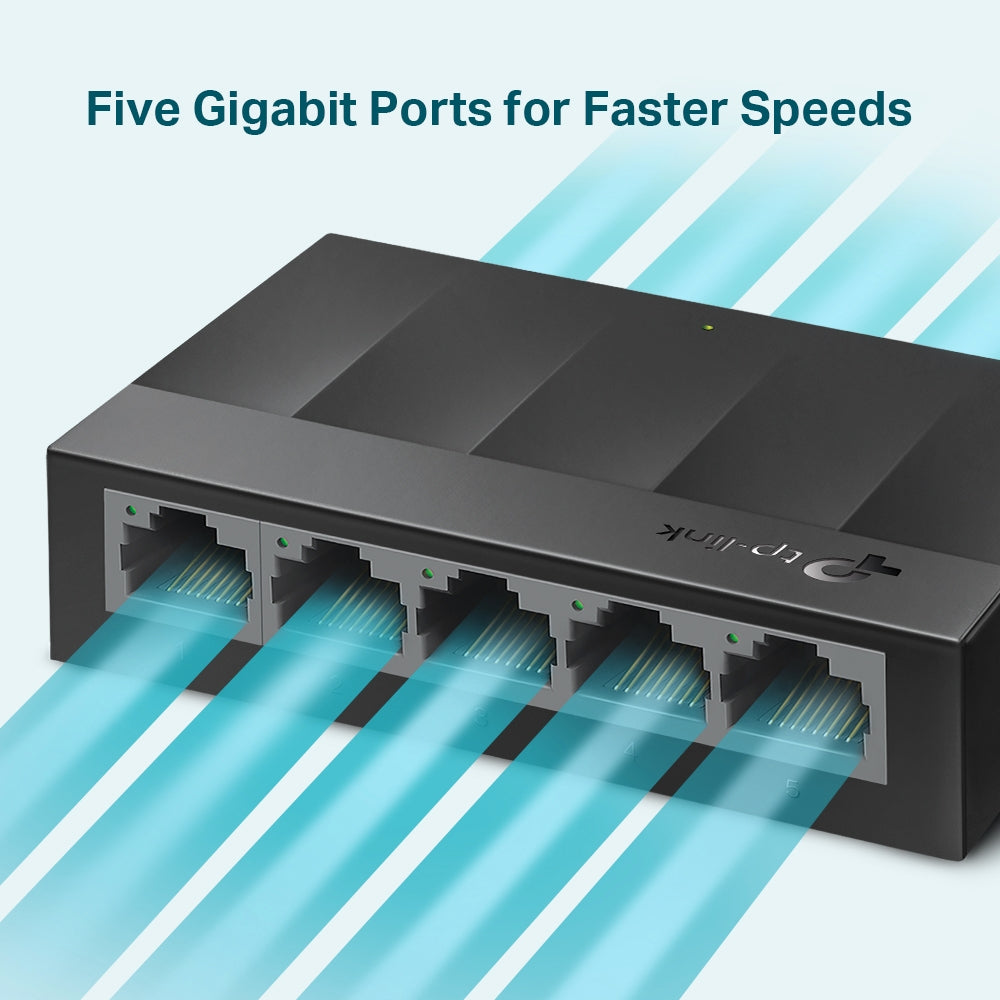

• 5 Gigabit Ports:
  • Equipped with 5 x 10/100/1000Mbps RJ45 ports, supporting auto-negotiation and Auto-MDI/MDIX, allowing for easy connection without the need for crossover cables.

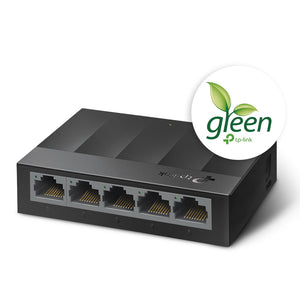

• Energy-Efficient Design:
  • Utilizes Green Ethernet technology that automatically adjusts power consumption based on link status and cable length, helping to reduce energy costs.

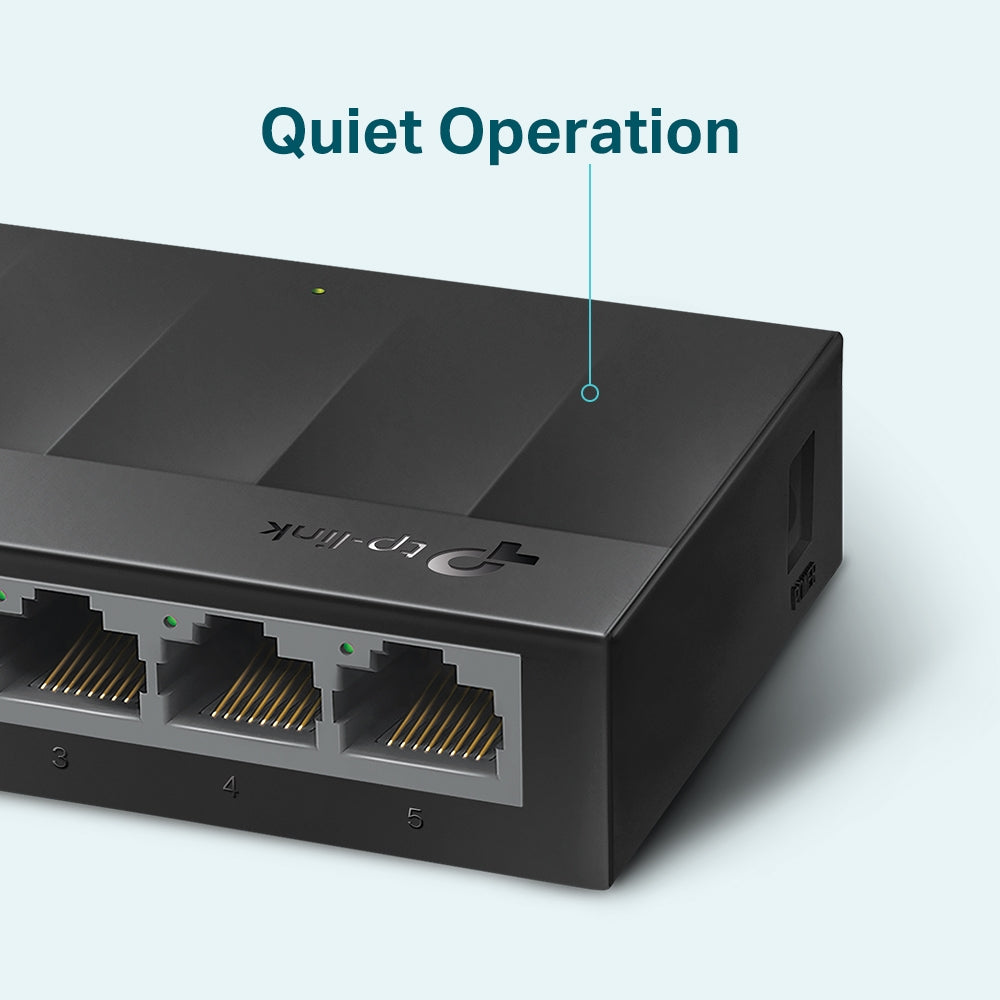

• Fanless Operation:
  • The fanless design ensures quiet operation, making it suitable for noise-sensitive environments.
• Plug and Play Installation:
  • Simple setup with no configuration required; just connect your devices and start using the network immediately.
• Reliable Performance:
  • Supports IEEE 802.3X flow control for stable data transfer, ensuring efficient communication between connected devices.

Specifications

• Model: TP-Link LS1005G
• Ports:
  • 5 x 10/100/1000Mbps Auto-Negotiation RJ45 ports
• Power Supply:
  • External power adapter (Output: 5V DC / 0.6A)
• Dimensions:
  • Approximately 90 x 72 x 23 mm (3.5 x 2.8 x 0.9 in)
• Max Power Consumption:
  • 3.7W

Performance

• Switching Capacity:
  • Up to 10 Gbps
• Packet Forwarding Rate:
  • Up to 7.4 Mpps
• MAC Address Table:
  • Supports up to 2K MAC addresses
• Packet Buffer Memory:
  • Approximately 1.5 MB
• Jumbo Frame Support:
  • Up to 16 KB

Connectivity Features

• Standards Supported:
  • Compliant with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x.

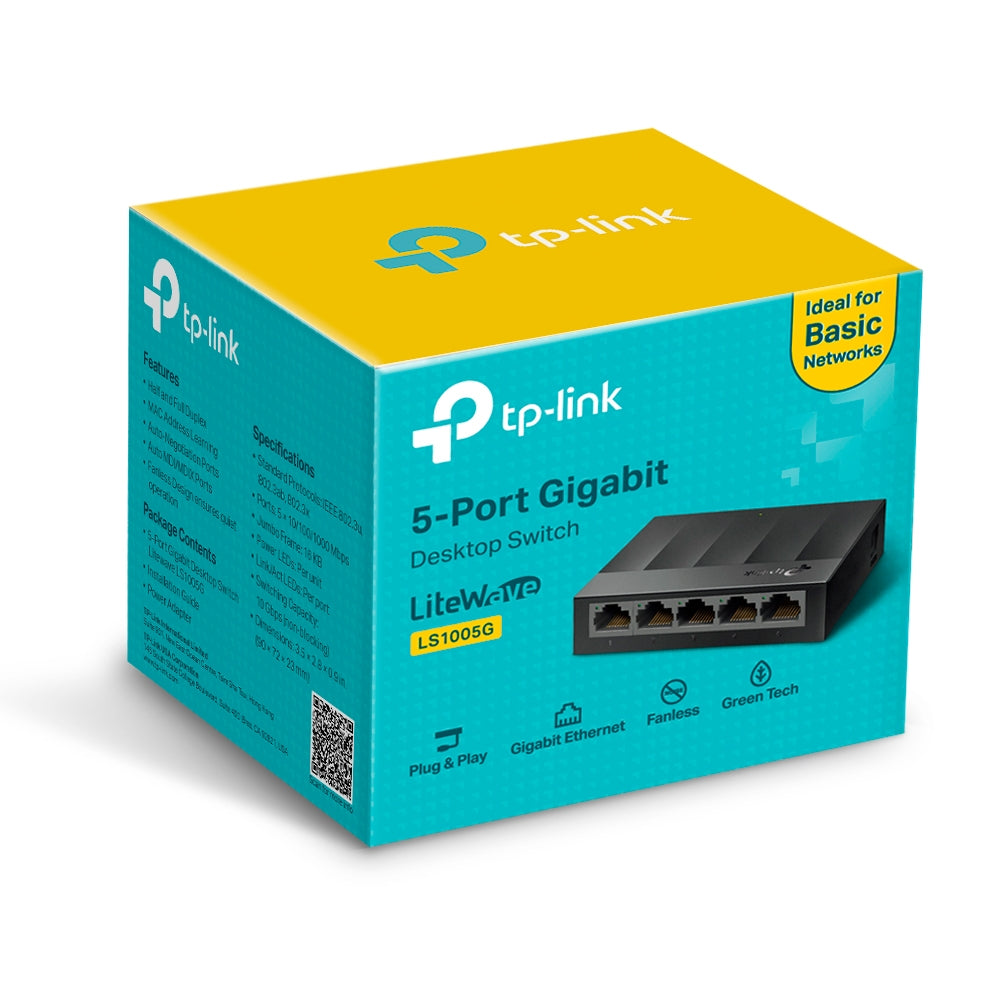

Package Contents

• TP-Link LS1005G Switch
• Power Adapter
• Quick Installation Guide
