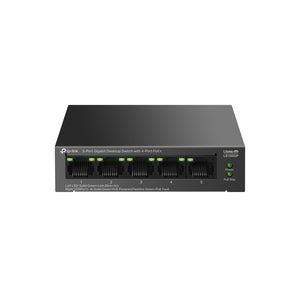

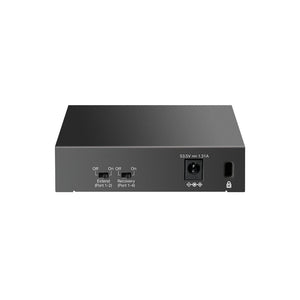

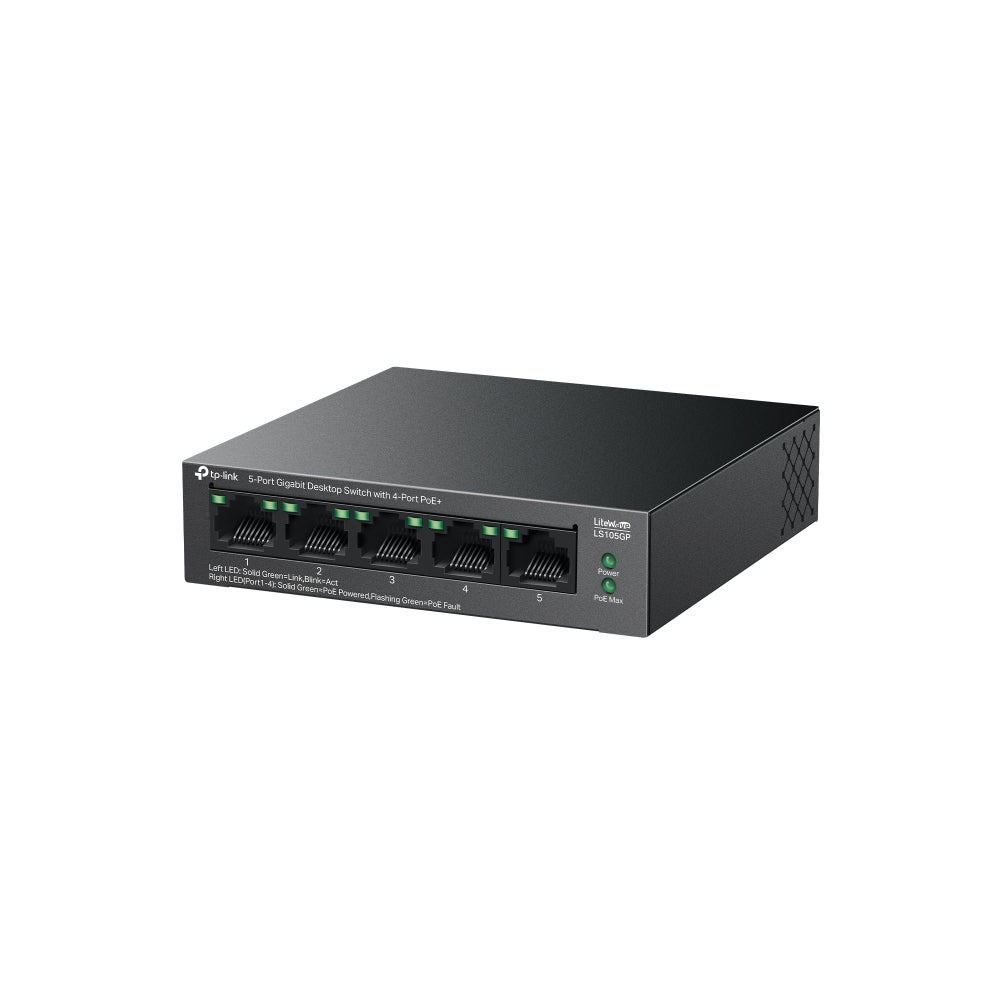

TP-Link LS105GP 5-Port Gigabit PoE Switch

The TP-Link LS105GP is a high-performance 5-port gigabit desktop switch designed to provide reliable connectivity and Power over Ethernet (PoE) capabilities. With four PoE+ ports, this switch is ideal for powering devices such as IP cameras, access points, and VoIP phones while delivering high-speed network performance.

Key Features

• 5 Gigabit Ports:
  • The switch includes 5 x 10/100/1000 Mbps RJ45 ports, providing a total switching capacity of up to 10 Gbps for efficient data transmission.
• PoE+ Support:
  • Four of the ports support 802.3af/at PoE+, allowing each port to deliver up to 30W of power. The total PoE budget is 65W, making it suitable for powering multiple devices simultaneously.
• Extend Mode:
  • With Extend Mode enabled, the switch can extend PoE transmission distances up to 250 meters, making it ideal for surveillance camera deployments in larger areas.
• Plug and Play:
  • The LS105GP features a plug-and-play design, allowing for easy installation with no configuration required, making it user-friendly for both home and office environments.
• Silent Operation:
  • Its fanless design ensures quiet operation, making it suitable for noise-sensitive environments.
• Durable Design:
  • The switch is housed in a durable metal casing and supports both desktop and wall mounting options, providing versatility in installation.

Technical Specifications

• Model: TP-Link LS105GP
• Ports:
  • 5 x Gigabit Ethernet RJ45 ports (Ports 1–4 support PoE+)
• Power Supply:
  • External power adapter (Output: 53.5 VDC / 1.31 A)
• Power Consumption:
  • Maximum of 4W (no PD connected) and up to 74.46W (with full PoE load).
• Dimensions:
  • Approximately 99.8 x 98 x 25 mm (3.9 x 3.9 x 1.0 in)
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Humidity:
  • Operating humidity of 10% to 90% RH non-condensing

Performance Features

• Switching Capacity:
  • Up to 10 Gbps
• Packet Forwarding Rate:
  • Approximately 7.44 Mpps
• MAC Address Table:
  • Supports up to 2,000 MAC addresses
