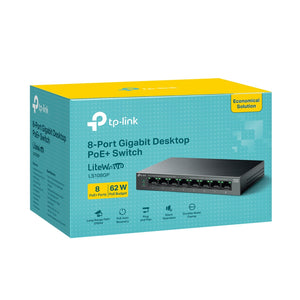

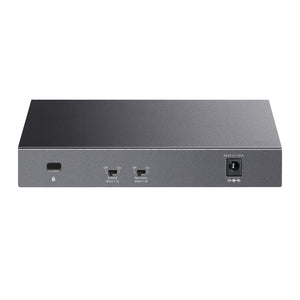

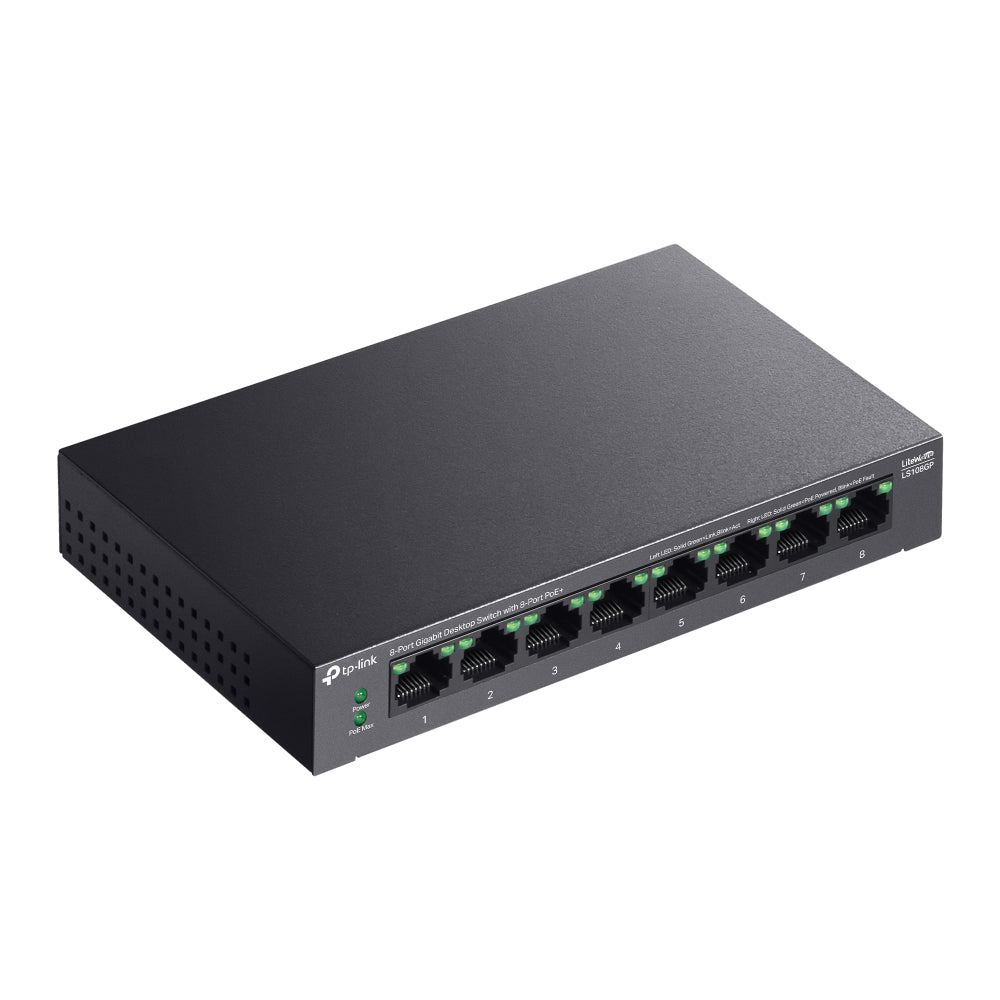

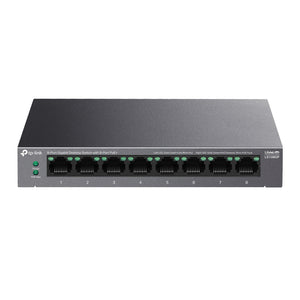

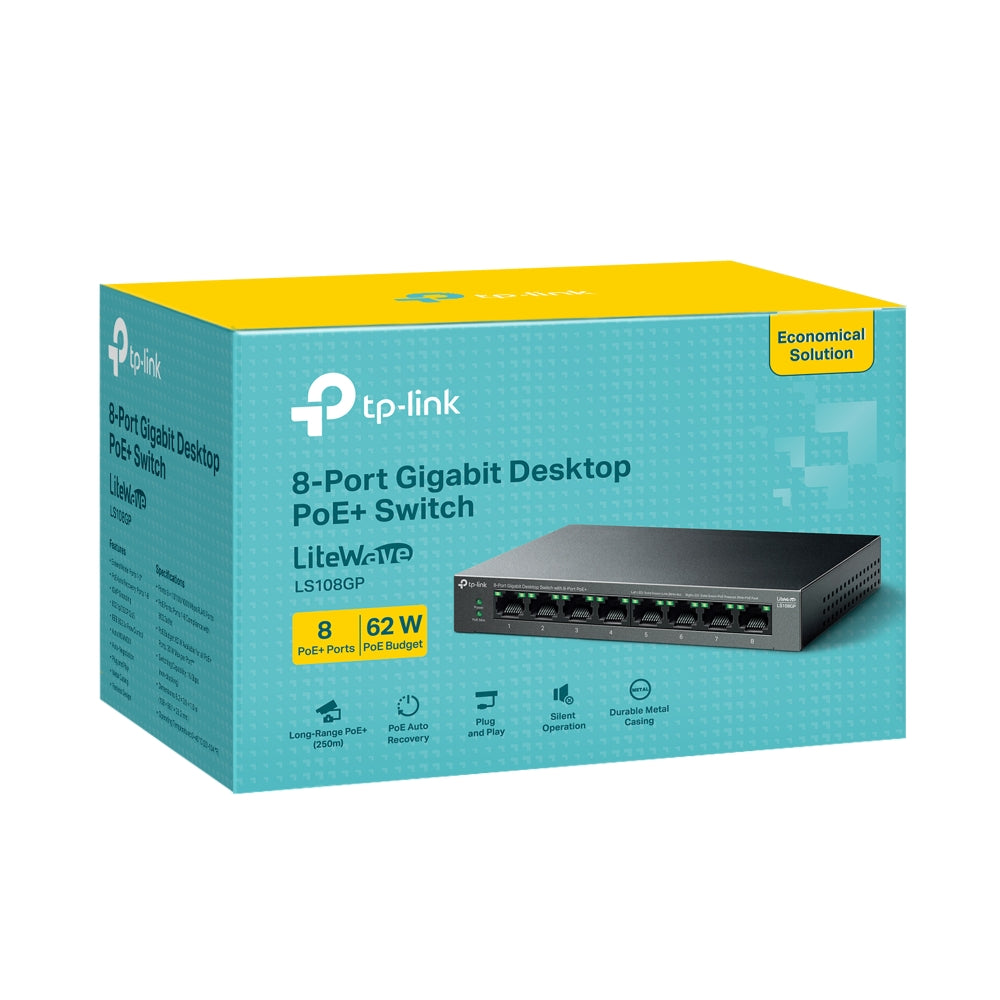

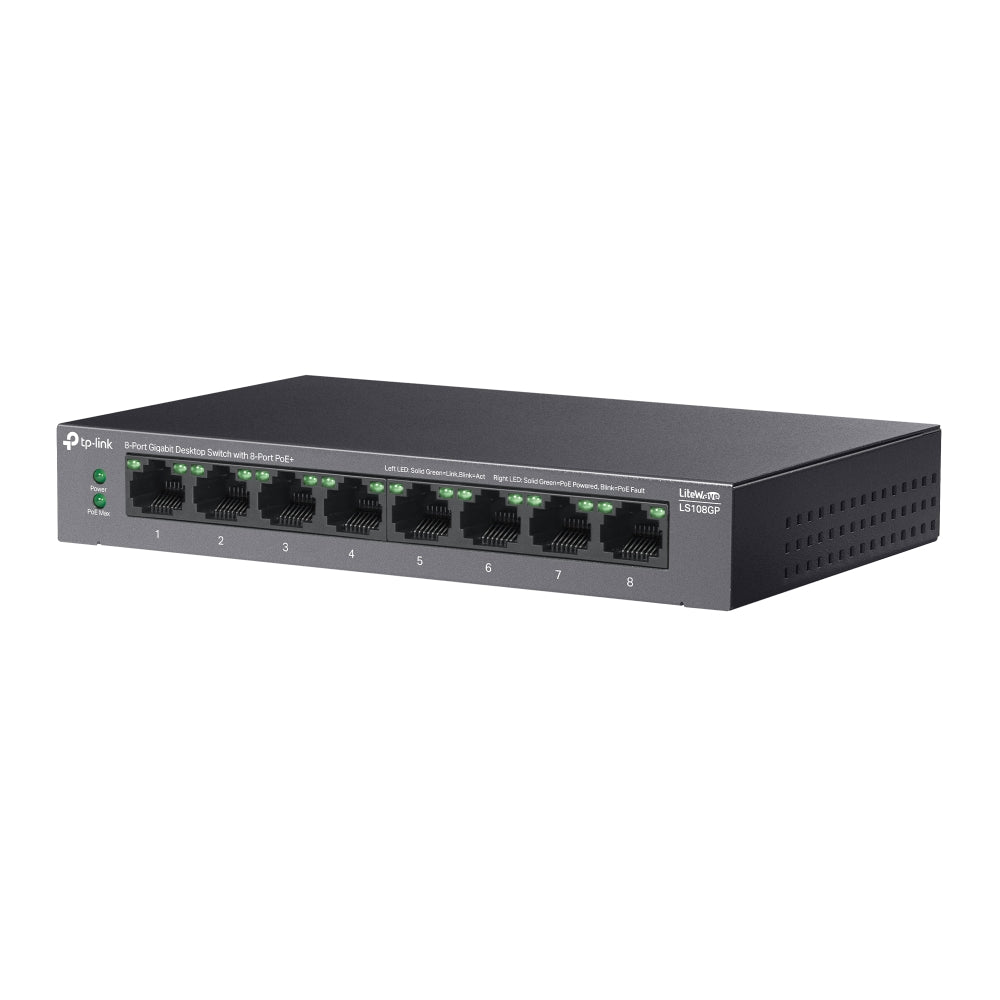

TP-Link LS108GP 8-Port Gigabit PoE Switch

The TP-Link LS108GP is a robust 8-port gigabit desktop switch designed to provide reliable connectivity and Power over Ethernet (PoE) capabilities. This switch is ideal for small to medium-sized networks requiring power and data connectivity for devices such as IP cameras, access points, and VoIP phones.

Key Features

• 8 Gigabit Ports:
  • The switch features 8 x 10/100/1000 Mbps RJ45 ports, providing a total switching capacity of up to 16 Gbps for efficient data transmission.
• PoE+ Support:
  • All 8 ports support 802.3af/at PoE+, allowing each port to deliver up to 30W of power, with a total PoE budget of 62W, making it suitable for powering multiple devices simultaneously.
• Extend Mode:
  • The switch can extend PoE transmission distances up to 250 meters when using Extend Mode, which is beneficial for deploying devices in larger areas.
• Plug and Play:
  • The LS108GP features a plug-and-play design, allowing for easy installation with no configuration required, making it user-friendly for both home and office environments.
• Fanless Design:
  • Its fanless design ensures quiet operation, making it perfect for noise-sensitive environments.
• Durable Design:

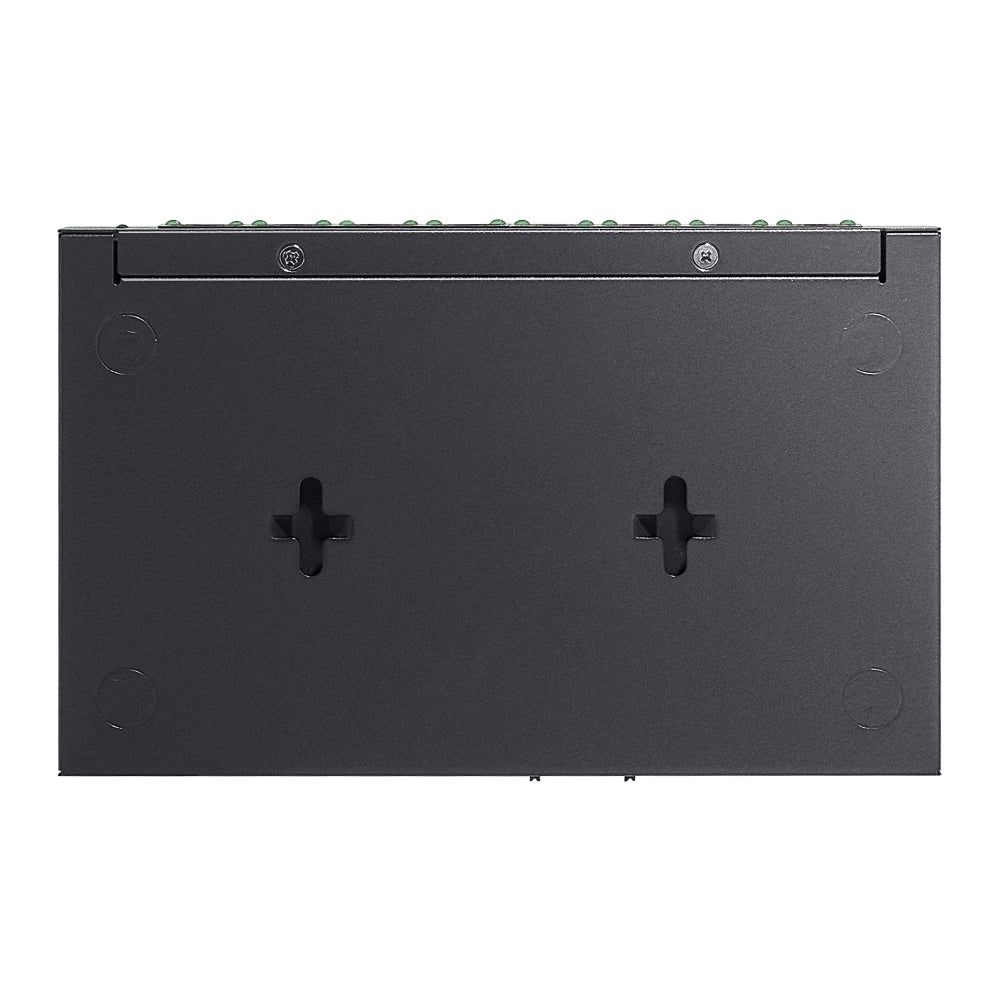

  • The switch is housed in a durable metal casing and supports both desktop and wall mounting options, providing versatility in installation.

Technical Specifications

• Model: TP-Link LS108GP
• Ports:
  • 8 x Gigabit Ethernet RJ45 ports (all ports support PoE+)
• Power Supply:
  • External power adapter (Output: 53.5 VDC / 1.31 A)
• Power Consumption:
  • Maximum of 5.53 W (no PD connected) and up to 71.61 W (with full PoE load).
• Dimensions:
  • Approximately 158 x 99 x 25 mm (6.2 x 3.9 x 1.0 in)
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Humidity:
  • Operating humidity of 10% to 90% RH non-condensing

Performance Features

• Switching Capacity:
  • Up to 16 Gbps
• Packet Forwarding Rate:
  • Approximately 11.9 Mpps
• MAC Address Table:
  • Supports up to 4,000 MAC addresses
