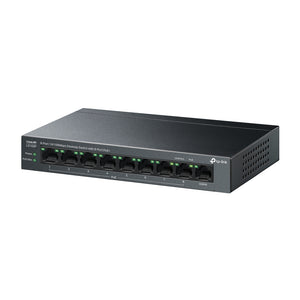

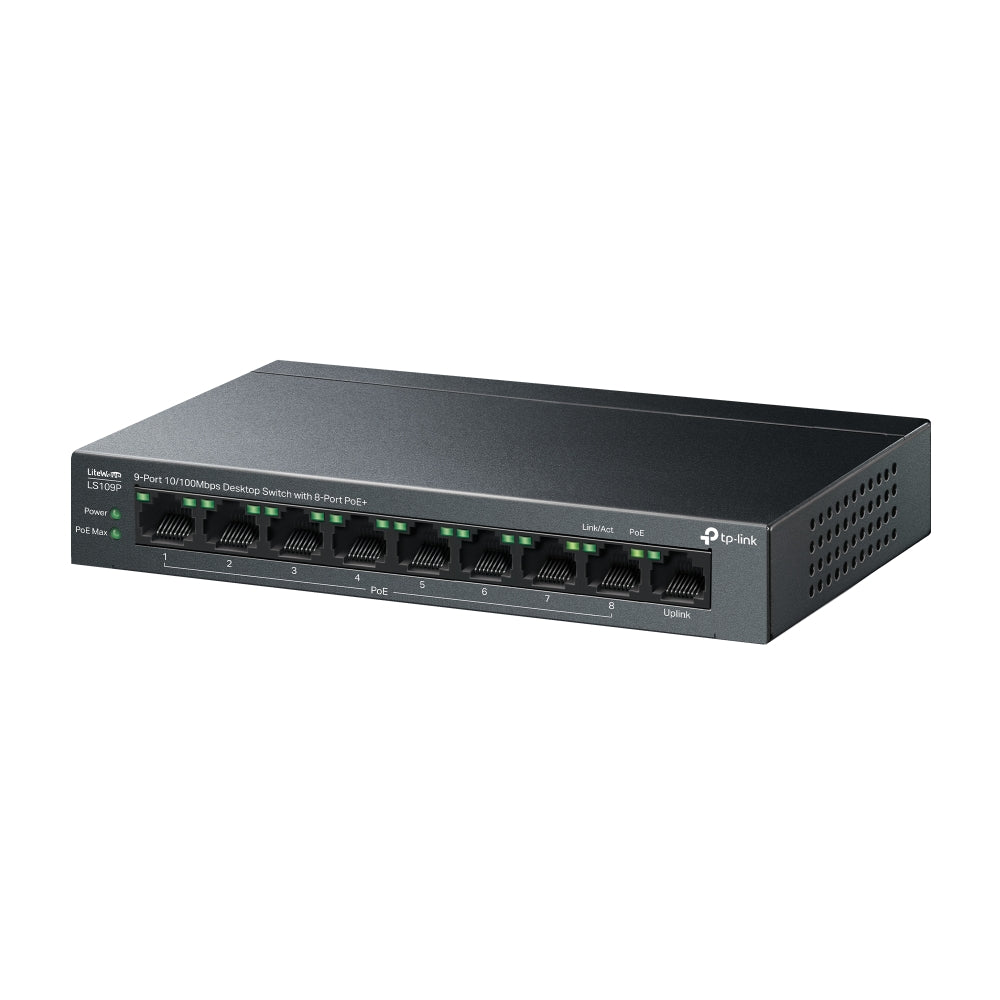

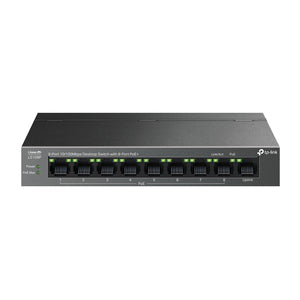

TP-Link LS109P 9-Port 10/100Mbps PoE Switch

The TP-Link LS109P is a versatile 9-port desktop switch designed to provide reliable connectivity and Power over Ethernet (PoE) capabilities. With eight of its ports supporting PoE+, this switch is ideal for powering devices such as IP cameras, access points, and VoIP phones while facilitating efficient data transmission.

Key Features

• 9 Ports:
  • The switch features 9 x 10/100 Mbps RJ45 ports, with 8 ports supporting PoE+, allowing for simultaneous power and data transmission.
• PoE+ Support:
  • All 8 PoE ports comply with the 802.3af/at standard, delivering up to 30W of power per port, with a total PoE budget of 63W.
• Extend Mode:
  • The switch includes an Extend Mode feature that allows for PoE transmission distances of up to 250 meters, making it suitable for larger deployments such as surveillance systems.
• Plug and Play:
  • The LS109P is designed for easy installation with a plug-and-play setup, requiring no configuration, making it user-friendly for both home and office environments.
• Fanless Design:
  • Its fanless design ensures quiet operation, making it ideal for noise-sensitive environments.
• Durable Construction:
  • The switch is built with a durable metal casing and supports both desktop and wall mounting options, providing flexibility in installation.

Technical Specifications

• Model: TP-Link LS109P
• Ports:
  • 9 x 10/100 Mbps RJ45 ports (8 x PoE+ ports)
• Power Supply:
  • External power adapter (Output: 53.5VDC / 1.31A)
• Power Consumption:
  • Maximum of 3.67 W (no PD connected) and up to 73.24 W (with full PoE load).
• Dimensions:
  • Approximately 171 x 98 x 27 mm (6.7 x 3.9 x 1.1 in)
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Humidity:
  • Operating humidity of 10% to 90% RH non-condensing

Performance Features

• Switching Capacity:
  • Up to 1.8 Gbps
• Packet Forwarding Rate:
  • Approximately 1.34 Mpps
• MAC Address Table:
  • Supports up to 2,000 MAC addresses
