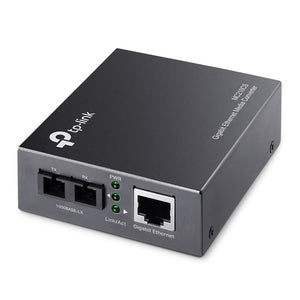

TP-Link MC210CS Gigabit Single-Mode Media Converter

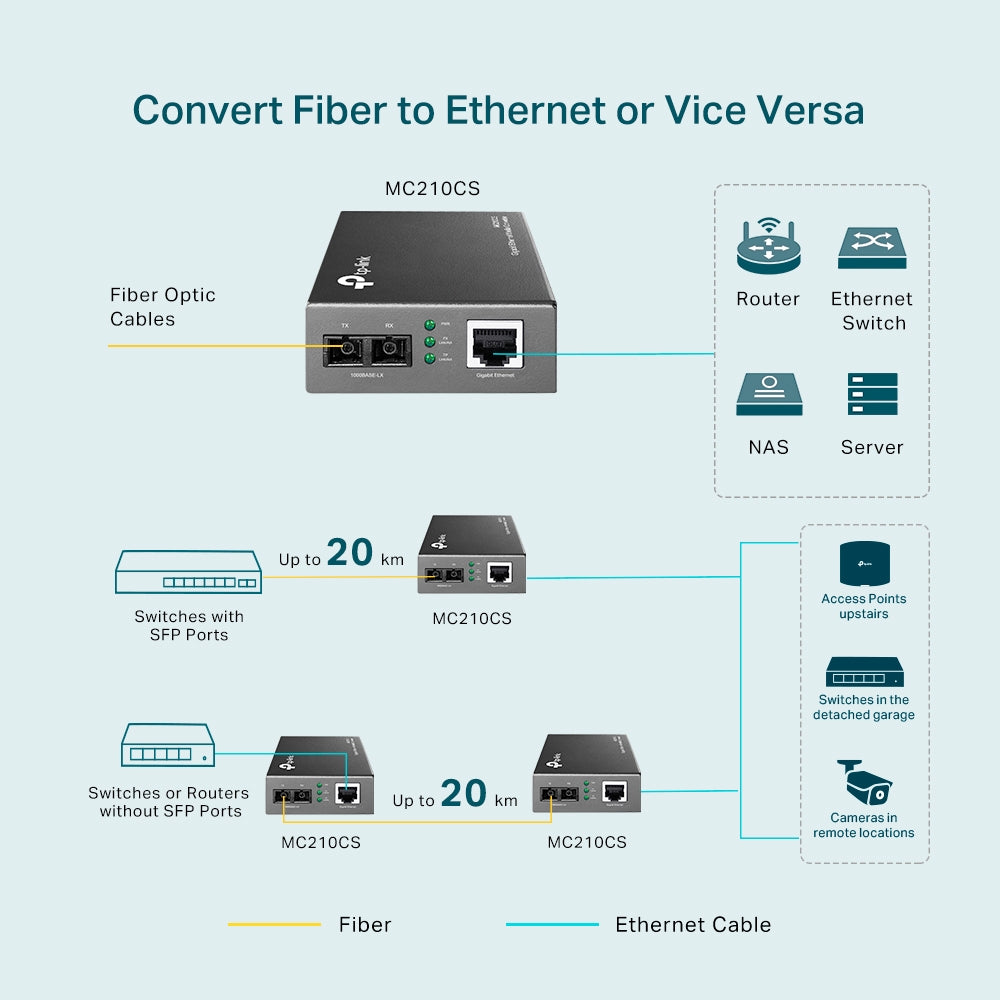

The TP-Link MC210CS is a high-performance Gigabit single-mode media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media and vice versa. This device is ideal for extending network connections over long distances while maintaining high-speed data transmission.

Key Features

• Fiber to Copper Conversion:
  • Converts 1000BASE-LX fiber to 1000Base-T copper media, facilitating seamless integration between different network types.
• Speed and Performance:
  • Operates at 1000Mbps in full-duplex mode for both the TX port and FX port, ensuring efficient data transfer.
• Extended Distance:

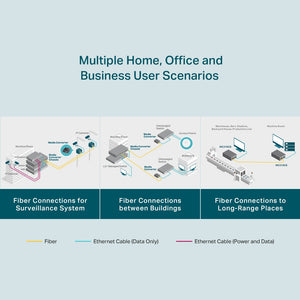

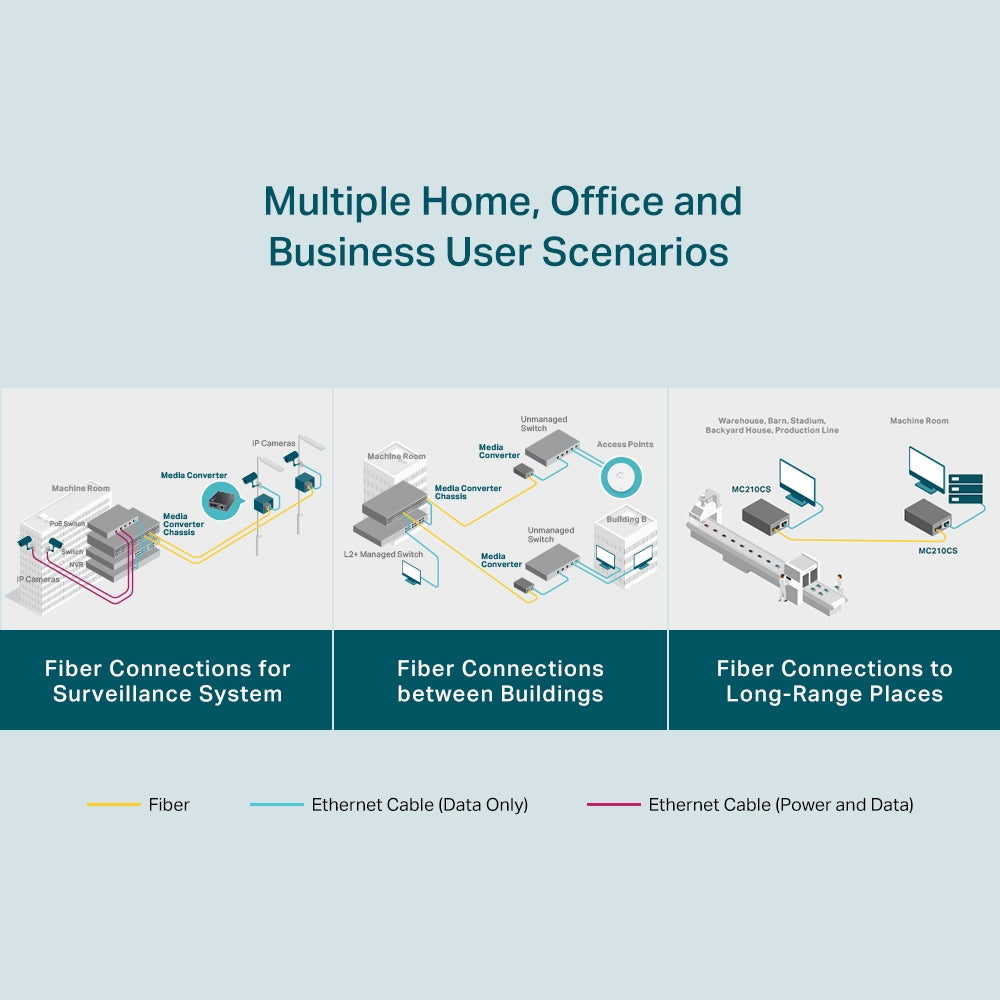

  • Capable of extending fiber distances up to 20 kilometers (12.4 miles) using single-mode fiber, making it suitable for various applications requiring long-range connectivity.
• Auto-Negotiation:
  • Supports auto-negotiation of half-duplex/full-duplex transfer modes, allowing for flexible network configurations.
• LED Indicators:
  • Easy-to-view LED indicators provide real-time status updates on power, link, and activity, facilitating straightforward network monitoring.
• Standalone or Chassis Use:
  • Can be used as a standalone device or with TP-Link’s TL-MC1400 chassis for expanded functionality.

Technical Specifications

• Model: TP-Link MC210CS

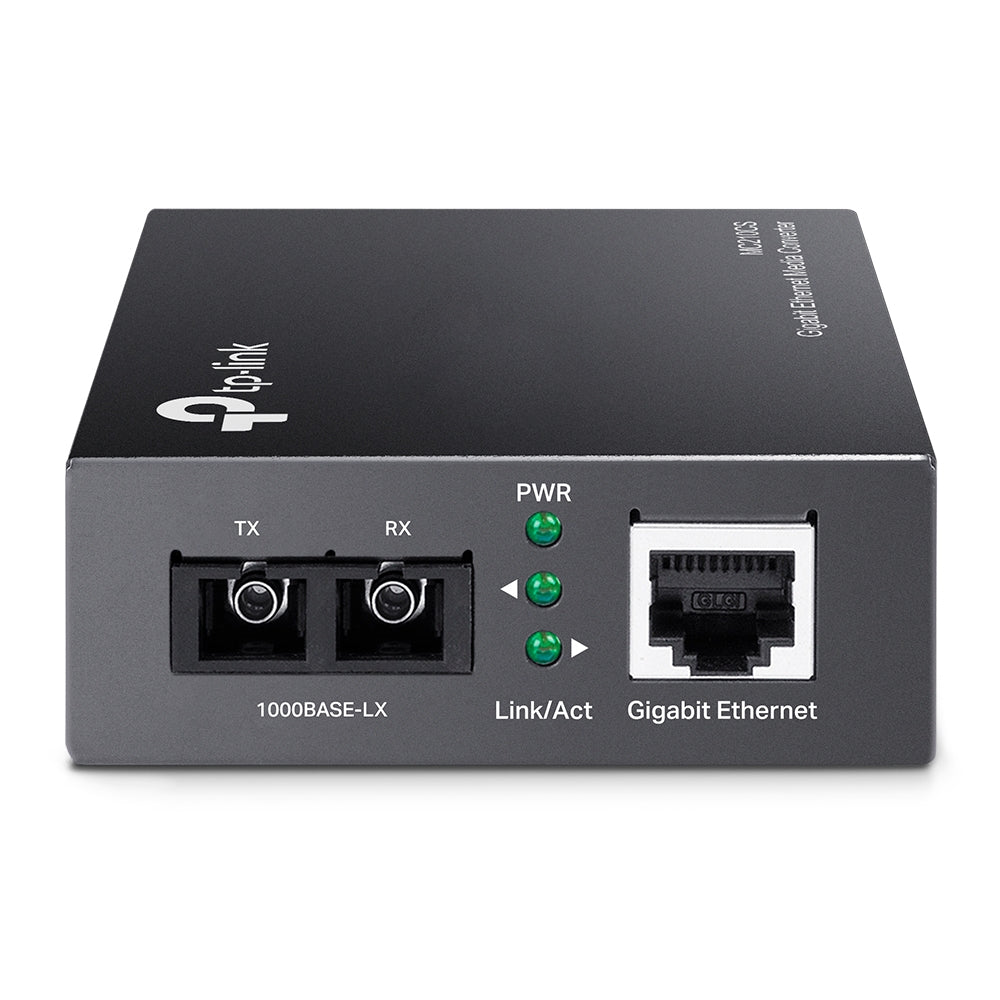

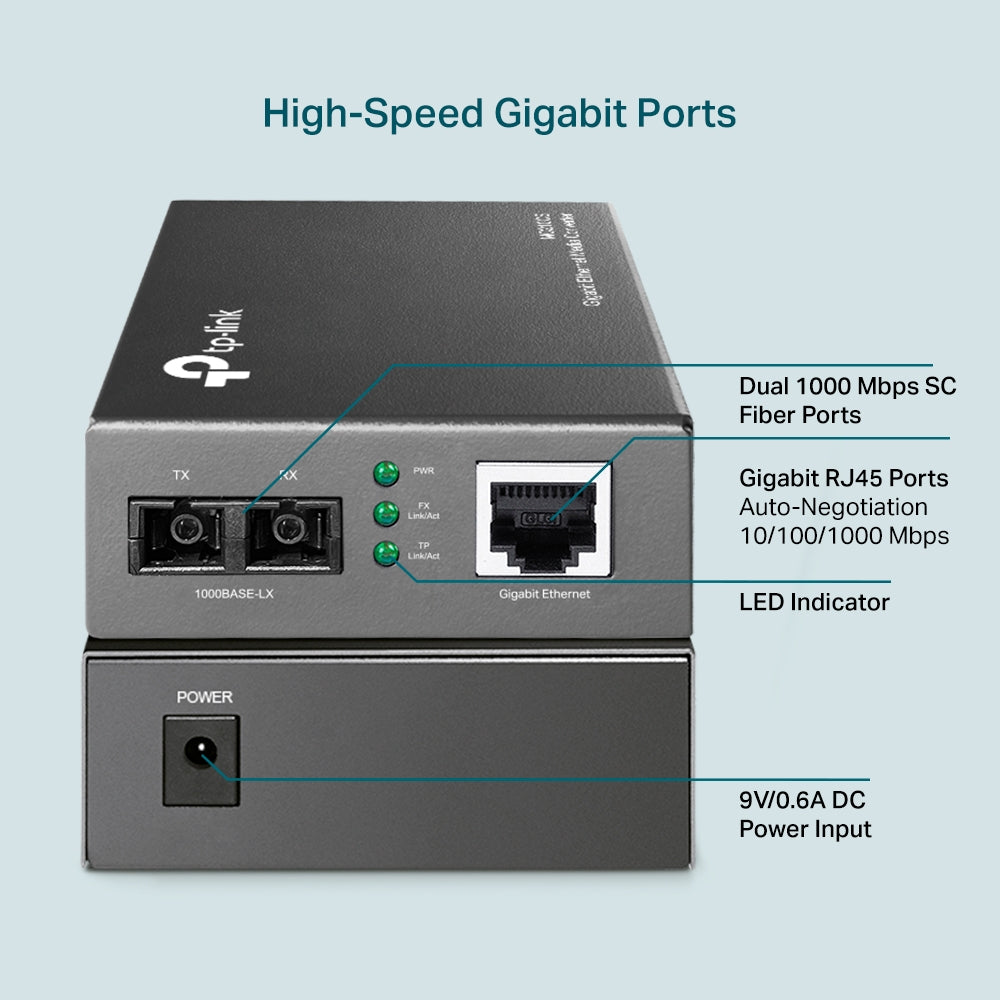

• Ports:

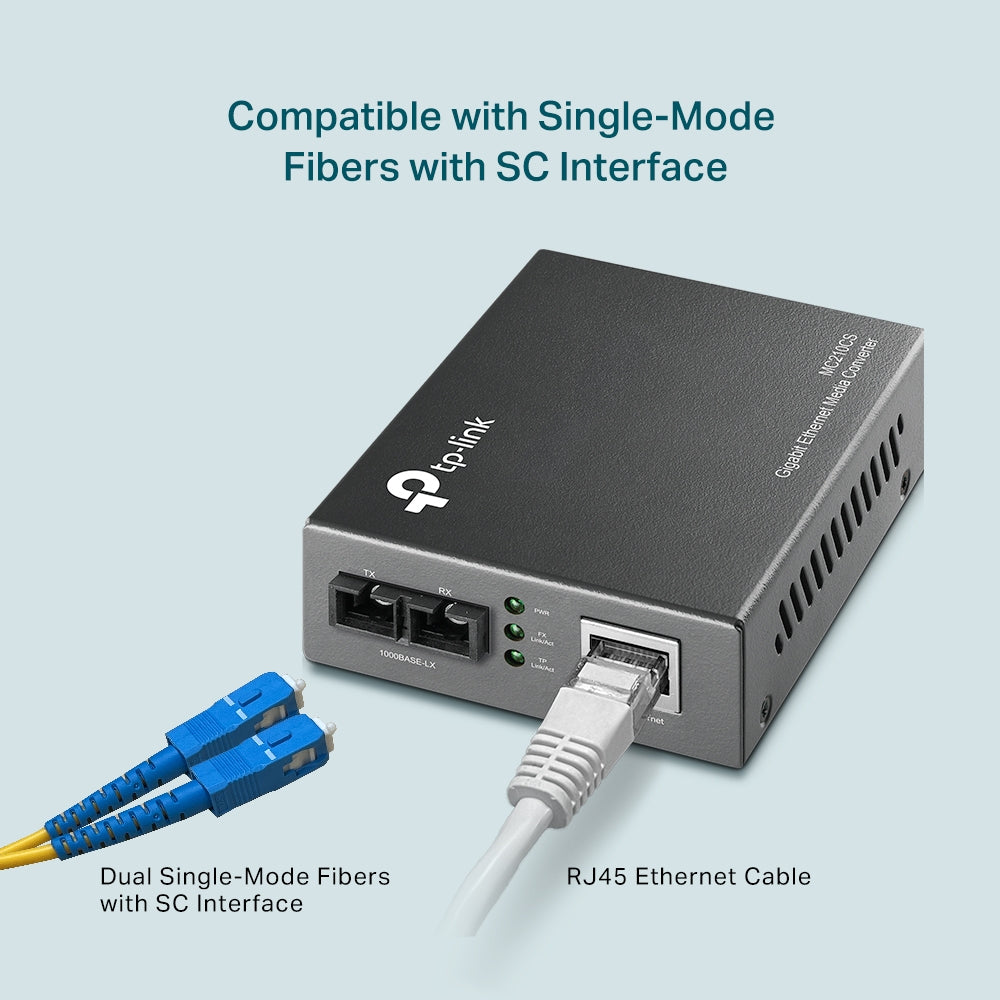

  • 1 x SC fiber port (for 1000BASE-LX)
  • 1 x RJ45 port (for 1000Base-T)

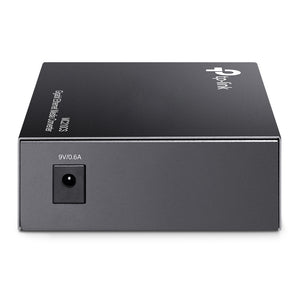

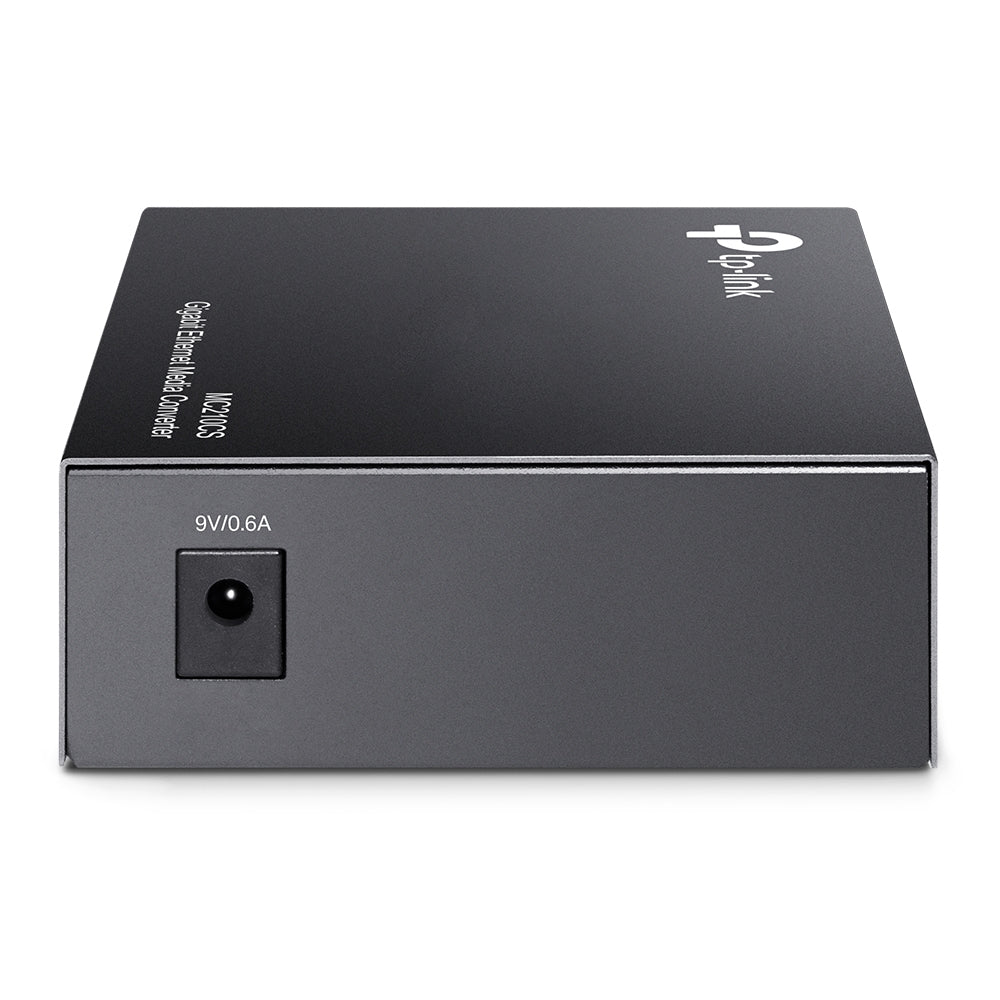

• Power Supply:
  • External power adapter required.
• Wave Length:
  • Operates at a wavelength of 1310nm.
• Max Power Consumption:
  • Consumes up to 5.5W.
• Standards Compliance:
  • Designed under IEEE 802.3ab (1000Base-T) and IEEE 802.3z (1000BASE-LX) standards.

Environmental Specifications

• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing
