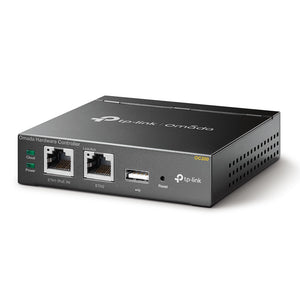

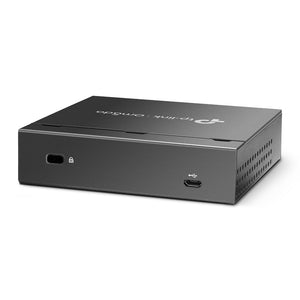

TP-Link OC200 Omada Cloud Controller

The TP-Link OC200 is a professional Omada Cloud Controller designed for centralized management of Omada access points, JetStream switches, and routers. This device provides a user-friendly interface and robust features to manage network devices efficiently, making it suitable for small to medium-sized businesses.

Key Features

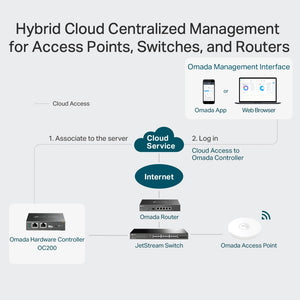

• Centralized Management:
  • Supports management of up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers from a single interface, allowing for streamlined network administration.
• Hybrid Cloud Technology:
  • Offers both local and cloud management capabilities, enabling users to control their network remotely while ensuring security and stability through local management.
• Power over Ethernet (PoE) Support:
  • Compatible with 802.3af/at PoE, simplifying installation by eliminating the need for additional power outlets.
• Advanced Network Management:
  • Features include automatic device discovery, batch configuration, batch firmware upgrades, intelligent network monitoring, and abnormal event warnings.
• User-Friendly Interface:
  • The OC200 provides an intuitive interface for easy navigation and management of network devices.
• Guest Network Management:
  • Allows the creation of secure guest networks with multiple login options such as Facebook Wi-Fi, SMS login, and vouchers.

Technical Specifications

• Model: TP-Link OC200

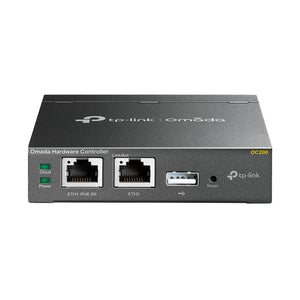

• Ports:
  • 2 x 10/100Mbps Ethernet ports
  • 1 x USB 2.0 port for configuration backup
  • 1 x Micro USB port for power
• Power Supply:
  • Powered via PoE (802.3af/at) or Micro USB (DC 5V/Minimum 1A)
• Power Consumption:
  • Maximum of 5W.
• Dimensions:
  • Approximately 100 x 98 x 25 mm (3.9 x 3.9 x 1.0 inches).
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F).
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F).
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing.
