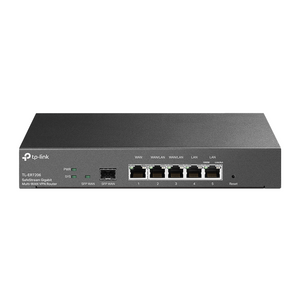

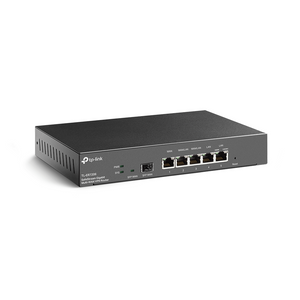

TP-Link TL-ER7206 Omada Gigabit Multi-WAN VPN Router

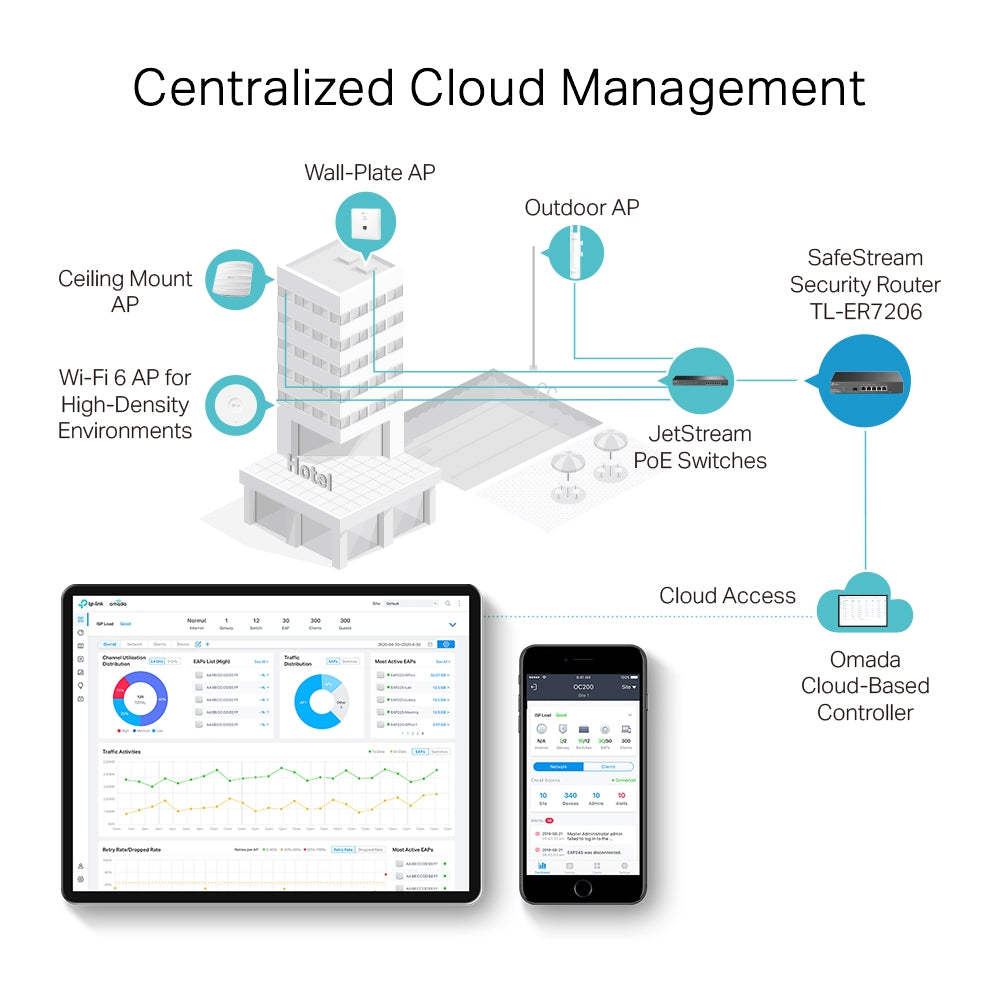

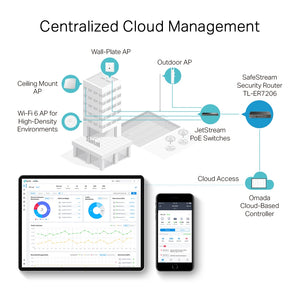

The TP-Link TL-ER7206 is a robust Gigabit Multi-WAN VPN router designed for small to medium-sized businesses. It integrates advanced networking features, including multiple WAN ports, secure VPN capabilities, and centralized management through the Omada Software Defined Networking (SDN) platform.

Key Features

• Multi-WAN Ports:
  • Equipped with 1 SFP WAN port, 1 Gigabit WAN port, and 2 interchangeable WAN/LAN ports, allowing for up to four WAN connections to optimize bandwidth usage and ensure reliable internet access.
• High-Performance Hardware:
  • Powered by a 64-bit dual-core processor with 512MB DDR3 RAM, enabling efficient handling of network traffic and supporting up to 150,000 concurrent sessions.

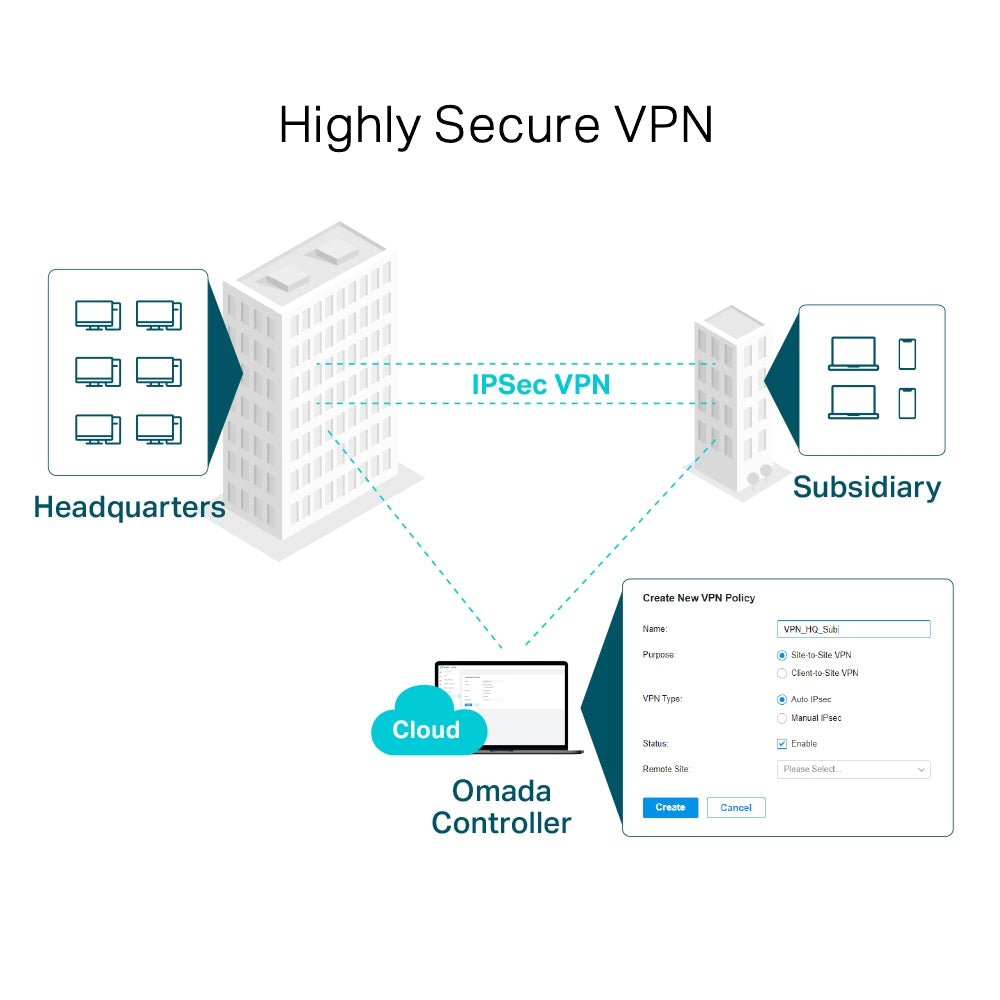

• Secure VPN Support:
  • Supports multiple VPN protocols, including IPSec, PPTP, and L2TP, allowing for secure remote access and site-to-site connectivity. It can manage up to 100 IPSec tunnels, 50 OpenVPN connections, and more.
• Load Balancing:
  • The router's multi-WAN load balancing function distributes data streams according to the bandwidth of each WAN connection, enhancing overall throughput and reliability.
• Advanced Security Features:
  • Includes robust firewall capabilities, captive bandwidth control, and professional-grade lightning protection (4 kV), ensuring network security and stability.

Technical Specifications

• Model: TP-Link TL-ER7206

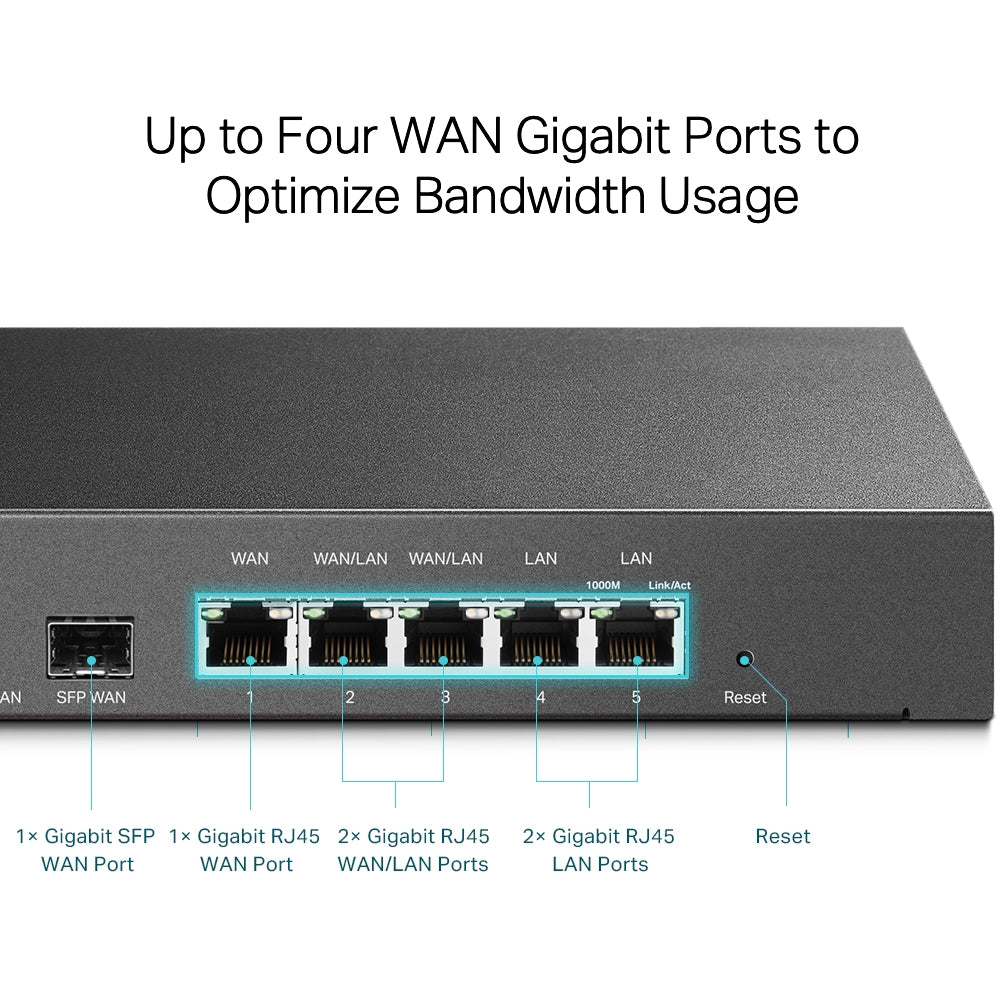

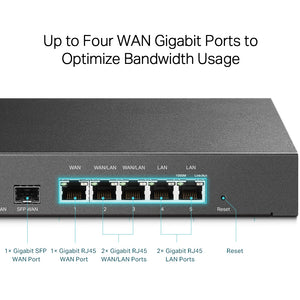

• Ports:
  • 1 x Gigabit SFP WAN port
  • 1 x Gigabit WAN port
  • 2 x Gigabit LAN/WAN ports
  • 2 x Gigabit LAN ports

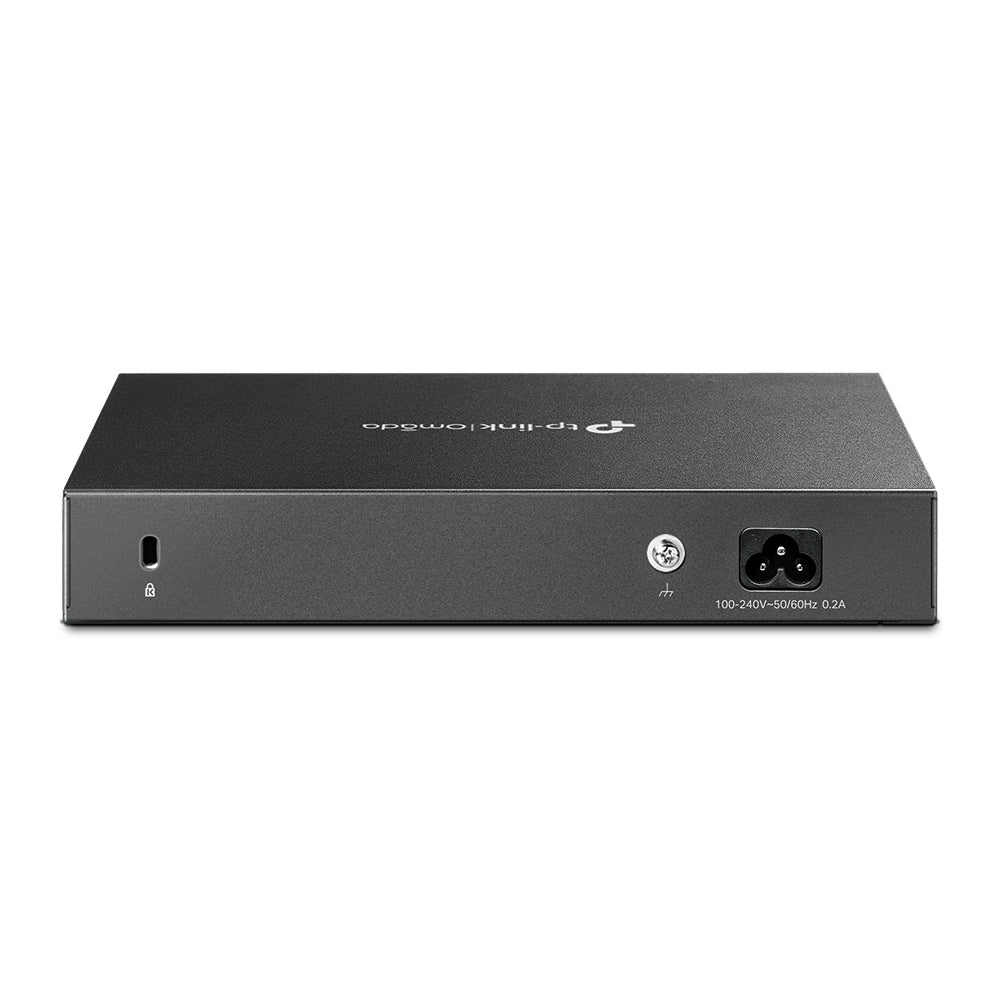

• Power Supply:
  • Input: 100–240V AC, 50/60 Hz
• Flash Memory:
  • SPI 4MB + NAND 128MB
• DRAM:
  • 512MB
• Dimensions:
  • Approximately 226 x 131 x 35 mm (8.9 x 5.2 x 1.4 in)
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing

Performance Metrics

• IPSec VPN Throughput:
  • Up to 291.6 Mbps
• DPI Throughput:
  • TCP: up to 931 Mbps; UDP: up to 902 Mbps
• Concurrent Sessions:
  • Supports up to 150,000 concurrent sessions
