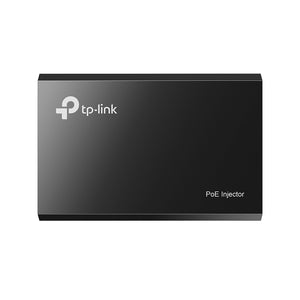

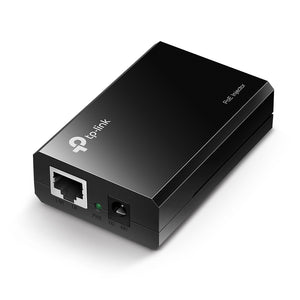

TP-Link TL-POE150S PoE Injector Adapter

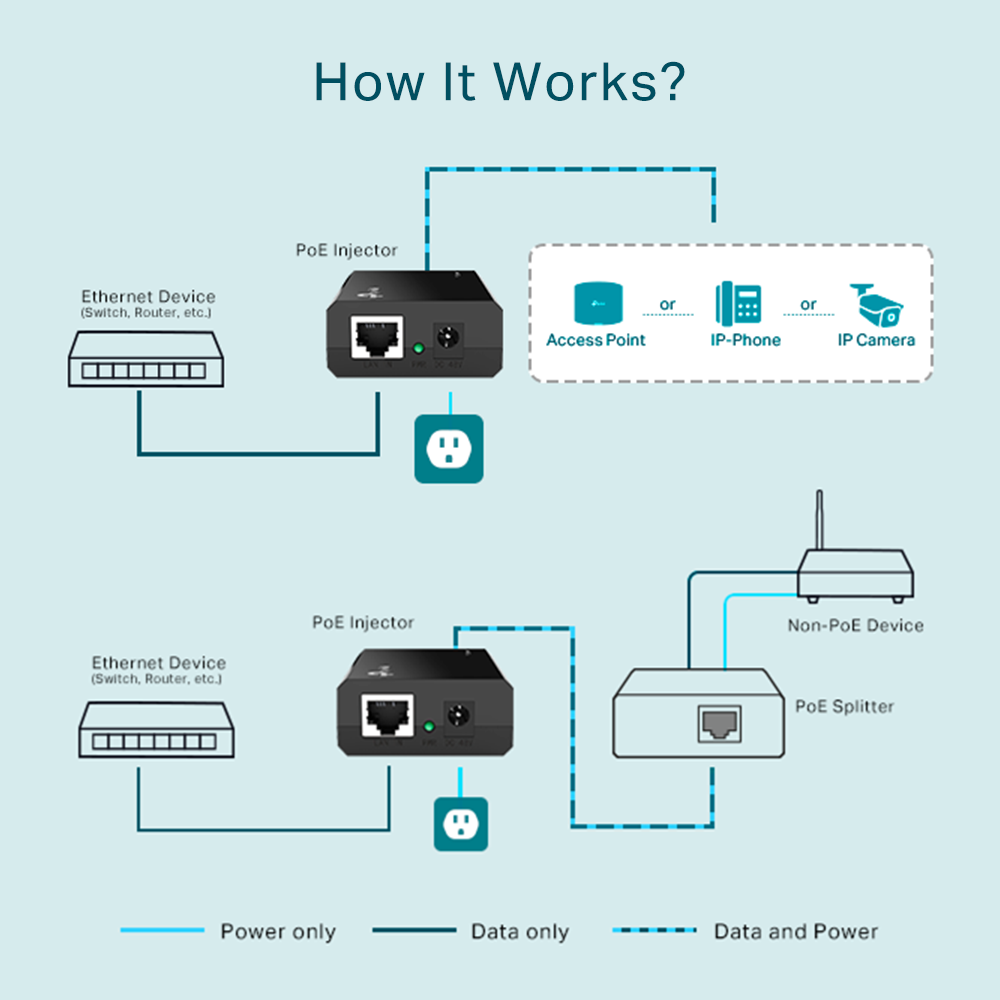

The TP-Link TL-POE150S is a 48V passive PoE injector adapter designed to deliver power and data to PoE-enabled devices over Ethernet cables. This device is ideal for powering devices such as IP cameras, wireless access points, and VoIP phones, especially in locations where power outlets are not readily available.

Key Features

• Gigabit Ethernet Ports:
  • Equipped with 2 x 10/100/1000Mbps RJ45 ports, including one LAN port for data input and one PoE port for power and data output, ensuring high-speed connectivity.
• IEEE 802.3af Compliance:
  • Fully compliant with the IEEE 802.3af standard, allowing it to work with all IEEE 802.3af compliant powered devices (PDs).
• Power Output:
  • Provides a maximum output power of 15.4W at 48V DC, enabling efficient power delivery to connected devices.
• Auto-Detection:
  • Automatically detects the required power supply for connected devices, simplifying installation and ensuring optimal performance.
• Plug-and-Play Installation:
  • No configuration is required; simply connect the adapter to your network and powered device for immediate use.
• LED Indicator:
  • Features an LED indicator to show the operational status of the device.

Technical Specifications

• Model: TP-Link TL-POE150S

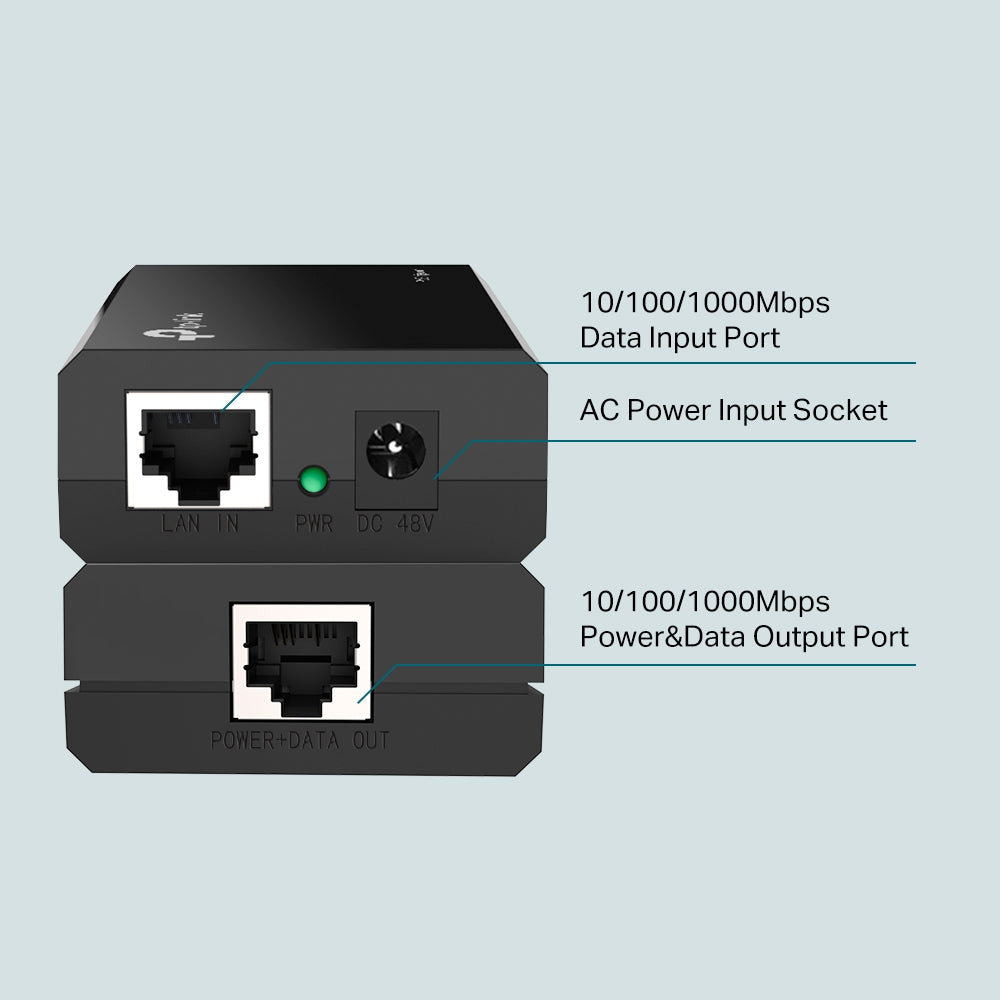

• Ports:
  • 1 x 10/100/1000Mbps RJ45 LAN port (data input)
  • 1 x 10/100/1000Mbps RJ45 PoE port (power + data output)
  • 1 x DC input port for external power supply
• Power Supply:
  • Input: External 48V DC power adapter
• Power Consumption:
  • Maximum of 15.4W.
• Dimensions:
  • Approximately 81 x 54 x 24 mm (3.2 x 2.1 x 0.9 in).
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F).
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F).
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing.
