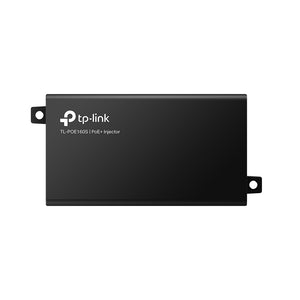

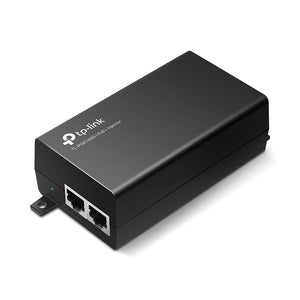

TP-Link TL-POE160S PoE+ Injector Adapter

The TP-Link TL-POE160S is a PoE+ injector adapter designed to deliver power and data to PoE-enabled devices over Ethernet cables. This device is ideal for powering devices such as IP cameras, wireless access points, and VoIP phones in locations where power outlets are not readily available.

Key Features

• Gigabit Ethernet Ports:
  • Equipped with 1 x 10/100/1000Mbps RJ45 data-in port and 1 x 10/100/1000Mbps RJ45 power+data-out port, ensuring high-speed data transmission and compatibility with various network devices.
• Power Output:
  • Supplies up to 30W of power, compliant with IEEE 802.3af/at standards, making it suitable for high-powered devices.
• Auto-Sensing Technology:
  • Automatically detects and supplies the necessary power requirements for connected devices, simplifying installation and ensuring optimal performance.
• Plug-and-Play Installation:
  • Requires no configuration, allowing for easy setup and immediate use.
• Wall-Mounting Design:
  • Supports both desktop and wall-mounting installation options, accommodating various deployment scenarios.
• LED Indicator:
  • Features an LED indicator to show the operational status of the device.

Technical Specifications

• Model: TP-Link TL-POE160S

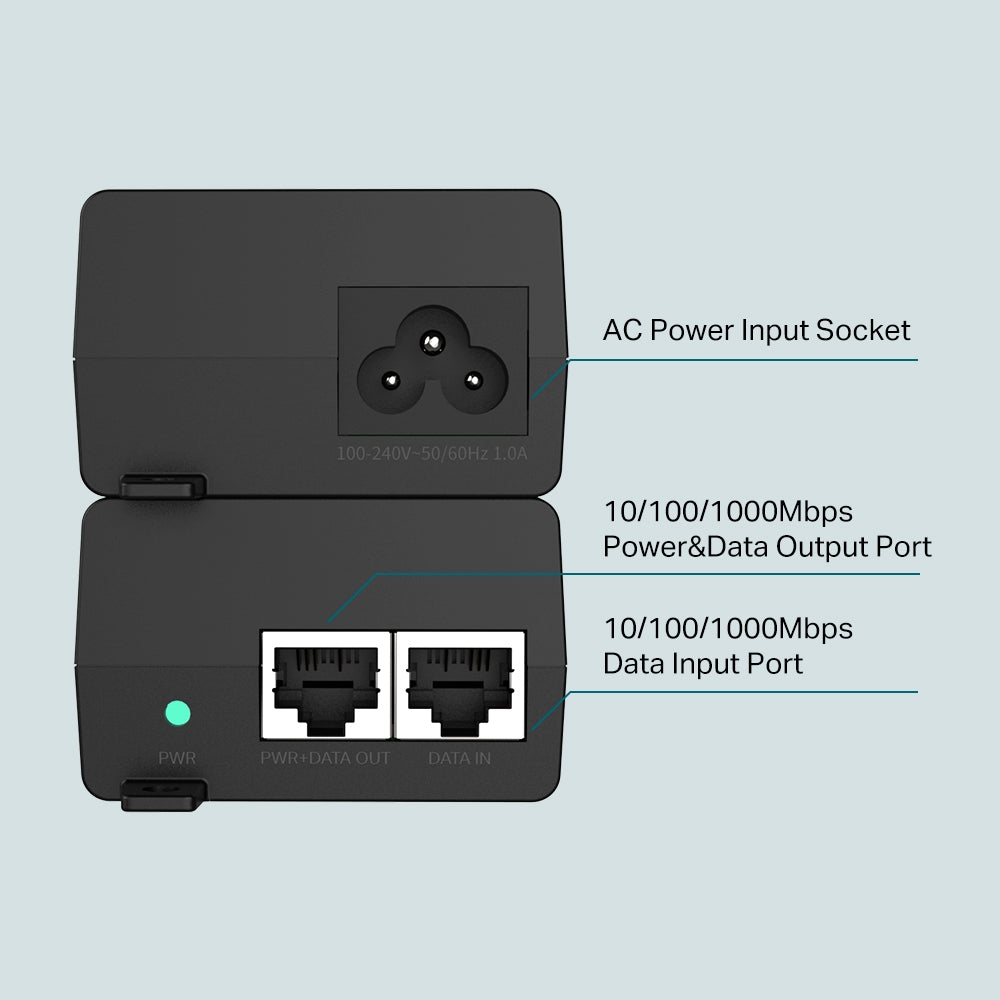

• Ports:
  • 1 x 10/100/1000Mbps RJ45 data-in port
  • 1 x 10/100/1000Mbps RJ45 power+data-out port
  • 1 x AC socket for power input
• Power Supply:
  • Input: 100-240V AC, 50/60Hz
• Power Consumption:
  • Maximum of 30W.
• Dimensions:
  • Approximately 125 x 59.4 x 36.8 mm (4.9 x 2.3 x 1.4 in).
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F).
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F).
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing.

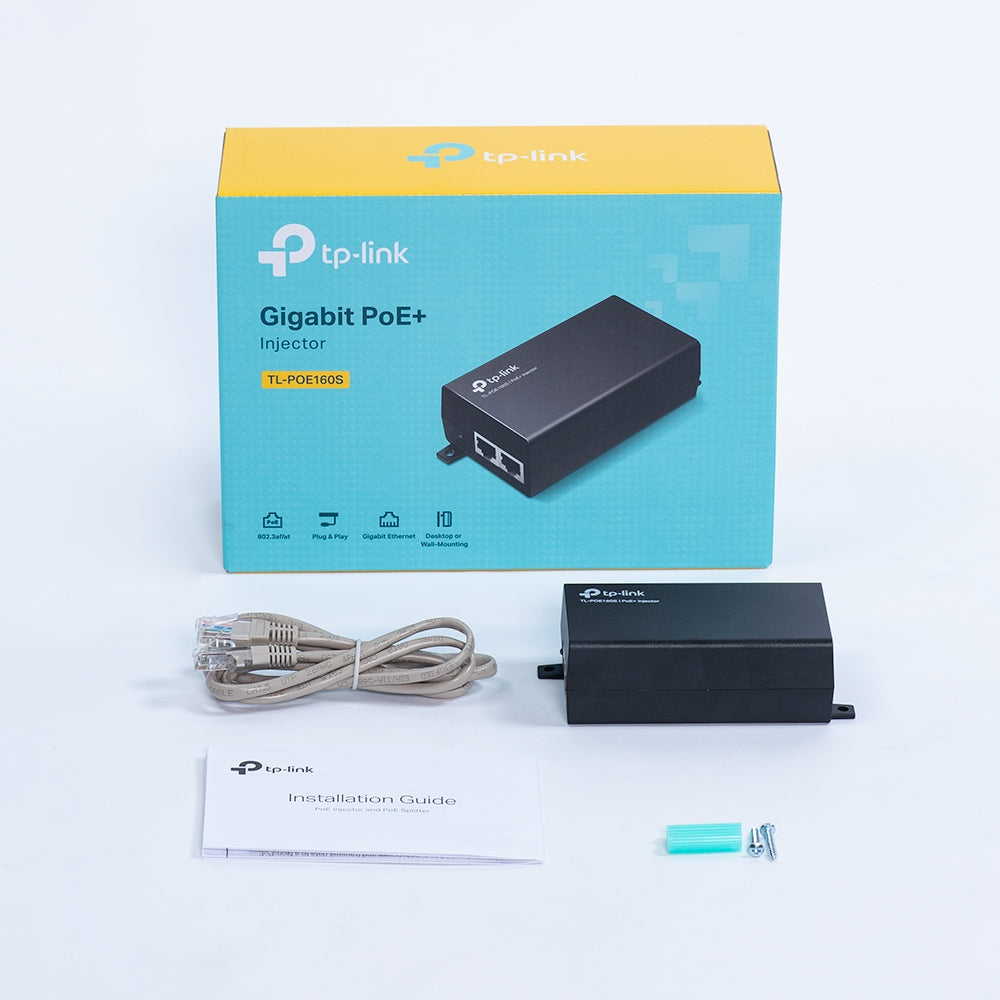

Package Contents

• TP-Link TL-POE160S PoE+ Injector Adapter
• Power Cord
• RJ45 Cable
• Installation Guide
• Wall-Mounting Kits
