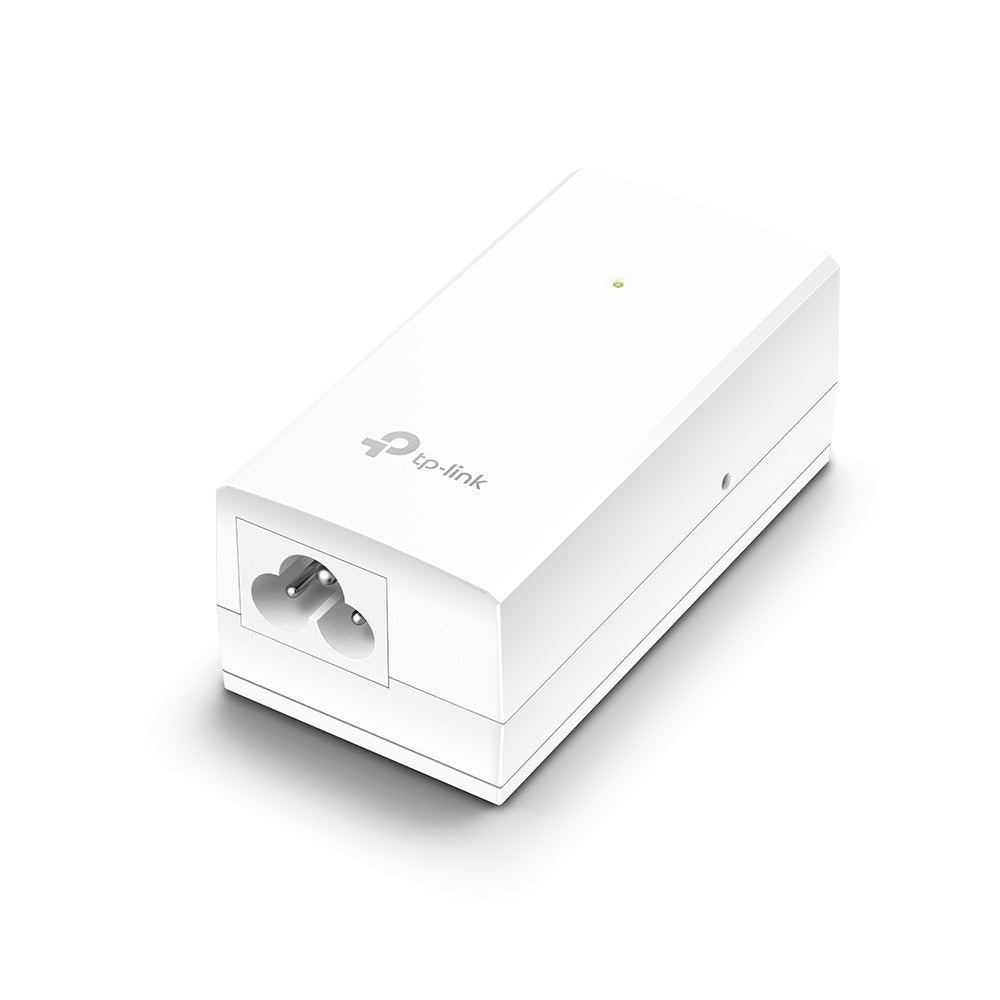

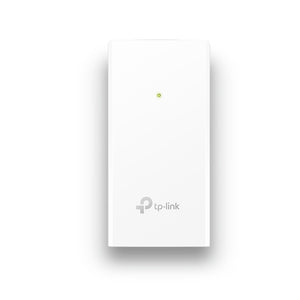

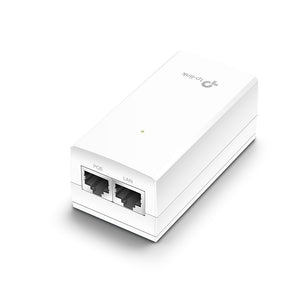

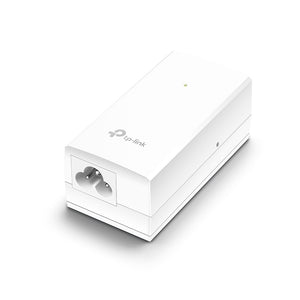

TP-Link TL-POE2412G Passive PoE Adapter

The TP-Link TL-POE2412G is a 24V passive PoE injector adapter designed to deliver power and data to compatible devices over Ethernet cables. This adapter is ideal for powering devices such as IP cameras, wireless access points, and other network devices that support passive PoE.

Key Features

• Gigabit Ethernet Ports:
  • Equipped with 1 x 10/100/1000Mbps RJ45 shielded data input port and 1 x 10/100/1000Mbps RJ45 passive PoE output port, ensuring high-speed data transmission.
• 24VDC Passive PoE Support:
  • Provides a maximum output power of 12W (24V DC), making it suitable for various passive PoE devices.
• Auto-Adjusted Power:
  • Automatically adjusts power output based on the device's requirements, ensuring optimal performance without manual configuration.
• Convenient Wall-Mounting Design:
  • Features a wall-mounting design for easy installation in various environments.
• Plug-and-Play Operation:
  • Simple installation with no configuration required, allowing for quick deployment.

Technical Specifications

• Model: TP-Link TL-POE2412G
• Power Supply:
  • Input: 100-240V AC, 50/60Hz, 0.4A
  • Output: 24V DC, 0.5A (maximum)
• Power Consumption:
  • Maximum of 12W.
• LED Indicator:
  • Power (PWR) indicator for monitoring status.
• Dimensions:
  • Approximately 85.8 x 43.9 x 35 mm (3.4 x 1.7 x 1.4 in).
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F).
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F).
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing.

What's in the Box

• TP-Link TL-POE2412G Passive PoE Adapter
• Power Cord
• Wall Mounting Kits
