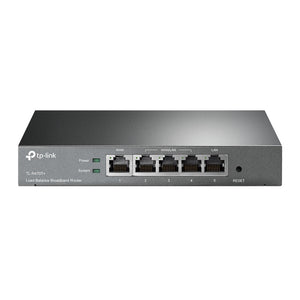

TP-Link TL-R470T+ Load Balance Broadband Router

The TP-Link TL-R470T+ is a load balance broadband router designed for small to medium-sized businesses. It features advanced load balancing capabilities, allowing it to manage multiple WAN connections efficiently, ensuring maximum bandwidth and reliable internet access.

Key Features

• Multi-WAN Support:
  • Supports up to 4 WAN ports, with three changeable WAN/LAN ports, enabling users to connect multiple internet sources for load balancing and redundancy.
• Smart Load Balancing:
  • The integrated smart load balancing function automatically selects the most efficient line based on current load and bandwidth requirements, providing consistent network uptime.
• Advanced Quality of Service (QoS):
  • Offers advanced QoS settings to prioritize bandwidth allocation based on specific applications or client needs, enhancing overall network performance.
• Robust Security Features:
  • Includes protection against Denial of Service (DoS) attacks, IP/MAC/URL filtering, and application layer gateway (ALG) support for protocols like FTP, SIP, and PPTP.
• User-Friendly Management:
  • Easy management through a web-based utility allows for straightforward configuration and monitoring of the network.

Technical Specifications

• Model: TP-Link TL-R470T+
• Ports:
  • 4 x WAN/LAN ports (3 changeable)
  • 1 x LAN port
• Power Supply:
  • Input: 100-240V AC, 50/60Hz
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing

Performance Metrics

• Maximum Bandwidth:
  • Supports up to 100 Mbps for each WAN connection.

Package Contents

• TP-Link TL-R470T+ Router
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
