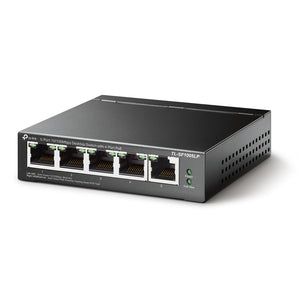

TP-Link TL-SF1005LP 5-Port PoE Switch

The TP-Link TL-SF1005LP is a 5-port unmanaged desktop switch that features 4 Power over Ethernet (PoE) ports, designed to simplify network setups by providing both data and power to connected devices over a single cable. This switch is ideal for small businesses and home networks, particularly for applications such as IP surveillance, VoIP phones, and wireless access points.

Key Features

• Port Configuration:

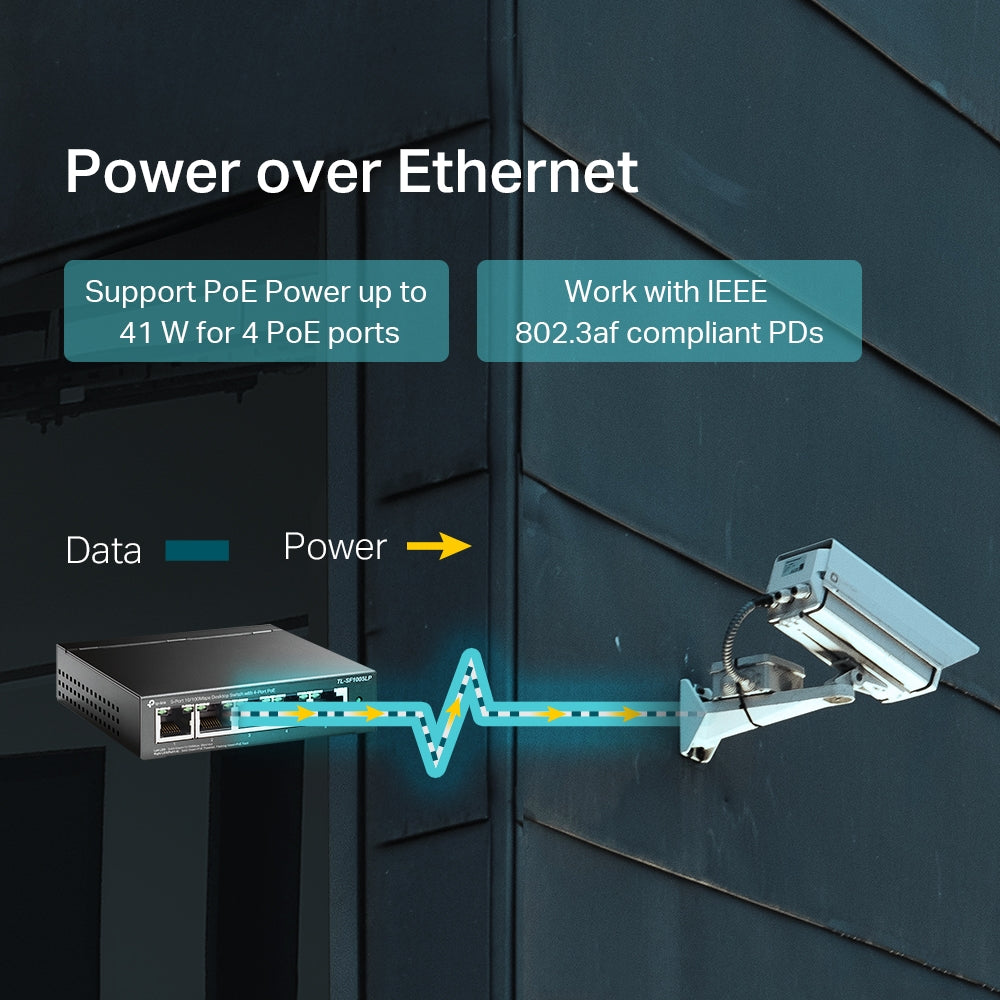

  • 5 x 10/100 Mbps RJ45 ports, with 4 ports supporting PoE (IEEE 802.3af), allowing for power delivery alongside data transmission.
• PoE Power Budget:

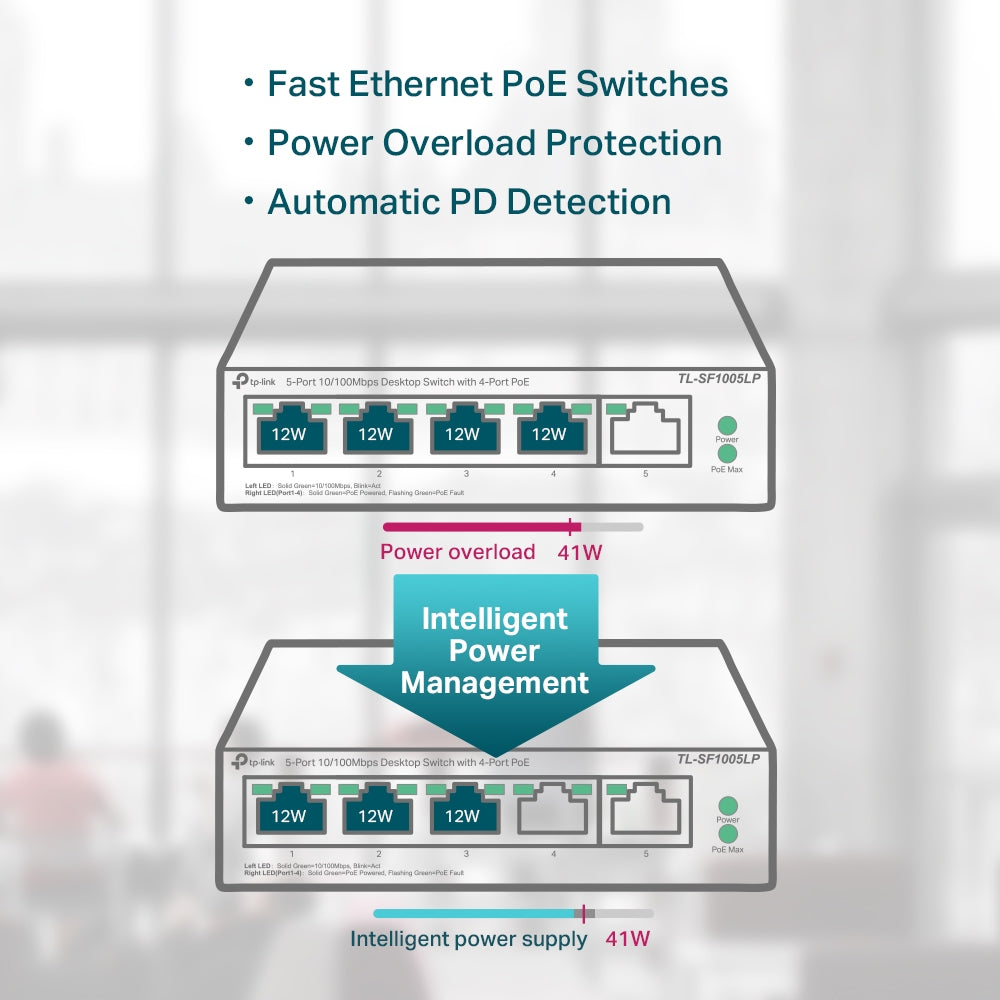

  • Provides a total PoE power budget of 41W, with each PoE port capable of delivering up to 15.4W. This makes it suitable for powering devices like IP cameras and access points without the need for additional power adapters.
• Extend Mode:
  • Supports an extended transmission range of up to 250 meters when using Extend Mode, although the speed will be reduced to 10 Mbps for ports in this mode.
• Priority Mode:
  • Features a one-touch Priority Mode that ensures higher priority for ports 1 and 2, which is beneficial for sensitive applications such as video monitoring.

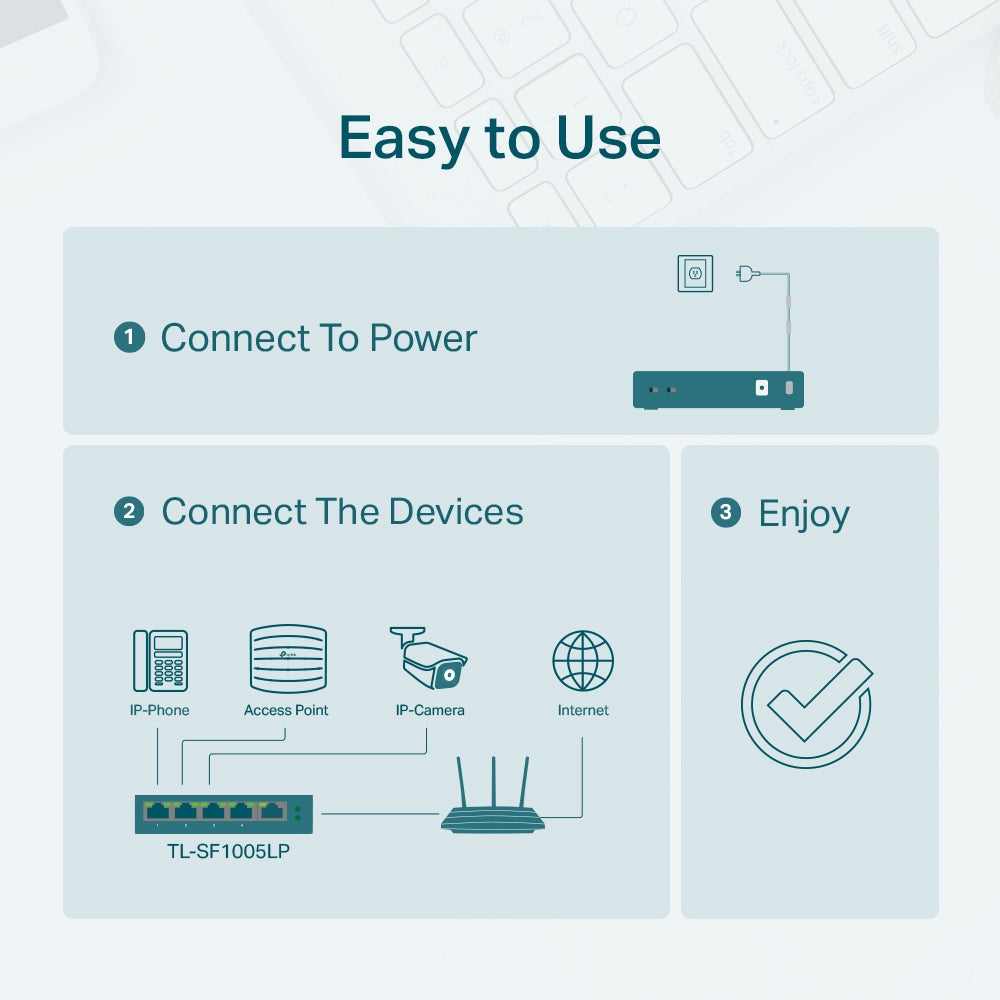

• Plug and Play:
  • Easy installation with no configuration required, making it user-friendly and ideal for quick deployments.
• Fanless Design:
  • Operates quietly due to its fanless design, making it suitable for office environments.

Technical Specifications

• Model: TP-Link TL-SF1005LP
• Ports:

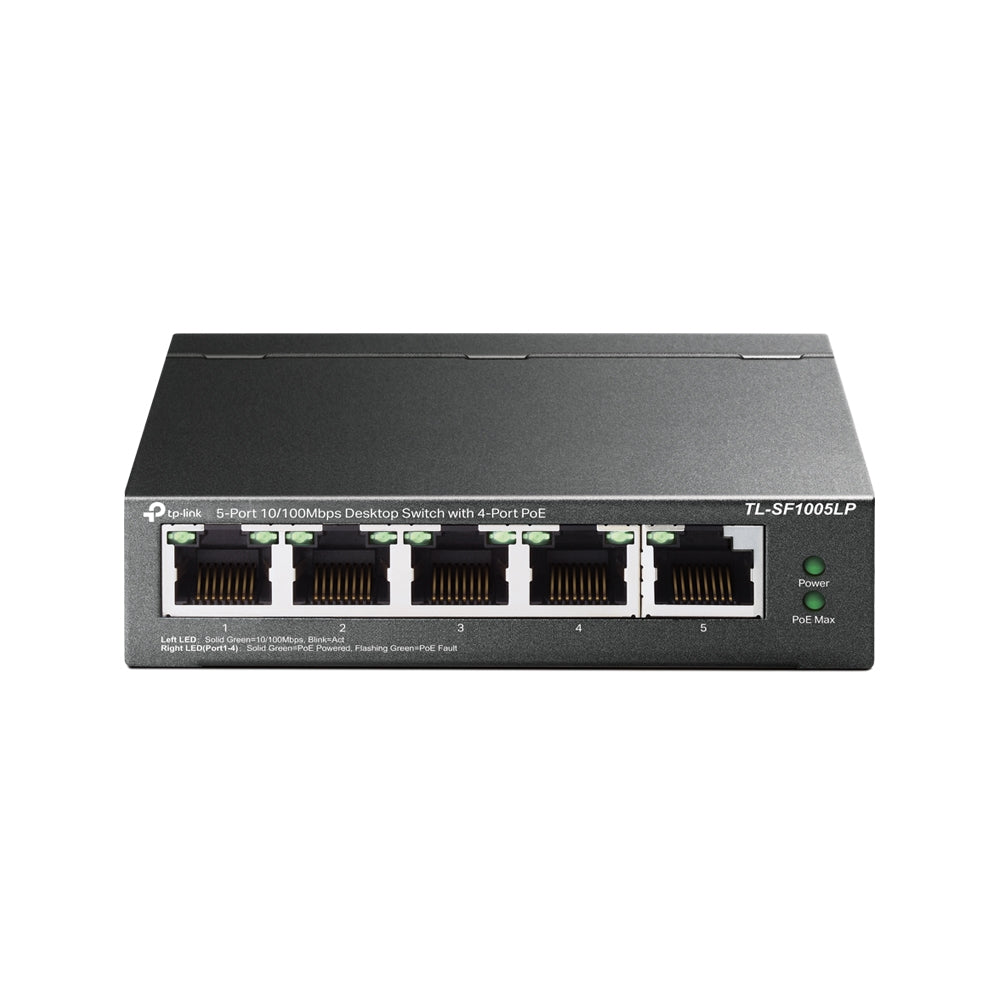

  • 5 x 10/100 Mbps RJ45 ports (Ports 1–4 support PoE)
• Power Supply:
  • External power adapter (Output: 53.5V DC / 0.81A)
• Switching Capacity:
  • 1 Gbps
• Packet Forwarding Rate:
  • Up to 0.744 Mpps
• MAC Address Table Size:
  • Supports up to 2,000 MAC addresses
• Jumbo Frame Support:
  • Up to 2 KB
• Dimensions:
  • Approximately 100 x 98 x 25 mm (3.9 x 3.9 x 1.0 in)
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% RH non-condensing

Applications

The TL-SF1005LP is particularly well-suited for:

• IP surveillance systems in offices or homes.
• Connecting VoIP phones.
• Powering wireless access points.
• Simplifying network setups in small businesses.
