TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE+

The TP-Link TL-SG1005P is a versatile 5-port Gigabit desktop switch designed for seamless network expansion in homes and small offices. With four Power over Ethernet (PoE+) ports, this switch can deliver both data and power over a single cable, making it ideal for powering devices such as IP cameras, access points, and VoIP phones.

Key Features

• 5 Gigabit Ports:

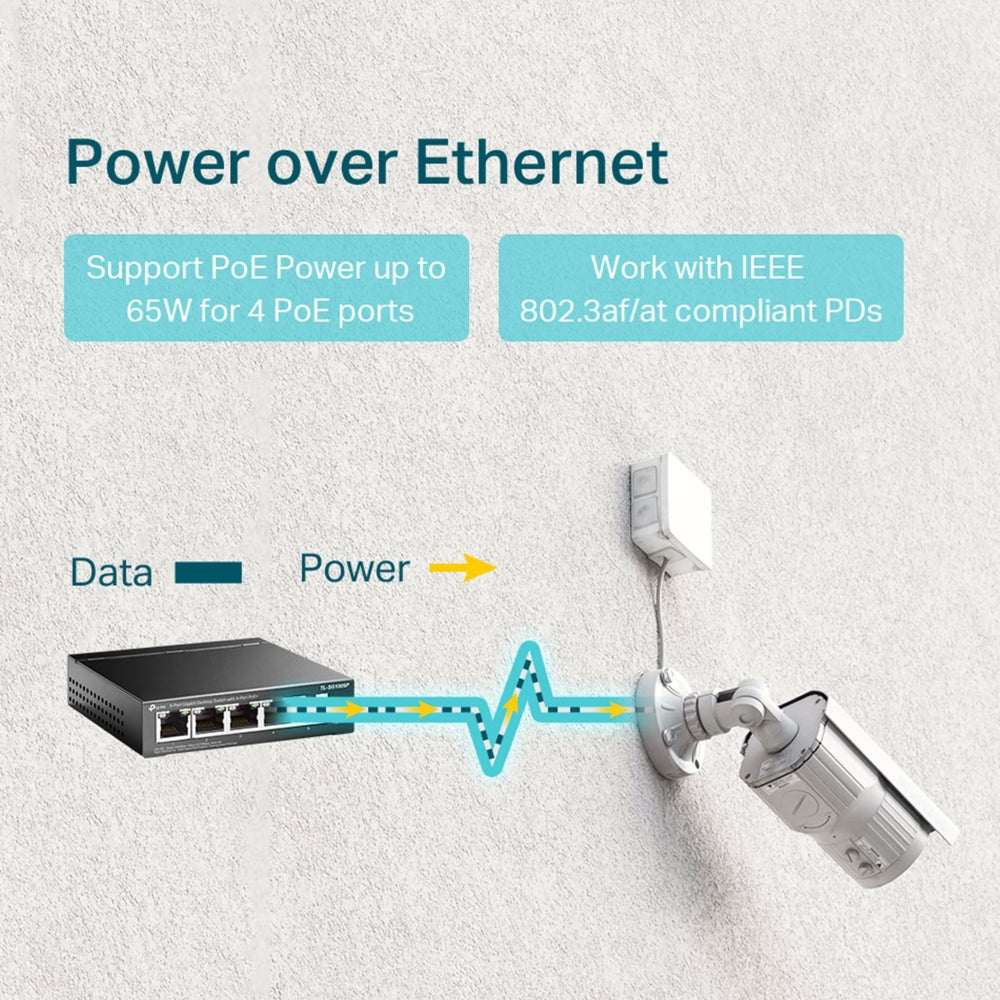

  • Equipped with 5 x 10/100/1000 Mbps RJ45 ports, including 4 PoE+ ports that support IEEE 802.3af/at standards, providing up to 30W per port and a total PoE budget of 65W.
• Plug and Play Installation:

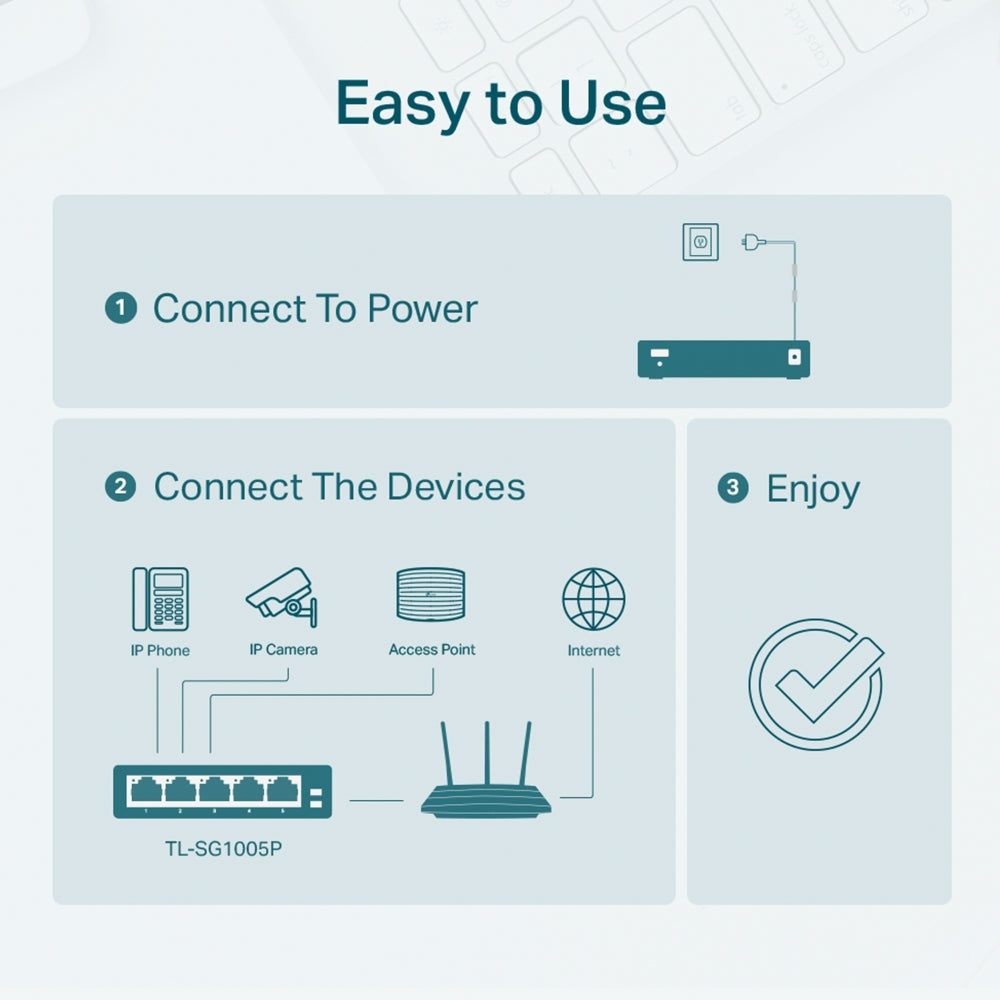

  • Simple setup with no configuration required; just connect your devices and start using the network immediately.
• Fanless Design:
  • The fanless architecture ensures silent operation, making it suitable for noise-sensitive environments.
• Advanced Features:

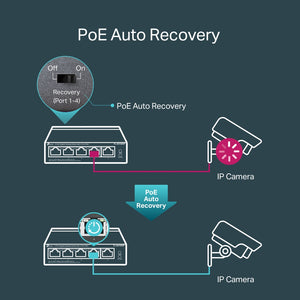

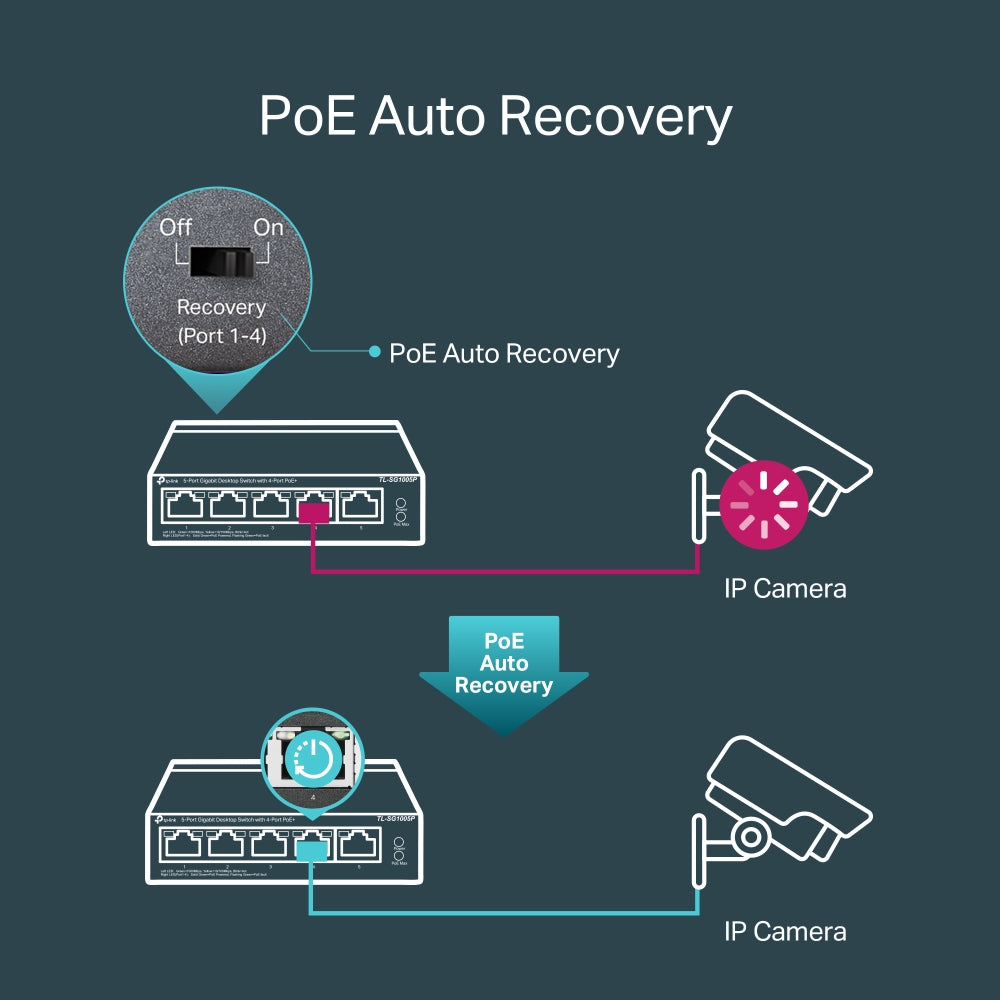

  • Supports 802.1p/DSCP QoS for prioritizing traffic, IGMP Snooping for efficient multicast data handling, and PoE Auto Recovery to manage power supply effectively.
• Extended Transmission Distance:
  • Features an extend mode that allows PoE power supply and data transmission up to 250 meters on ports 1-2, making it suitable for larger installations.

Specifications

• Model: TP-Link TL-SG1005P
• Ports:

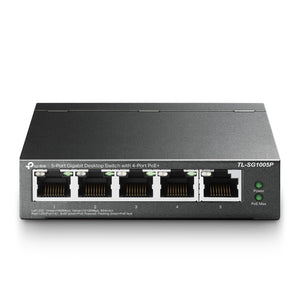

  • 4 x PoE+ (10/100/1000 Mbps) RJ45 Ports
  • 1 x Non-PoE (10/100/1000 Mbps) RJ45 Port
• Power Supply:

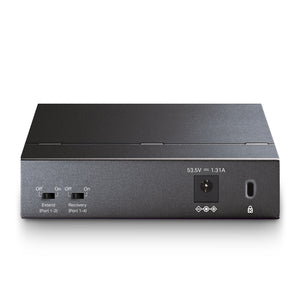

  • External power adapter (Output: 54V DC / 1.3A)
• Dimensions:
  • Approximately 100 x 98 x 25 mm (3.9 x 3.9 x 1.0 in)
• Weight:
  • Approximately 0.55 kg

Performance

• Switching Capacity:
  • Up to 10 Gbps
• Packet Forwarding Rate:
  • Up to 7.44 Mpps
• MAC Address Table:
  • Supports up to 2K MAC addresses
• Jumbo Frame Support:
  • Up to 9 KB

Connectivity Features

• Standards Supported:
  • Compliant with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x.

Package Contents

• TP-Link TL-SG1005P Switch
• Power Adapter
• Quick Installation Guide
