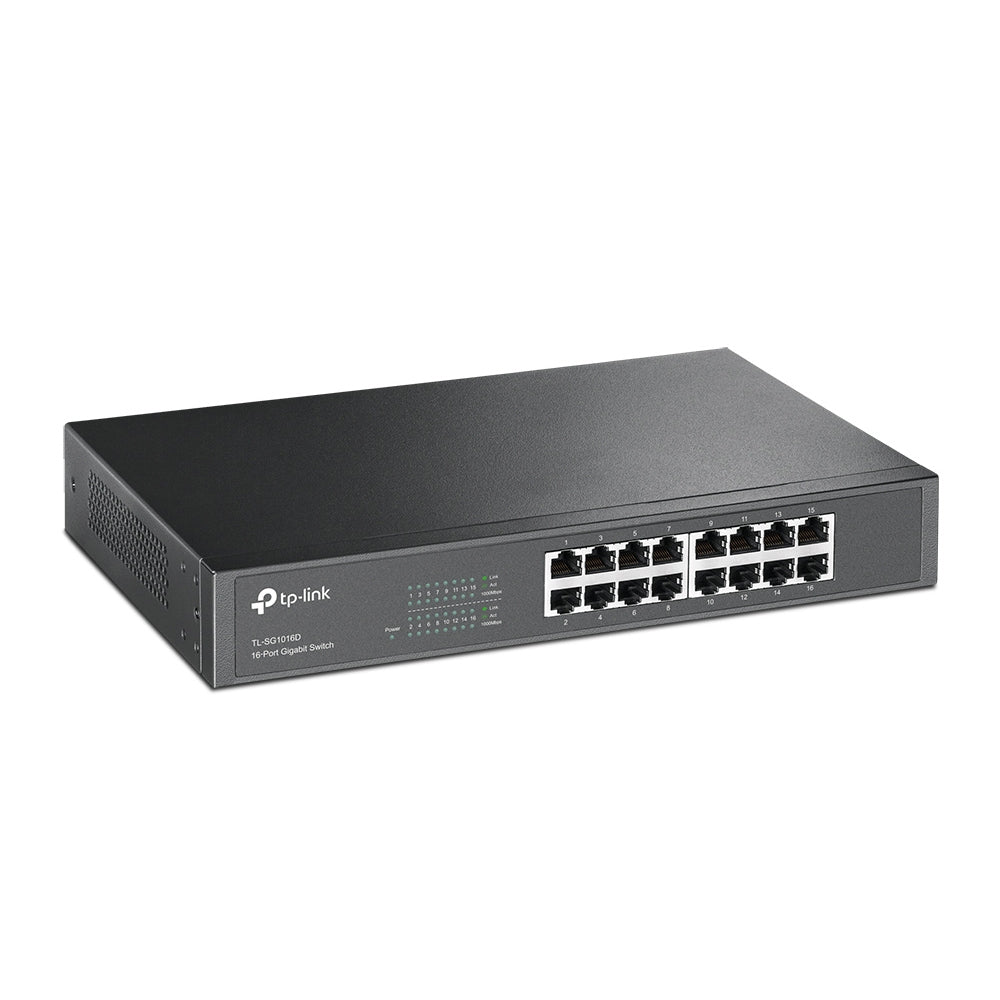

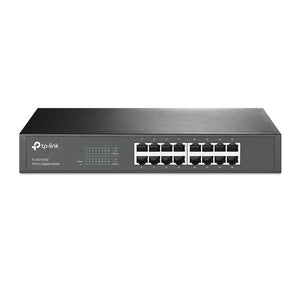

TP-Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch

The TP-Link TL-SG1016D is a high-performance 16-port Gigabit switch designed for seamless connectivity in home and small to medium-sized business environments. This unmanaged switch provides an easy way to upgrade your network to gigabit speeds, ensuring efficient data transfer and reliable performance.

Key Features

• 16 Gigabit Ports:
  • Equipped with 16 10/100/1000Mbps RJ45 ports, the TL-SG1016D supports auto-negotiation and auto-MDI/MDIX, allowing for easy plug-and-play installation without worrying about cable types.
• High Switching Capacity:
  • Offers a switching capacity of 32 Gbps, ensuring maximum throughput and efficient data handling across all connected devices.
• Fanless Design:
  • The fanless architecture ensures silent operation, making it suitable for noise-sensitive environments.
• Energy-Efficient Technology:
  • Incorporates innovative energy-saving features that can reduce power consumption by up to 40%, making it an eco-friendly choice for your network.
• Jumbo Frame Support:
  • Supports jumbo frames of up to 10KB, enhancing performance for large file transfers.

Specifications

• Model: TP-Link TL-SG1016D
• Ports:
  • 16 x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Power Supply:
  • 100-240VAC, 50/60Hz
• Power Consumption:
  • Maximum: 9.26W (220V/50Hz)
• Dimensions:
  • Approximately 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 in)
• Weight:
  • Approximately 1.2 kg

Performance

• Packet Forwarding Rate:
  • Up to 23.8 Mpps
• MAC Address Table:
  • Supports up to 8K MAC addresses

Connectivity Features

• Standards Supported:
  • Compliant with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x.

Package Contents

• TP-Link TL-SG1016D Switch
• Power Adapter
• Quick Installation Guide
