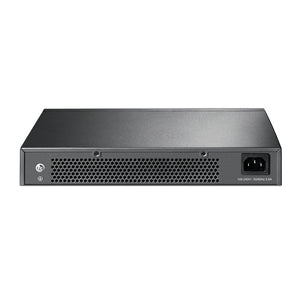

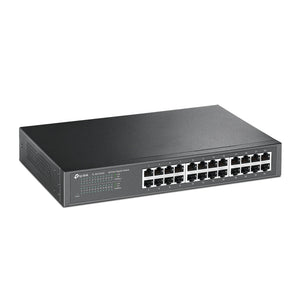

TP-Link TL-SG1024D 24-Port Gigabit Desktop/Rackmount Switch

The TP-Link TL-SG1024D is a high-performance 24-port Gigabit switch designed to enhance network connectivity in homes and small to medium-sized businesses. This unmanaged switch provides a seamless upgrade to Gigabit Ethernet, ensuring efficient data transfer and reliable performance.

Key Features

• 24 Gigabit Ports:
  • Equipped with 24 10/100/1000Mbps RJ45 ports, supporting auto-negotiation and auto-MDI/MDIX for easy plug-and-play installation without the need for crossover cables.
• High Switching Capacity:
  • Offers a switching capacity of up to 48 Gbps, allowing for maximum throughput and efficient data handling across all connected devices.
• Fanless Design:
  • The fanless architecture ensures silent operation, making it suitable for noise-sensitive environments.
• Energy-Efficient Technology:
  • Incorporates innovative energy-saving features that can reduce power consumption by up to 40%, making it an eco-friendly choice for your network.
• Jumbo Frame Support:
  • Supports jumbo frames of up to 10KB, improving performance for large file transfers.

Specifications

• Model: TP-Link TL-SG1024D
• Ports:
  • 24 x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Power Supply:
  • 100-240VAC, 50/60Hz
• Power Consumption:
  • Maximum: 14.6W (220V/50Hz)
• Dimensions:
  • Approximately 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 in)
• Weight:
  • Approximately 1.2 kg

Performance

• Packet Forwarding Rate:
  • Up to 35.7 Mpps
• MAC Address Table:
  • Supports up to 8K MAC addresses

Connectivity Features

• Standards Supported:
  • Compliant with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x.

Package Contents

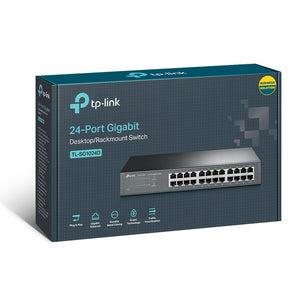

• TP-Link TL-SG1024D Switch
• Power Adapter
• Quick Installation Guide
