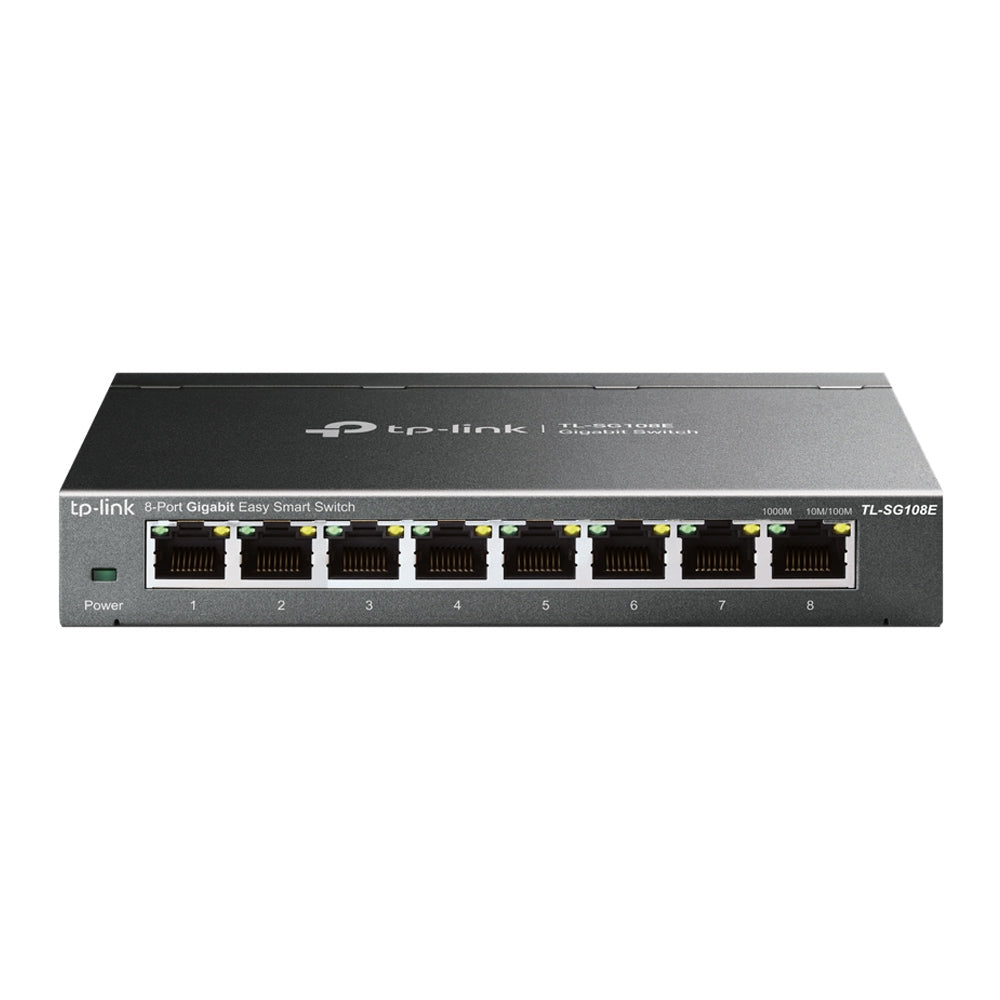

TP-Link TL-SG108E 8-Port Gigabit Easy Smart Switch

The TP-Link TL-SG108E is an 8-port Gigabit Easy Smart Switch designed to provide enhanced network management and performance for small to medium-sized businesses. With its user-friendly features and robust capabilities, this switch is ideal for expanding your network efficiently.

Key Features

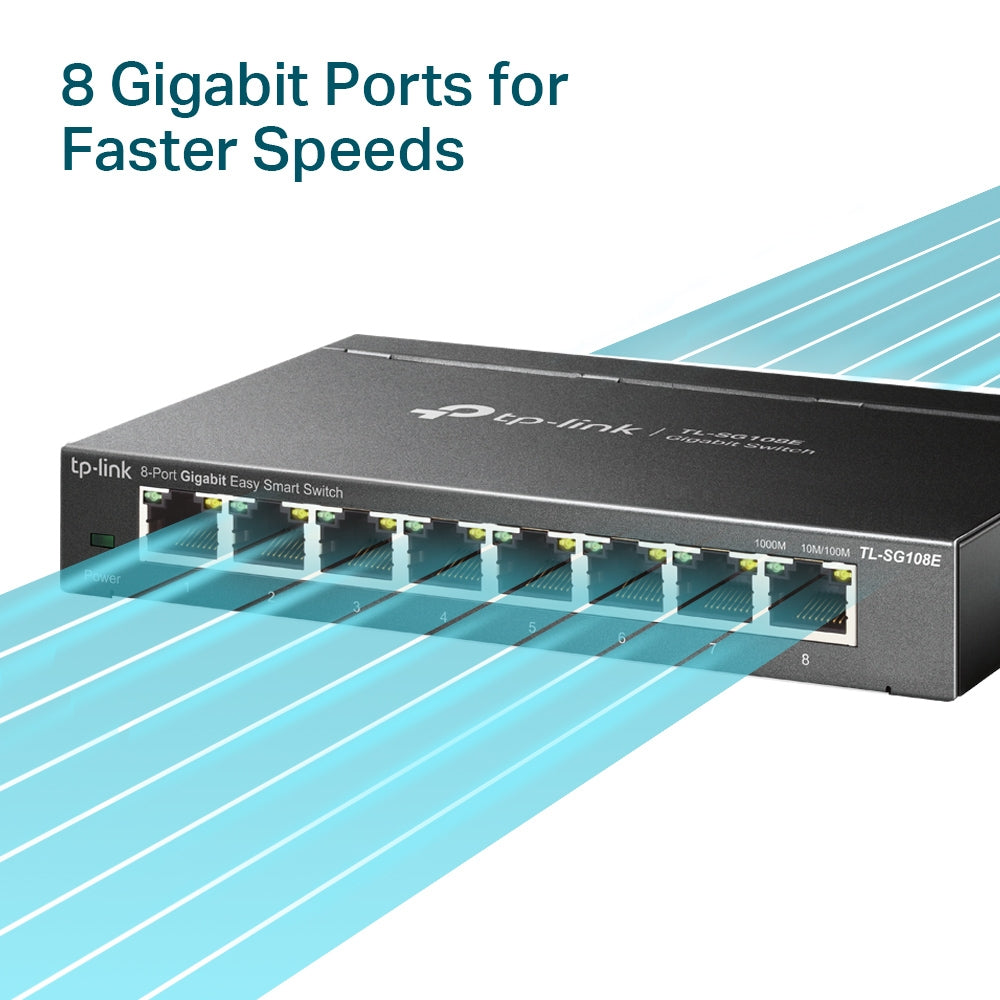

• 8 Gigabit Ports:

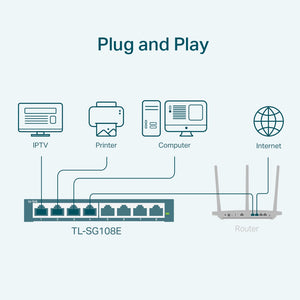

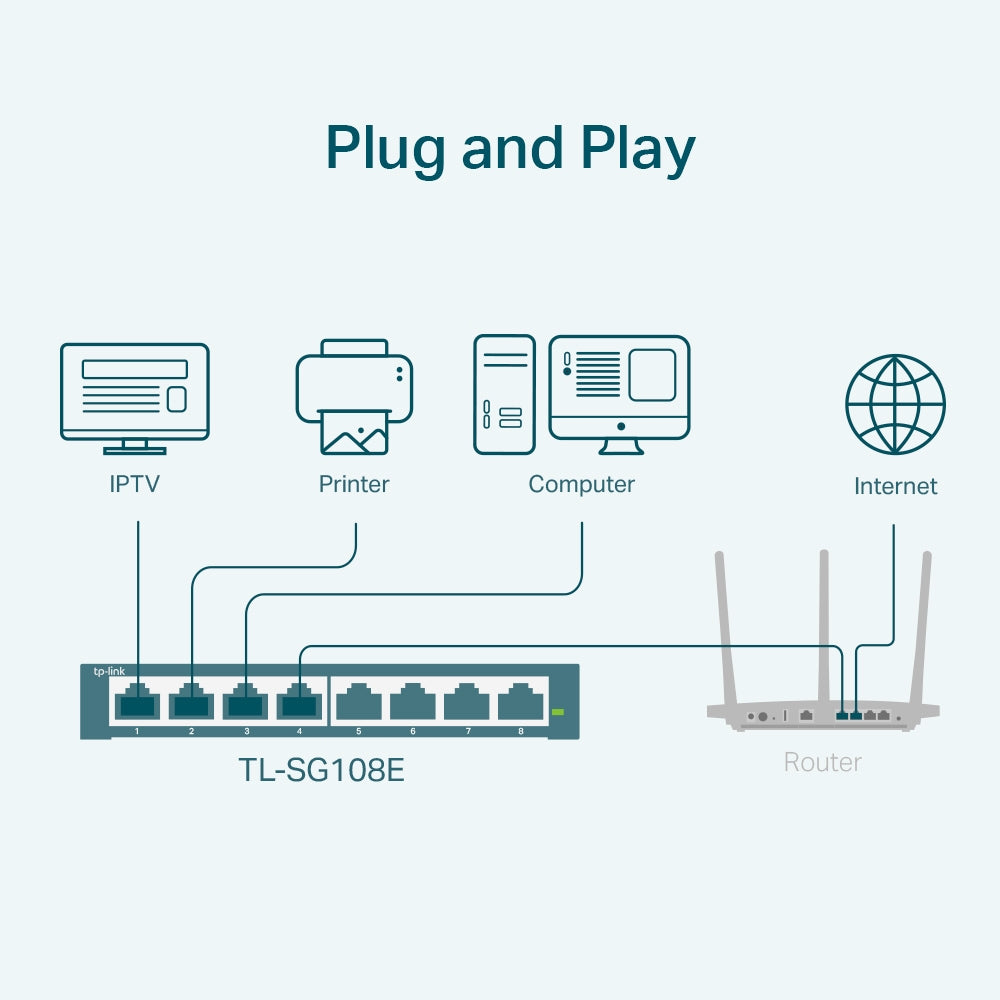

  • Equipped with 8 x 10/100/1000 Mbps RJ45 ports, supporting auto-negotiation and Auto-MDI/MDIX for easy installation without the need for crossover cables.
• Intelligent Management:
  • Offers a web-based interface and downloadable utility for easy management, including features such as VLAN, QoS (Quality of Service), IGMP Snooping, and port mirroring.
• Energy-Efficient Design:
  • Utilizes Green Ethernet technology to reduce power consumption by up to 80%, making it an eco-friendly choice for your network.

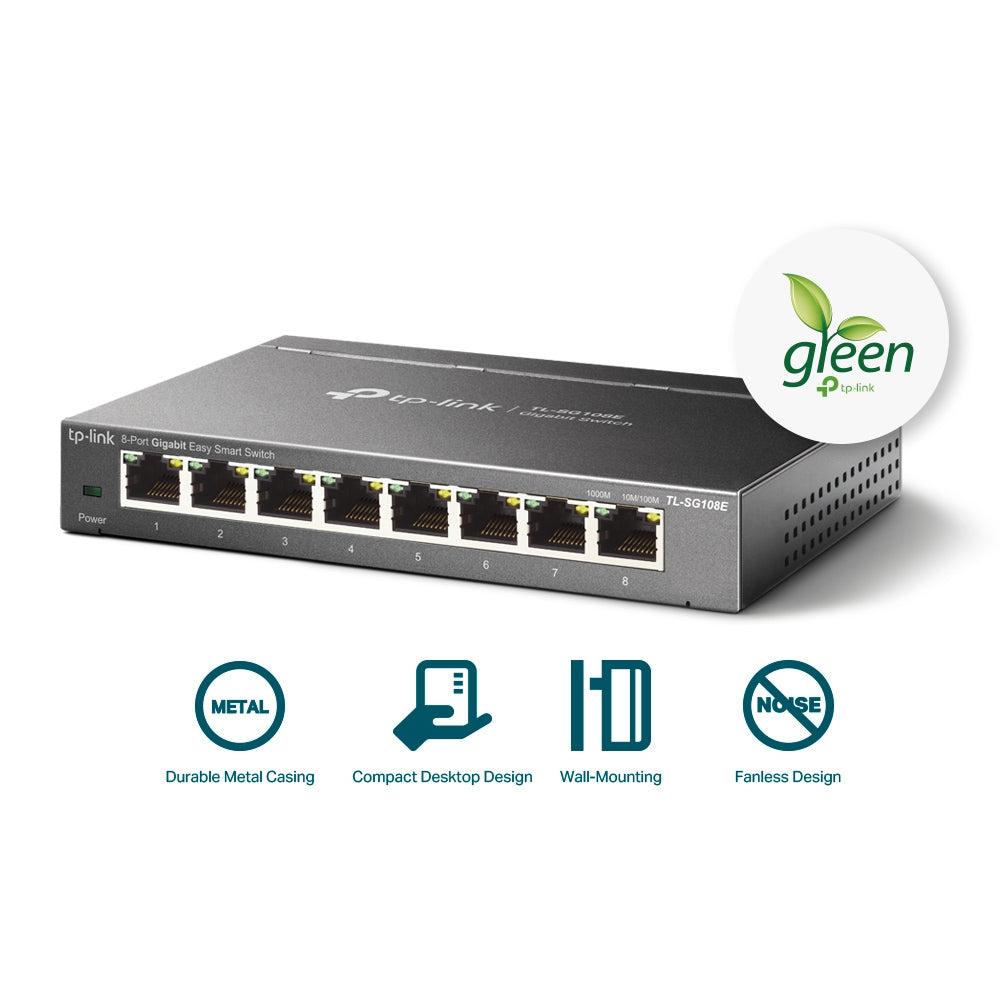

• Fanless Operation:
  • The fanless design ensures silent operation, making it suitable for noise-sensitive environments.
• Robust Performance:
  • Provides a switching capacity of up to 16 Gbps and a packet forwarding rate of 11.9 Mpps, ensuring efficient data handling across all connected devices.

Specifications

• Model: TP-Link TL-SG108E
• Ports:
  • 8 x 10/100/1000 Mbps RJ45 ports (Auto Negotiation/Auto MDI/MDIX)
• Power Supply:

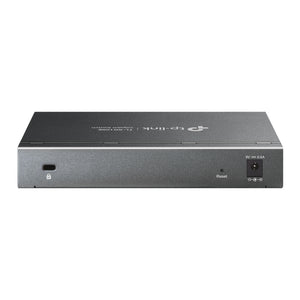

  • External power adapter (Output: 9V DC / 0.6A)
• Dimensions:
  • Approximately 158 x 101 x 25 mm (6.2 x 4.0 x 1.0 in)
• Max Power Consumption:
  • Maximum: 5.46W (220V/50Hz)

Performance

• Switching Capacity:
  • Up to 16 Gbps
• Packet Forwarding Rate:
  • Up to 11.9 Mpps
• MAC Address Table:
  • Supports up to 4K MAC addresses
• Packet Buffer Memory:
  • Approximately 1.5 MB
• Jumbo Frame Support:
  • Up to 16 KB, enhancing performance for large data transfers.

Connectivity Features

• Standards Supported:
  • Compliant with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, and IEEE 802.1p.

Package Contents

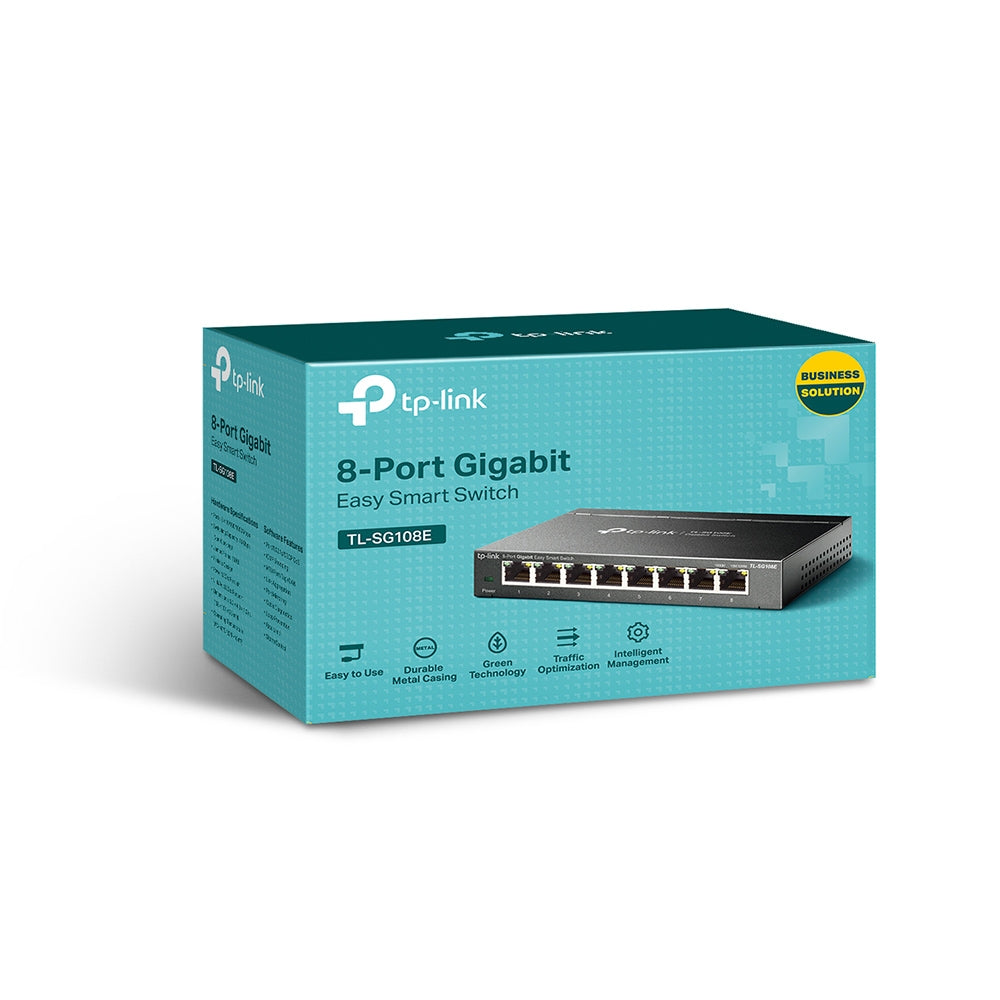

• TP-Link TL-SG108E Switch
• Power Adapter
• Quick Installation Guide
