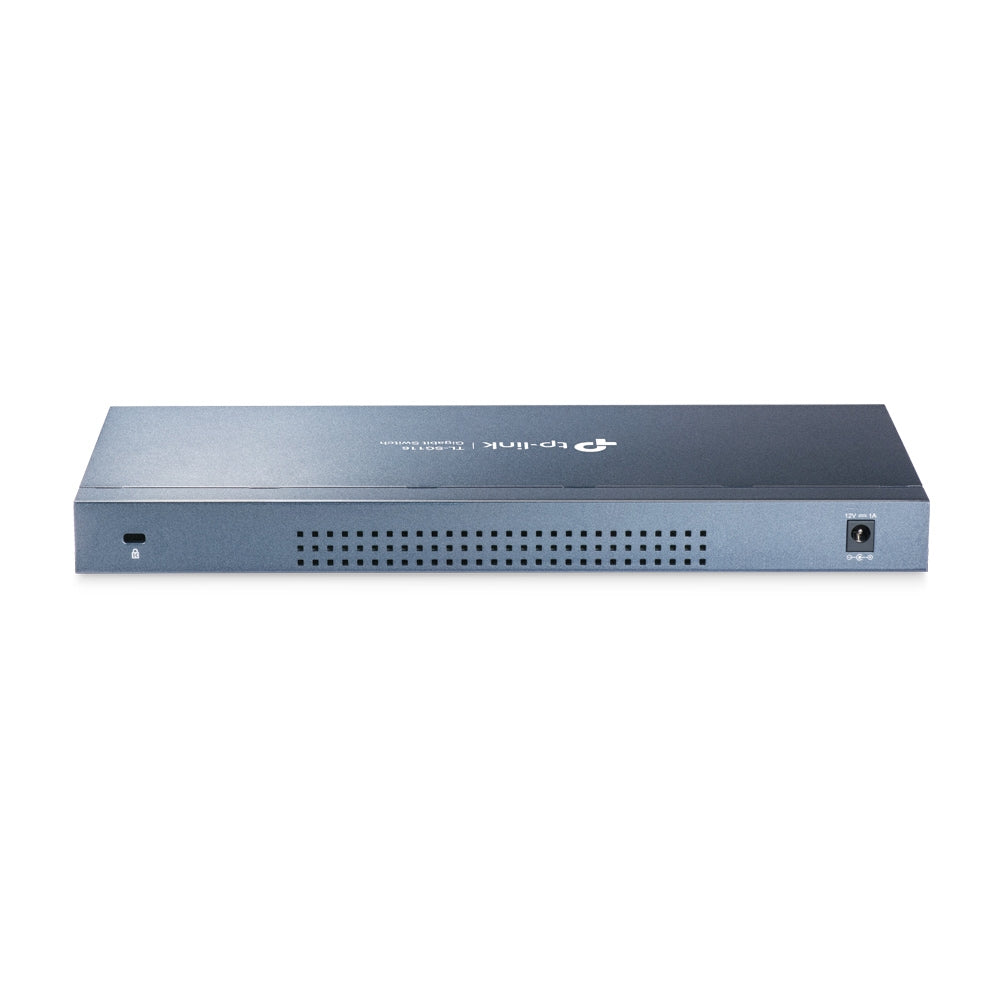

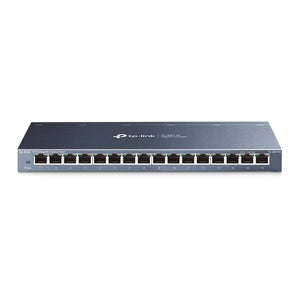

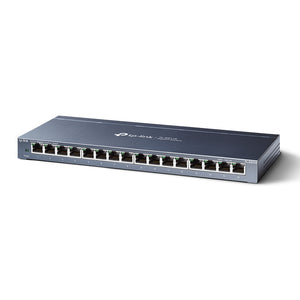

TP-Link TL-SG116 16-Port Gigabit Desktop Switch

The TP-Link TL-SG116 is a reliable 16-port Gigabit desktop switch designed to enhance network performance in homes and small to medium-sized businesses. With its plug-and-play design, this unmanaged switch provides seamless connectivity for multiple devices, making it ideal for expanding your network.

Key Features

• 16 Gigabit Ports:
  • Equipped with 16 10/100/1000Mbps RJ45 ports, supporting auto-negotiation and auto-MDI/MDIX, allowing for easy connection of devices without worrying about cable types.
• Energy-Efficient Design:
  • Incorporates green Ethernet technology that automatically adjusts power consumption based on port status and cable length, helping to reduce energy costs.
• Fanless Operation:
  • The fanless design ensures silent operation, making it suitable for noise-sensitive environments.
• Plug-and-Play Installation:
  • Simple setup with no configuration required; just connect your devices and start using the network immediately.
• Robust Performance:
  • Supports IEEE 802.3x flow control for reliable data transfer and features a switching capacity of 32 Gbps.

Specifications

• Model: TP-Link TL-SG116
• Ports:
  • 16 x 10/100/1000Mbps RJ45 ports
• Power Supply:
  • External power adapter (12VDC / 1.0A)
• Dimensions:
  • Approximately 286 x 111.7 x 25.4 mm (11.26 x 4.4 x 1.0 in)
• Weight:
  • Approximately 0.9 kg

Connectivity

• Standards Supported:
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p.
• MAC Address Table:
  • Supports up to 8K MAC addresses.

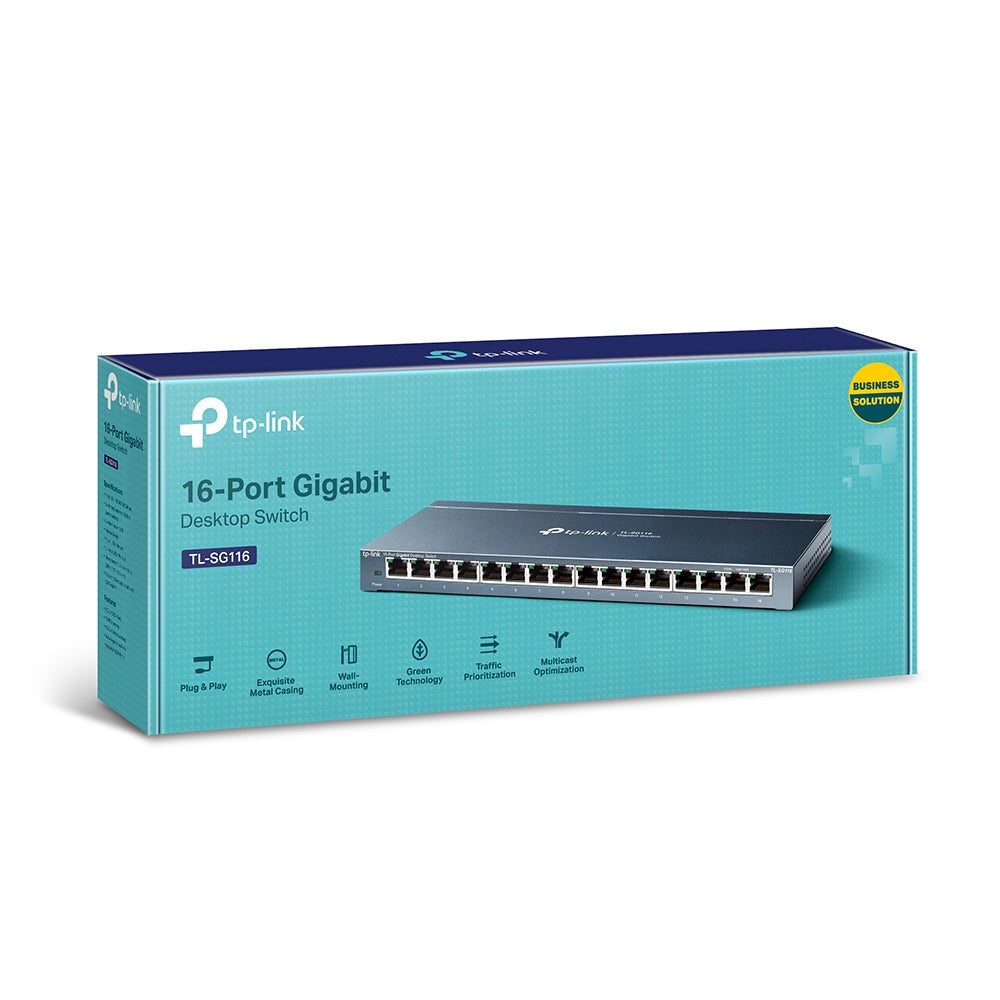

Package Contents

• TP-Link TL-SG116 Switch
• Power Adapter
• Quick Installation Guide
