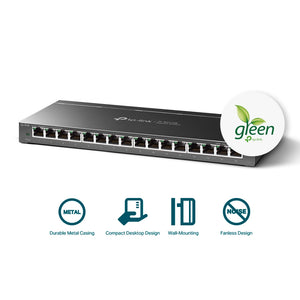

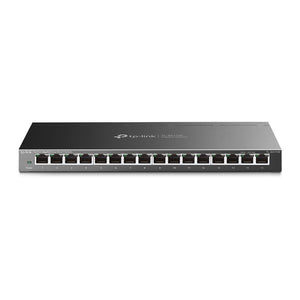

TP-Link TL-SG116E 16-Port Gigabit Easy Smart Switch

The TP-Link TL-SG116E is a versatile 16-port Gigabit Easy Smart Switch designed for seamless network connectivity in home and small business environments. With its advanced features and robust performance, this switch provides an efficient solution for expanding your wired network.

Key Features

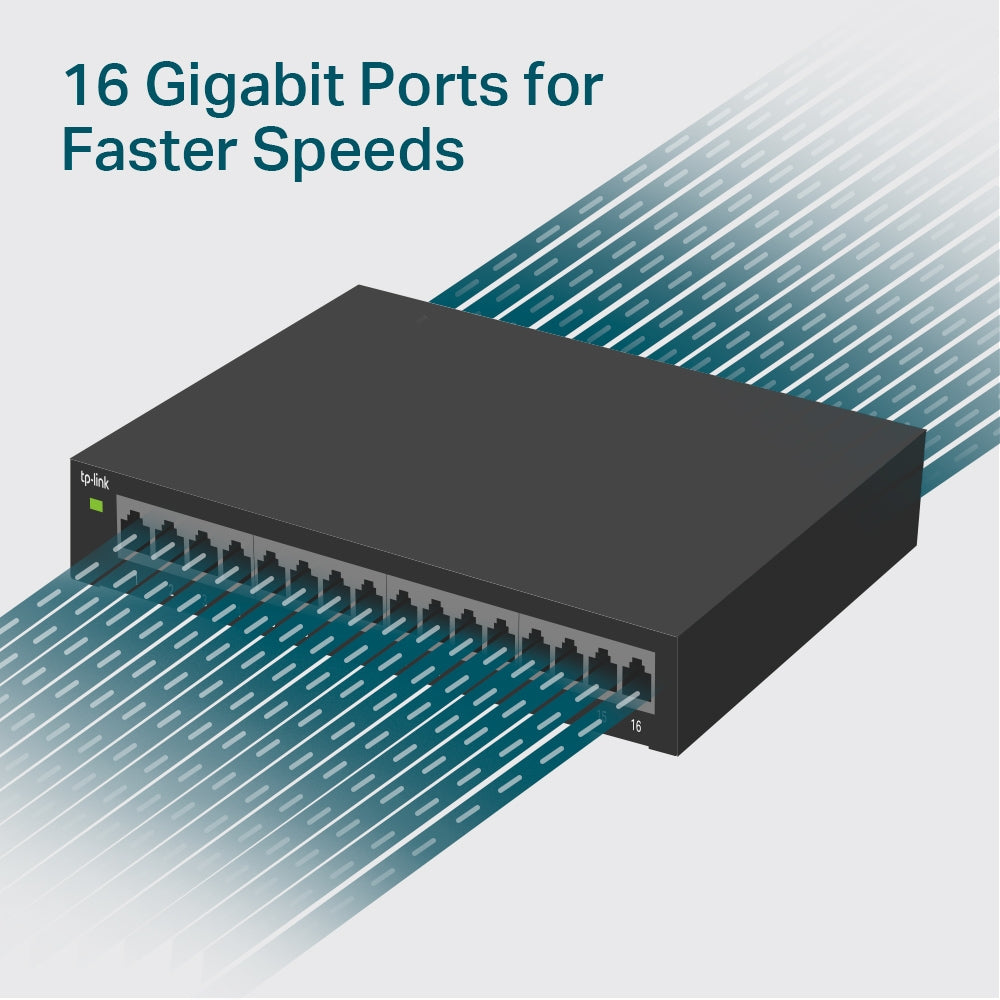

• 16 Gigabit Ports:
  • Equipped with 16 10/100/1000Mbps RJ45 ports, allowing for high-speed connections and supporting auto-negotiation and auto-MDI/MDIX for ease of use.

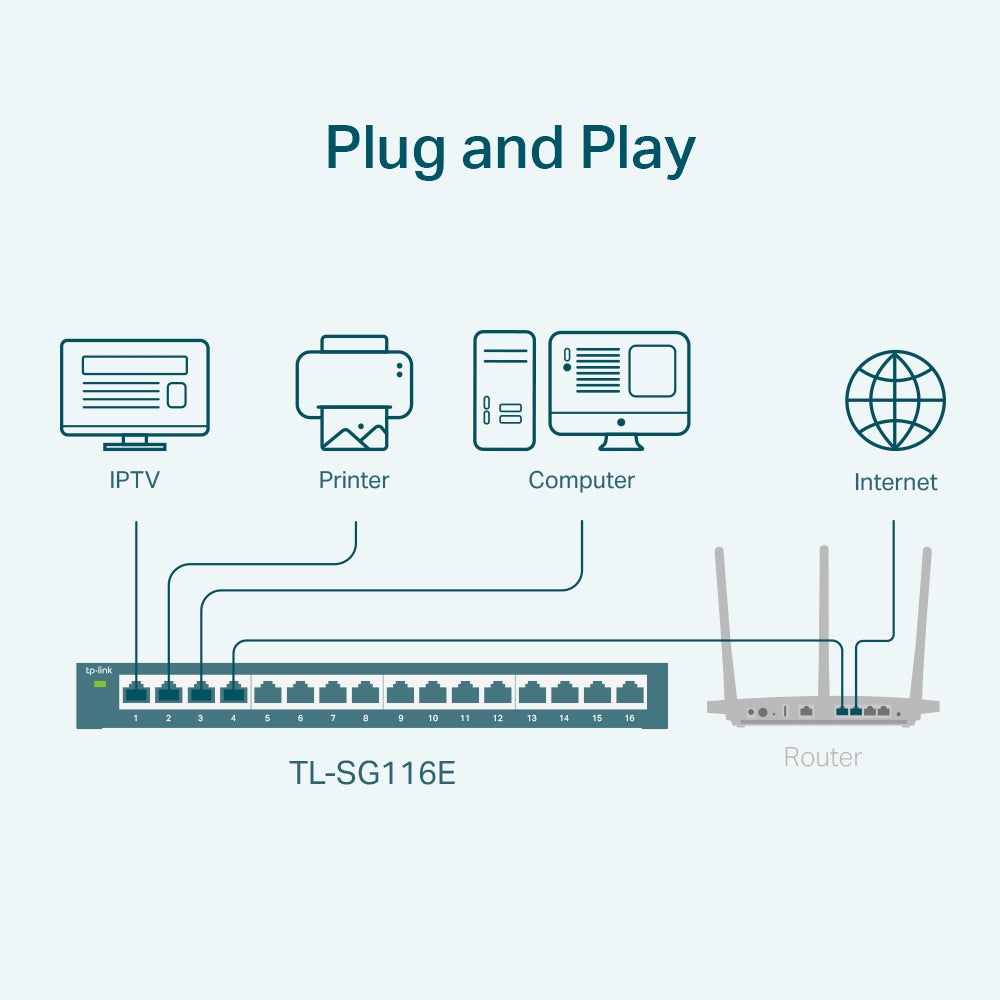

• Plug and Play:
  • Simple installation with no configuration required, making it easy to set up and connect devices quickly.
• Intelligent Management:
  • Features a web user interface and downloadable utility for intelligent management, including QoS (Quality of Service), IGMP Snooping, and VLAN support.
• Durable Metal Casing:
  • Constructed with high-quality metal casing to ensure durability and a professional appearance, suitable for various environments.
• Energy-Efficient Design:
  • Incorporates green technology that automatically adjusts power consumption based on link status and cable length, helping to reduce energy costs.

Specifications

• Model: TP-Link TL-SG116E
• Ports:
  • 16 x 10/100/1000Mbps RJ45 Ports
• Power Supply:
  • External power adapter (12VDC/1.0A)
• Dimensions:
  • Approximately 286 x 111.7 x 25.4 mm (11.3 x 4.4 x 1.0 in)
• Max Power Consumption:
  • 9.19W (220V/50Hz)

Performance

• Switching Capacity:
  • Up to 32 Gbps
• Packet Forwarding Rate:
  • Approximately 23.81 Mpps
• MAC Address Table:
  • Supports up to 8K MAC addresses
• Jumbo Frame Support:
  • Up to 9KB

Connectivity Features

• Quality of Service (QoS):
  • Supports port-based, 802.1p, and DSCP priority to ensure clear voice and video applications.
• VLAN Support:
  • Supports up to 32 VLANs simultaneously for enhanced network segmentation.

Package Contents

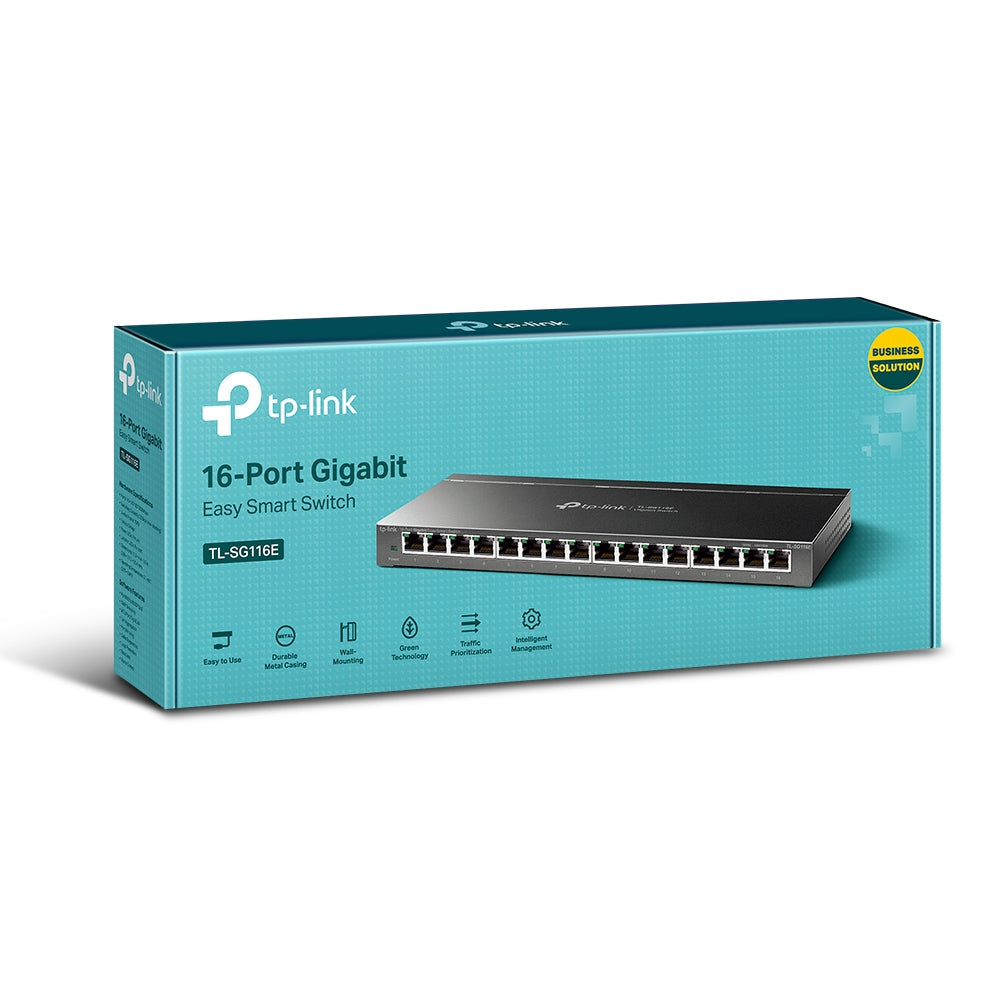

• TP-Link TL-SG116E Switch
• Power Adapter
• Installation Guide
• Rubber Feet
