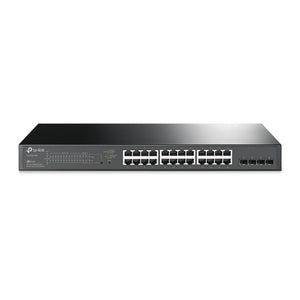

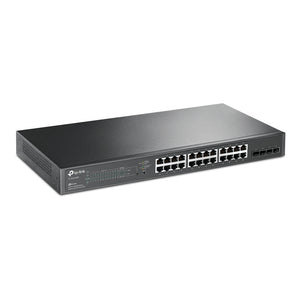

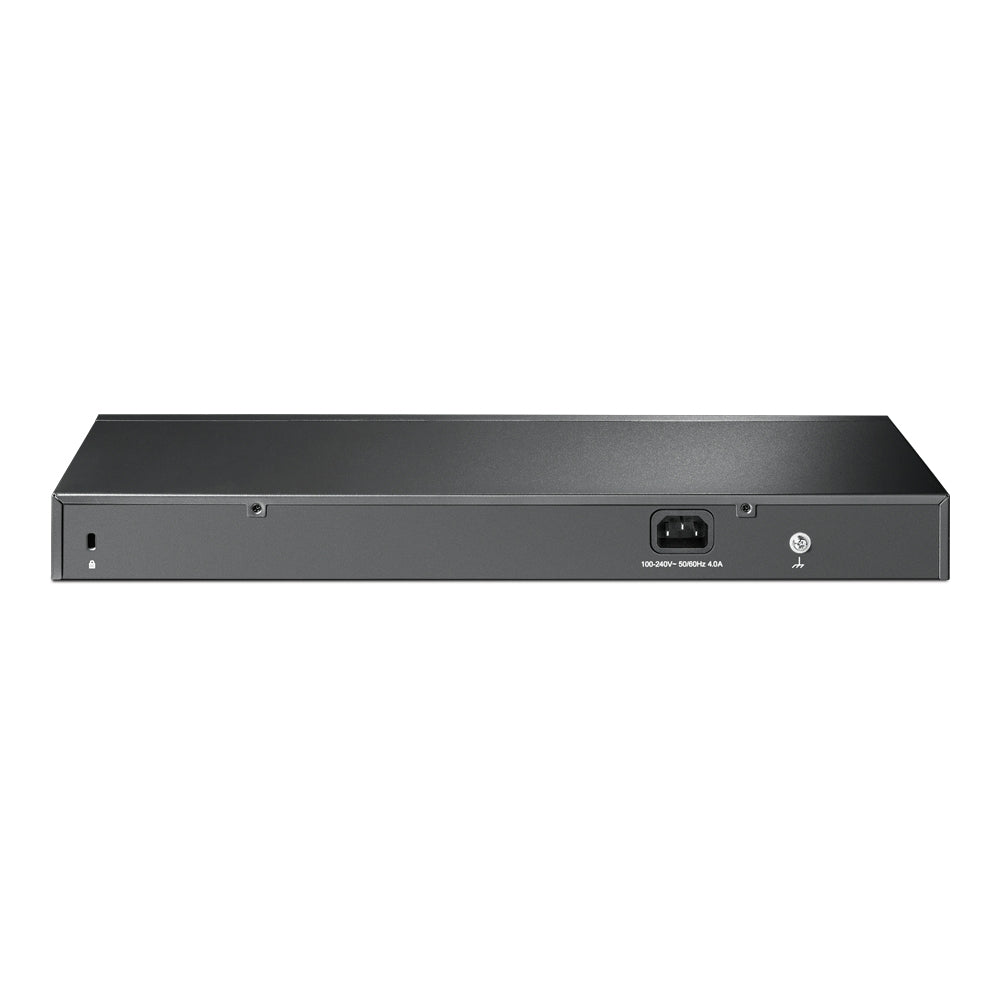

TP-Link TL-SG2428P JetStream 28-Port Gigabit Smart PoE Switch

The TP-Link TL-SG2428P is a powerful 28-port Gigabit smart switch designed for efficient network management and high-speed connectivity. With 24 PoE+ ports and 4 SFP slots, this switch is ideal for small to medium-sized businesses looking to enhance their networking capabilities.

Key Features

• 24 PoE+ Ports:
  • Equipped with 24 x 10/100/1000 Mbps RJ45 ports that support IEEE 802.3at/af standards, providing up to 30W per port and a total PoE budget of 250W for powering devices like IP cameras and access points.
• 4 Gigabit SFP Slots:
  • Includes 4 SFP slots for flexible uplink options, allowing for the integration of fiber connections to extend your network.
• High Switching Capacity:
  • Offers a switching capacity of up to 56 Gbps, ensuring optimal data flow and performance across all connected devices.
• Packet Forwarding Rate:
  • Capable of forwarding packets at a rate of 41.7 Mpps, facilitating smooth data transmission.
• Intelligent Management Features:
  • Supports advanced features such as VLAN, QoS, IGMP Snooping, and link aggregation for enhanced network management.

Specifications

• Model: TP-Link TL-SG2428P
• Ports:
  • 24 x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 4 x Gigabit SFP Slots
• Power Supply:
  • Input: 100-240V AC, 50/60Hz
• Dimensions:
  • Approximately 440 x 220 x 44 mm (17.3 x 8.7 x 1.73 in)
• Weight:
  • Approximately 4.2 kg

Performance

• MAC Address Table:
  • Supports up to 8K MAC addresses.
• Jumbo Frame Support:
  • Capable of handling jumbo frames up to 9 KB.
• Packet Buffer Memory:
  • Equipped with 4.1 Mbit of packet buffer memory.

Connectivity Features

• Management Features:
  • Web-based GUI and Command Line Interface (CLI) for easy management.
  • Supports SNMP v1/v2c/v3 for network monitoring and management.

Package Contents

• TP-Link TL-SG2428P Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
