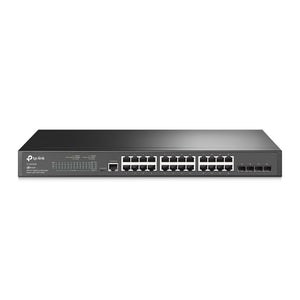

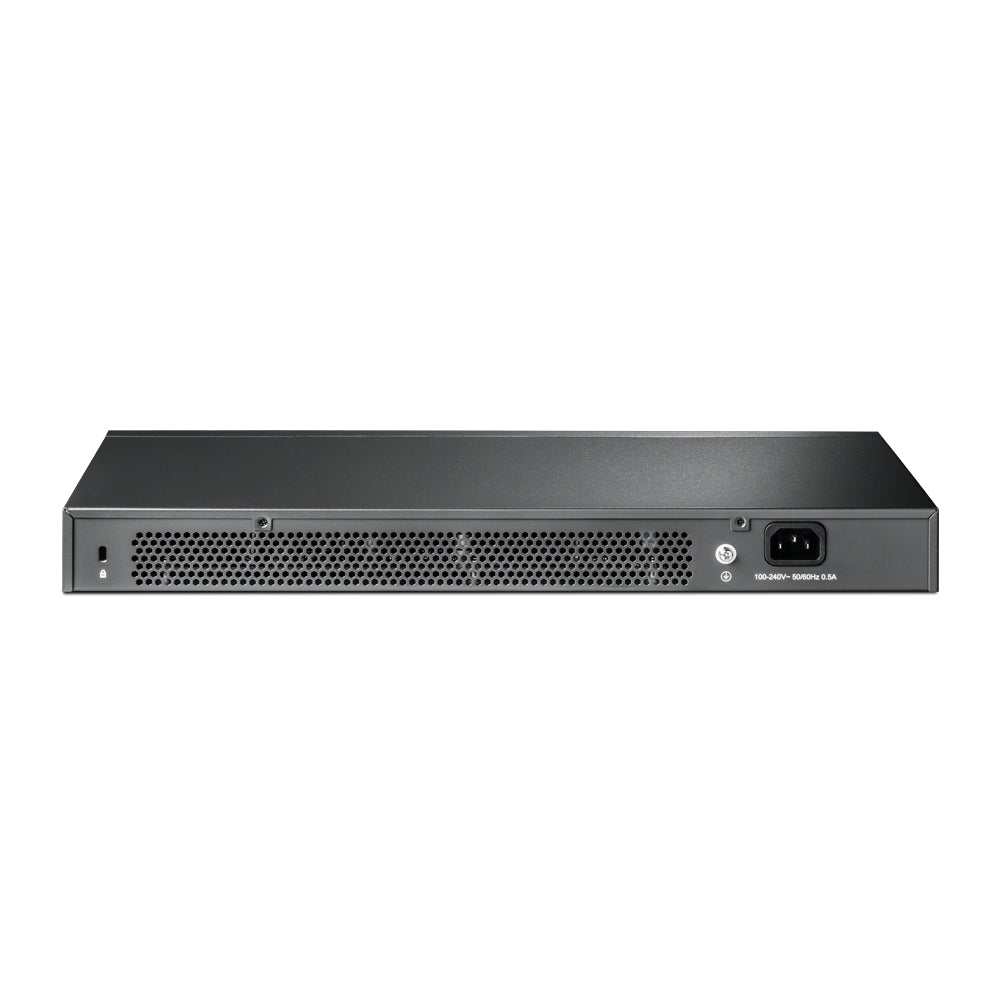

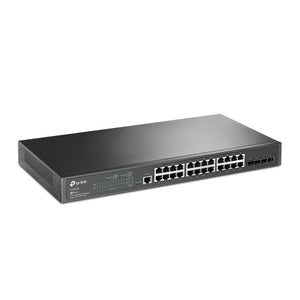

TP-Link TL-SG3428 JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots

The TP-Link TL-SG3428 is a robust 24-port Gigabit L2 managed switch designed for efficient network management and high-speed connectivity. Ideal for small to medium-sized businesses, this switch offers advanced features that enhance network performance and reliability.

Key Features

• 24 Gigabit Ports:
  • Equipped with 24 x 10/100/1000 Mbps RJ45 ports, providing reliable wired connections for various devices.
• 4 SFP Slots:
  • Includes 4 Gigabit SFP slots for flexible uplink options, allowing for the integration of fiber connections to extend your network.
• High Switching Capacity:
  • Offers a switching capacity of up to 128 Gbps, ensuring optimal data flow and performance across all connected devices.
• Packet Forwarding Rate:
  • Capable of forwarding packets at a rate of 95.23 Mpps, facilitating smooth data transmission.
• Fanless Design:
  • The fanless architecture ensures silent operation, making it suitable for noise-sensitive environments.
• Energy-Efficient Operation:
  • Designed to consume minimal power while maintaining high performance, with a maximum power consumption of 23.6 W.

Specifications

• Model: TP-Link TL-SG3428
• Ports:
  • 24 x 10/100/1000 Mbps RJ45 Ports
  • 4 x Gigabit SFP Slots
  • 1 x RJ45 Console Port
  • 1 x Micro-USB Console Port
• Power Supply:
  • Input: 100-240 V AC, 50/60 Hz
• Dimensions:
  • Approximately 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in)
• Weight:
  • Approximately 4.368 kg

Performance

• MAC Address Table:
  • Supports up to 16K MAC addresses.
• Jumbo Frame Support:
  • Capable of handling jumbo frames up to 9 KB.
• Packet Buffer Memory:
  • Equipped with 12 Mbit of packet buffer memory.

Connectivity Features

• Management Features:
  • Web-based GUI and Command Line Interface (CLI) for easy management.
  • Supports SNMP v1/v2c/v3 for network monitoring and management.

Package Contents

• TP-Link TL-SG3428 Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
