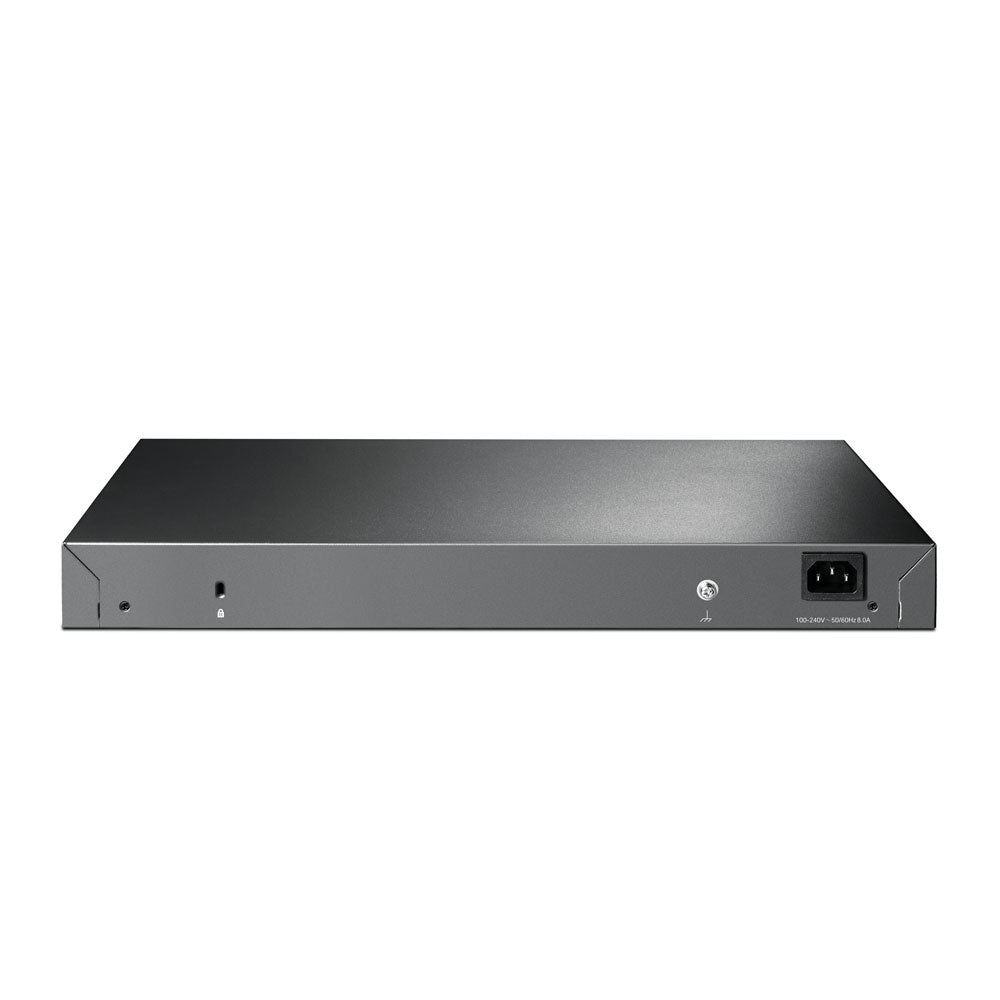

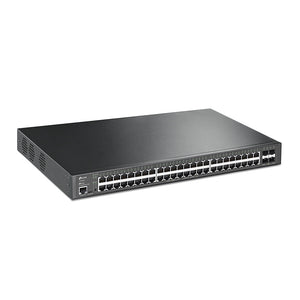

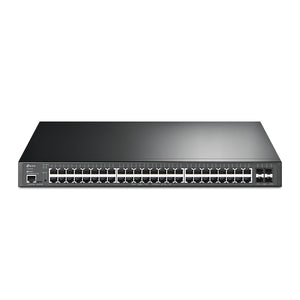

TP-Link TL-SG3452XP 48-Port Gigabit L2+ Managed Switch with 4 SFP+ Slots and 48 PoE+ Ports

The TP-Link TL-SG3452XP is a high-performance 48-port Gigabit L2+ managed switch designed for small to medium-sized business networks. It features 4 SFP+ slots for 10 Gigabit fiber uplinks and 48 Power over Ethernet (PoE+) ports, making it ideal for powering devices such as IP cameras, wireless access points, and VoIP phones.

Key Features

• Port Configuration:
  • 48 x 10/100/1000 Mbps RJ45 PoE+ ports compliant with IEEE 802.3at/af.
  • 4 x 10G SFP+ slots for high-speed fiber uplink connections.
  • 1 x RJ45 Console Port and 1 x Micro-USB Console Port for management access.
• PoE Power Budget:
  • Each PoE port can deliver up to 30W, with a total PoE power budget of 500W, allowing multiple powered devices to be connected without additional power sources.
• Performance:
  • Switching Capacity: 176 Gbps, ensuring efficient data handling.
  • Packet Forwarding Rate: Up to 130.9 Mpps, facilitating smooth data transmission.
  • MAC Address Table Size: Supports up to 16,000 MAC addresses.
  • Jumbo Frame Support: Up to 9 KB, enhancing performance for large data transfers.
• Advanced Management Features:
  • Supports essential Layer 2 features such as VLANs (802.1Q), IGMP Snooping for multicast traffic management, and QoS (Quality of Service) for prioritizing critical applications.
  • Static Routing capability allows for efficient traffic management within the network.
  • Managed through a web interface, CLI, and SNMP for comprehensive control and monitoring.
• Security Features:
  • Comprehensive security options including Access Control Lists (ACLs), DHCP Snooping, and Storm Control to protect the network from unauthorized access and threats.
• User-Friendly Design:
  • Equipped with three fans for effective cooling while maintaining quiet operation.
  • Rack-mountable design with included mounting kits for easy installation in standard racks.

Technical Specifications

• Model: TP-Link TL-SG3452XP
• Ports:
  • 48 x Gigabit RJ45 PoE+ ports
  • 4 x 10G SFP+ slots
• Power Supply:
  • Input: 100–240 VAC, 50/60 Hz
• Max Power Consumption:
  • Approximately 49.19 W (no powered device connected) and up to 635.7 W (with maximum load).
• Dimensions:
  • Approximately 440 x 330 x 44 mm (17.3 x 13.0 x 1.7 in)
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% RH, non-condensing

Applications

The TL-SG3452XP is particularly well-suited for:

• Powering IP cameras and wireless access points in surveillance systems.
• Connecting VoIP phones in office environments.
• Supporting high-bandwidth applications like video conferencing.
• Managing network traffic efficiently in small to medium-sized business networks.
